dBm to mW / mW to dBm Calculator

1. What is the dBm to mW / mW to dBm Calculator?

Definition: This calculator converts between decibels-milliwatts (dBm) and milliwatts (mW) using the formulas \( P(mW) = 10^{(dBm/10)} \) for dB to mW and \( dBm = 10 \log_{10}(P(mW)/1) \) for mW to dB.

Purpose: It is used in electronics, telecommunications, and RF engineering to switch between logarithmic (dBm) and linear (mW) power representations for system analysis and design.

2. How Does the Calculator Work?

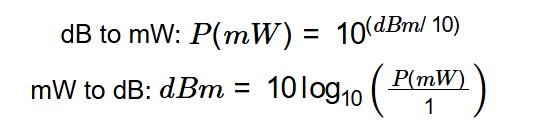

The calculator uses the following formulas:

dBm to mW: \( P(mW) = 10^{(dBm/10)} \)
mW to dBm: \( dBm = 10 \log_{10} \left( \frac{P(mW)}{1} \right) \)

Steps:

Select the conversion direction (dBm to mW or mW to dBm).
Enter the input value (dBm for dBm to mW, mW for mW to dBm).
Validate the input to ensure it is a valid number (non-negative for mW).
Calculate the result using the appropriate formula.
Format the result in scientific notation if the absolute value is less than 0.0001, otherwise with 4 decimal places.
Display the result with the appropriate unit (mW or dBm).

3. Importance of dB to mW / mW to dB Conversion

Converting between dBm and mW is crucial for:

Power Measurement: Understanding and comparing power levels in linear and logarithmic scales.
System Design: Facilitating accurate power calculations in amplifiers, transmitters, and receivers.
Standardization: Aligning with industry standards that use dBm for signal strength and mW for hardware specifications.

4. Using the Calculator

Example 1 (Converting 0 dBm to mW):

Calculate: dB to mW;
dBm: 0;
Power: \( P(mW) = 10^{(0/10)} = 10^0 = 1 \, \text{mW} \);
Result: \( 1.0000 \, \text{mW} \).

Example 2 (Converting 10 mW to dBm):

Calculate: mW to dB;
mW: 10;
dBm: \( dBm = 10 \log_{10} \left( \frac{10}{1} \right) = 10 \log_{10} (10) = 10 \times 1 = 10.0000 \, \text{dBm} \);

Example 3 (Converting -40 dBm to mW):

Calculate: dB to mW;
dBm: -40;
Power: \( P(mW) = 10^{(-40/10)} = 10^{-4} = 0.0001 \, \text{mW} \);
Result: \( 1.0000 \times 10^{-4} \, \text{mW} \) (since < 0.0001).

5. Frequently Asked Questions (FAQ)

Q: What does dBm represent?
A: dBm is a unit of power level expressed in decibels relative to 1 milliwatt, widely used in telecommunications and RF engineering.

Q: Why is the formula different for each direction?
A: The dB to mW formula (\( 10^{(dBm/10)} \)) is the inverse of the mW to dB formula (\( 10 \log_{10}(P(mW)/1) \)), reflecting the logarithmic-to-linear and linear-to-logarithmic transformations.

Q: Can mW be negative?
A: No, mW values must be non-negative as they represent power, but dBm can be negative, indicating power levels below 1 mW.
