1. What is a Pipe Velocity Calculator?
Definition: This calculator determines the velocity of a fluid flowing through a circular pipe, given the volume flow rate and the pipe's internal diameter.
Purpose: It is used in engineering to design and analyze piping systems, ensuring fluid velocities are within safe limits to avoid noise, erosion, or excessive pressure loss.
2. How Does the Calculator Work?
The calculator uses the following formula:
\[

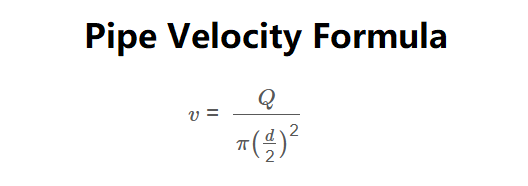

v = \frac{Q}{\pi \left(\frac{d}{2}\right)^2}
\]
Where:
- \(v\): Fluid velocity (ft/s, m/s, km/h, mph)
- \(Q\): Volume flow rate (gal/min, ft³/s, m³/s, L/s)
- \(d\): Pipe internal diameter (in, ft, mm, m)
Unit Conversions:
- Flow Rate: gal/min (1 gal/min = 0.002228 ft³/s), ft³/s, m³/s (1 m³/s = 35.3147 ft³/s), L/s (1 L/s = 0.0353147 ft³/s)
- Diameter: in (1 in = 0.0833333 ft), ft, mm (1 mm = 0.00328084 ft), m (1 m = 3.28084 ft)
- Velocity: ft/s, m/s (1 m/s = 0.3048 ft/s), km/h (1 km/h = 1.09728 ft/s), mph (1 mph = 0.681818 ft/s)
Steps:
- Enter the volume flow rate, selecting the unit (gal/min, ft³/s, m³/s, L/s).
- Enter the pipe internal diameter, selecting the unit (in, ft, mm, m).
- Convert inputs to base units (ft³/s for flow rate, ft for diameter).
- Calculate the fluid velocity using the formula.
- Convert the result to the selected velocity unit (ft/s, m/s, km/h, mph).
- Display the result, using scientific notation if the value is less than 0.0001 or greater than 10,000, otherwise formatted to 3 decimal places.
3. Importance of Pipe Velocity Calculation
Calculating fluid velocity is crucial for:
- Pipe System Design: Ensuring velocities are within recommended limits (e.g., 5–10 ft/s for water in PVC pipes) to prevent noise or pipe damage.
- Erosion Prevention: Avoiding excessive velocities that cause wear in materials like copper tubes.
- Efficiency: Optimizing flow to minimize pressure losses and energy costs in water, oil, or gas systems.
4. Using the Calculator
Examples:
- Example 1 (Steel Pipe): For a flow rate = 60 gal/min, diameter = 3.83 in (4-inch schedule 80 steel pipe):
- Flow in ft³/s: \(60 \times 0.002228 \approx 0.13368 \, \text{ft³/s}\)
- Diameter in ft: \(3.83 \times 0.0833333 \approx 0.319167 \, \text{ft}\)
- Area: \(\pi \times (0.319167 / 2)^2 \approx 0.080108 \, \text{ft}^2\)
- Velocity: \(0.13368 / 0.080108 \approx 1.669 \, \text{ft/s}\)
- In m/s: \(1.669 \times 0.3048 \approx 0.509 \, \text{m/s}\)
- Result: 1.669 ft/s or 0.509 m/s
- Example 2 (Water System): For a flow rate = 0.01 m³/s, diameter = 100 mm:
- Flow in ft³/s: \(0.01 \times 35.3147 \approx 0.353147 \, \text{ft³/s}\)
- Diameter in ft: \(100 \times 0.00328084 \approx 0.328084 \, \text{ft}\)
- Area: \(\pi \times (0.328084 / 2)^2 \approx 0.084629 \, \text{ft}^2\)
- Velocity: \(0.353147 / 0.084629 \approx 4.174 \, \text{ft/s}\)
- In m/s: \(4.174 \times 0.3048 \approx 1.272 \, \text{m/s}\)
- Result: 4.174 ft/s or 1.272 m/s
- Example 3 (Small Pipe): For a flow rate = 0.001 L/s, diameter = 10 mm:
- Flow in ft³/s: \(0.001 \times 0.0353147 \approx 0.0000353147 \, \text{ft³/s}\)
- Diameter in ft: \(10 \times 0.00328084 \approx 0.0328084 \, \text{ft}\)
- Area: \(\pi \times (0.0328084 / 2)^2 \approx 0.00084629 \, \text{ft}^2\)
- Velocity: \(0.0000353147 / 0.00084629 \approx 0.0417 \, \text{ft/s}\)
- In m/s: \(0.0417 \times 0.3048 \approx 0.0127 \, \text{m/s}\)
- Result: 0.042 ft/s or 0.013 m/s
5. Frequently Asked Questions (FAQ)
Q: What is the pipe velocity calculator?
A: It calculates the velocity of fluid in a pipe based on the volume flow rate and pipe diameter, useful for designing piping systems.
Q: Why is calculating pipe velocity important?
A: It ensures velocities are within safe limits to prevent pipe erosion, noise, or excessive pressure loss in systems like water or oil pipelines.
Q: Can the velocity be calculated in other units?
A: Yes, this calculator supports ft/s, m/s, km/h, and mph for velocity, with flexible input units for flow rate and diameter.
Q: Why are some results displayed in scientific notation?
A: Results less than 0.0001 or greater than 10,000 are shown in scientific notation to improve readability for very small or large velocities.
