1. What is a Trapezoidal Prism Area Calculator?

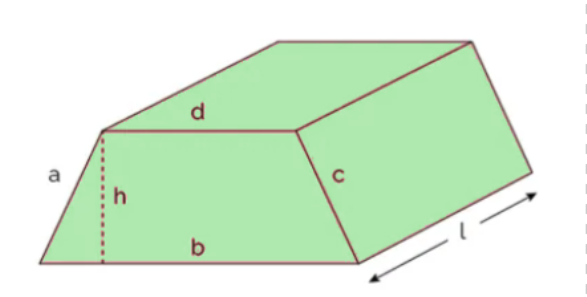

Definition: This calculator computes the lateral area and total surface area of a trapezoidal prism, a three-dimensional shape with two parallel trapezoidal bases connected by four rectangular faces. The lateral area includes only the rectangular faces, while the surface area includes both the lateral faces and the two trapezoidal bases.

Purpose: It aids in geometric calculations for applications in architecture, engineering, and education, such as determining material requirements for prism-shaped structures or analyzing surface properties.

2. How Does the Calculator Work?

The calculator uses the following formulas:

Lateral Area \( A_l \): \( A_l = \ell \times (a + b + c + d) \), where \( a, b, c, d \) are the sides of the trapezoidal base, and \( \ell \) is the prism’s length.
Surface Area \( A_s \): \( A_s = h \times (b + d) + \ell \times (a + b + c + d) \), where \( h \) is the height of the trapezoidal base (distance between parallel sides \( b \) and \( d \)).

Unit Conversions:

Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).

Steps:

Input the lengths of sides \( a, b, c, d \), length \( \ell \), and height \( h \), and select their units.
Validate inputs (must be positive).
Convert inputs to meters for calculations.
Compute the lateral area and surface area using the formulas above.
Convert outputs to the selected unit.
Format outputs to 4 decimal places or scientific notation for small values.

3. Importance of Trapezoidal Prism Area Calculations

Calculating the areas of a trapezoidal prism is essential for:

Geometry Education: Understanding three-dimensional shapes and their surface properties.
Architecture and Construction: Estimating materials needed for prism-shaped structures, like roofing or packaging.
Engineering: Analyzing surface properties for heat transfer or coating applications.

4. Using the Calculator

Examples:

Example 1: Sides \( a = 5 \, \text{cm}, b = 8 \, \text{cm}, c = 5 \, \text{cm}, d = 4 \, \text{cm} \), Length \( \ell = 12 \, \text{cm} \), Height \( h = 6 \, \text{cm} \)
- Convert: \( a = 0.05 \, \text{m}, b = 0.08 \, \text{m}, c = 0.05 \, \text{m}, d = 0.04 \, \text{m}, \ell = 0.12 \, \text{m}, h = 0.06 \, \text{m} \).
- Lateral Area: \( A_l = 0.12 \times (0.05 + 0.08 + 0.05 + 0.04) \approx 0.0264 \, \text{m}^2 = 264.0000 \, \text{cm}^2 \).
- Surface Area: \( A_s = 0.06 \times (0.08 + 0.04) + 0.0264 \approx 0.0336 \, \text{m}^2 = 336.0000 \, \text{cm}^2 \).
Example 2: Sides \( a = 3 \, \text{m}, b = 6 \, \text{m}, c = 3 \, \text{m}, d = 2 \, \text{m} \), Length \( \ell = 8 \, \text{m} \), Height \( h = 4 \, \text{m} \)
- Lateral Area: \( A_l = 8 \times (3 + 6 + 3 + 2) = 112 \, \text{m}^2 \).
- Surface Area: \( A_s = 4 \times (6 + 2) + 112 = 144 \, \text{m}^2 \).

5. Frequently Asked Questions (FAQ)

Q: What is a trapezoidal prism?
A: A trapezoidal prism is a three-dimensional shape with two parallel trapezoidal bases connected by four rectangular faces. The bases have one pair of parallel sides, and the lateral faces are rectangles.

Q: What is the difference between lateral area and surface area?
A: The lateral area includes only the areas of the four rectangular faces, while the surface area includes the lateral area plus the areas of the two trapezoidal bases.

Q: Why is the height \( h \) needed for the surface area but not the lateral area?
A: The height \( h \) is the distance between the parallel sides of the trapezoidal base, used to calculate the base area for the surface area. The lateral area depends only on the prism’s length \( \ell \) and the base perimeter.
