1. What is a Torus Surface Area Calculator?

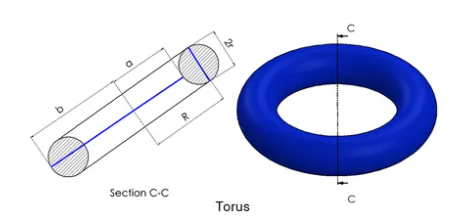

Definition: This calculator computes the outer radius ($b$), radius of revolution ($R$), and surface area of a torus, given the inner radius ($a$) and tube radius ($r$). A torus is a doughnut-shaped three-dimensional object formed by revolving a circle of radius $r$ around an axis at distance $R$ from the circle’s center.

Purpose: It aids in geometry education, engineering, and design by calculating surface areas for toroidal structures, such as tires, rings, or pipelines.

2. How Does the Calculator Work?

The calculator uses the following formulas for a torus with inner radius $a$ and tube radius $r$:

• Radius of revolution: $R=a+r$.
• Outer radius: $b=a+2r$.
• Surface area: $A=4{\pi }^2(a+r)r$.

Unit Conversions:

• Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
• Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).

Steps:

• Input the inner radius $a$ and tube radius $r$, and select their units.
• Validate inputs (must be positive, and $a>r$).
• Convert inputs to meters for calculations.
• Compute the outer radius, radius of revolution, and surface area using the formulas above.
• Convert outputs to the selected units.
• Format outputs to 4 decimal places or scientific notation for small values.

3. Importance of Torus Surface Area Calculations

Calculating torus surface areas is essential for:

• Geometry Education: Understanding complex three-dimensional shapes and their properties.
• Engineering and Manufacturing: Designing toroidal objects like tires, O-rings, or magnetic cores.
• Physics and Material Science: Analyzing surface properties for coating or heat transfer in toroidal systems.

4. Using the Calculator

Examples:

• Example 1: Inner radius $a=5\text{cm}$, Tube radius $r=2\text{cm}$
  Convert: $a=0.05\text{m}$, $r=0.02\text{m}$.
  Radius of revolution: $R=0.05+0.02=0.07\text{m}=7.0000\text{cm}$.
  Outer radius: $b=0.05+2\times 0.02=0.09\text{m}=9.0000\text{cm}$.
  Surface area: $A=4{\pi }^2\times 0.07\times 0.02\approx 0.0553{\text{m}}^2=552.9149{\text{cm}}^2$.
• Example 2: Inner radius $a=3\text{m}$, Tube radius $r=1\text{m}$
  Radius of revolution: $R=3+1=4\text{m}$.
  Outer radius: $b=3+2\times 1=5\text{m}$.
  Surface area: $A=4{\pi }^2\times 4\times 1\approx 157.9137{\text{m}}^2$.

5. Frequently Asked Questions (FAQ)

Q: What is a torus?
A: A torus is a three-dimensional shape resembling a doughnut, formed by revolving a circle around an axis outside the circle.

Q: Why must the inner radius be greater than the tube radius?
A: If $a\le r$, the torus would self-intersect or degenerate, resulting in an invalid shape.

Q: What is the radius of revolution?
A: It is the distance from the center of the torus to the center of the tube, calculated as $R=a+r$.
