Tetrahedron Volume Calculator

Height of tetrahedron \( H \):

Volume of tetrahedron \( V \):

Surface area of tetrahedron \( A \):

Surface-to-volume ratio \( SVR \):

Insphere radius \( Ri \):

Midsphere radius \( Rk \):

Circumsphere radius \( Ru \):

1. What is a Tetrahedron Volume Calculator?

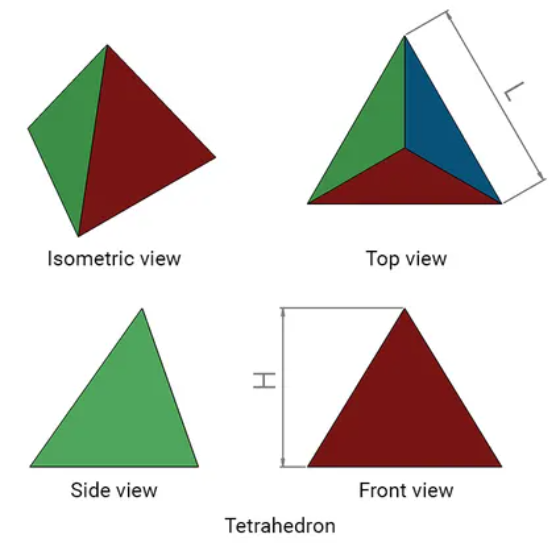

Definition: This calculator computes the geometric properties of a regular tetrahedron, including its height (\( H \)), volume (\( V \)), surface area (\( A \)), surface-to-volume ratio (\( SVR \)), insphere radius (\( Ri \)), midsphere radius (\( Rk \)), and circumsphere radius (\( Ru \)), given the edge length (\( L \)). A regular tetrahedron is a three-dimensional shape with four equilateral triangular faces.

Purpose: It aids in geometry education, engineering, and design by providing key measurements for tetrahedral structures, such as in crystallography, architecture, or computer graphics.

2. How Does the Calculator Work?

The calculator uses the following formulas for a regular tetrahedron with edge length \( L \):

Height: \( H = \sqrt{\frac{2}{3}} L \).
Volume: \( V = \frac{L^3}{6 \sqrt{2}} \).
Surface area: \( A = \sqrt{3} L^2 \).
Surface-to-volume ratio: \( \frac{A}{V} = \frac{6 \sqrt{6}}{L} \).
Insphere radius: \( Ri = \frac{L}{2 \sqrt{6}} \).
Midsphere radius: \( Rk = \frac{L}{\sqrt{8}} \).
Circumsphere radius: \( Ru = \sqrt{\frac{3}{8}} L \).

Unit Conversions:

Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).
Volume Units: m³, cm³ (1 m³ = 1000000 cm³), mm³ (1 m³ = 1000000000 mm³), in³ (1 m³ = 61023.7441 in³), ft³ (1 m³ = 35.3147 ft³), yd³ (1 m³ = 1.30795 yd³).
Inverse Length Units: 1/m, 1/cm (1/m = 100/cm), 1/mm (1/m = 1000/mm), 1/in (1/m = 39.3701/in), 1/ft (1/m = 3.28084/ft), 1/yd (1/m = 1.09361/yd).

Steps:

Input the edge length \( L \) and select its unit.
Validate the input (must be positive).
Convert the input to meters for calculations.
Compute the height, volume, surface area, surface-to-volume ratio, insphere radius, midsphere radius, and circumsphere radius using the formulas above.
Convert outputs to the selected units.
Format outputs to 4 decimal places or scientific notation for small values.

3. Importance of Tetrahedron Calculations

Calculating tetrahedron properties is essential for:

Geometry Education: Understanding three-dimensional shapes and their properties.
Crystallography: Analyzing tetrahedral molecular structures in chemistry.
Engineering and Architecture: Designing stable tetrahedral frameworks or components.
Computer Graphics: Modeling tetrahedral meshes for simulations or visualizations.

4. Using the Calculator

Examples:

Example 1: Edge length \( L = 6 \, \text{cm} \)
Convert: \( L = 0.06 \, \text{m} \).
Height: \( H = \sqrt{\frac{2}{3}} \times 0.06 \approx 0.04899 \, \text{m} = 4.8990 \, \text{cm} \).
Volume: \( V = \frac{0.06^3}{6 \sqrt{2}} \approx 0.00002546 \, \text{m}^3 = 25.4558 \, \text{cm}^3 \).
Surface area: \( A = \sqrt{3} \times 0.06^2 \approx 0.006235 \, \text{m}^2 = 62.3538 \, \text{cm}^2 \).
Surface-to-volume ratio: \( \frac{A}{V} = \frac{6 \sqrt{6}}{0.06} \approx 244.9489 \, \text{1/m} = 2.4495 \, \text{1/cm} \).
Insphere radius: \( Ri = \frac{0.06}{2 \sqrt{6}} \approx 0.01225 \, \text{m} = 1.2247 \, \text{cm} \).
Midsphere radius: \( Rk = \frac{0.06}{\sqrt{8}} \approx 0.02121 \, \text{m} = 2.1213 \, \text{cm} \).
Circumsphere radius: \( Ru = \sqrt{\frac{3}{8}} \times 0.06 \approx 0.03674 \, \text{m} = 3.6742 \, \text{cm} \).
Example 2: Edge length \( L = 2 \, \text{m} \)
Height: \( H = \sqrt{\frac{2}{3}} \times 2 \approx 1.63299 \, \text{m} \).
Volume: \( V = \frac{2^3}{6 \sqrt{2}} \approx 0.94281 \, \text{m}^3 \).
Surface area: \( A = \sqrt{3} \times 2^2 \approx 6.92820 \, \text{m}^2 \).
Surface-to-volume ratio: \( \frac{A}{V} = \frac{6 \sqrt{6}}{2} \approx 7.34847 \, \text{1/m} \).
Insphere radius: \( Ri = \frac{2}{2 \sqrt{6}} \approx 0.40825 \, \text{m} \).
Midsphere radius: \( Rk = \frac{2}{\sqrt{8}} \approx 0.70711 \, \text{m} \).
Circumsphere radius: \( Ru = \sqrt{\frac{3}{8}} \times 2 \approx 1.22474 \, \text{m} \).

5. Frequently Asked Questions (FAQ)

Q: What is a regular tetrahedron?
A: A regular tetrahedron is a polyhedron with four equilateral triangular faces, all edges equal, and all angles congruent.

Q: What are the insphere, midsphere, and circumsphere radii?
A: The insphere radius is for a sphere tangent to all faces, the midsphere radius is for a sphere tangent to all edges, and the circumsphere radius is for a sphere passing through all vertices.

Q: Why is the surface-to-volume ratio important?
A: It indicates how much surface area is available per unit volume, critical in applications like material efficiency, heat transfer, or structural design.
