1. What is a Surface Area Calculator?

Definition: This calculator computes the surface area for various three-dimensional shapes, including spheres, cylinders, cubes, cones, rectangular prisms, triangular prisms, pyramids (with triangular, rectangular, pentagonal, or hexagonal bases), hemispheres, capsules, and spherical caps. Surface area is the total area covering the exterior of a shape.

Purpose: It aids in geometry education, engineering, and design by calculating surface areas for applications like material estimation, coating requirements, or structural analysis.

2. How Does the Calculator Work?

The calculator uses the following formulas for each shape:

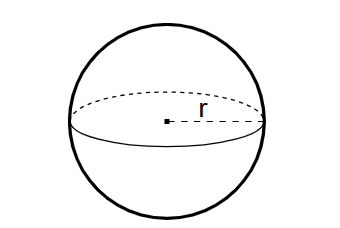

• Sphere: \( A = 4 \pi r^2 \).
• Cylinder:
  • Total: \( A = 2 \pi r (r + h) \).
  • Base: \( A_b = \pi r^2 \).
  • Lateral: \( A_l = 2 \pi r h \).
• Cube: \( A = 6 a^2 \).
• Cone:
  • Slant height: \( l = \sqrt{r^2 + h^2} \).
  • Total: \( A = \pi r (r + l) \).
  • Base: \( A_b = \pi r^2 \).
  • Lateral: \( A_l = \pi r l \).
• Rectangular Prism (Box): \( A = 2 (w l + w h + l h) \).
• Triangular Prism:
  • Base: \( A_b = \frac{1}{4} \sqrt{(a + b + c)(-a + b + c)(a - b + c)(a + b - c)} \).
  • Lateral: \( A_l = (a + b + c) h \).
  • Total: \( A = 2 A_b + A_l \).
• Pyramids:
  • Equilateral Triangle: Base: \( A_b = \frac{\sqrt{3}}{4} a^2 \), Slant height: \( l = \sqrt{\left(\frac{a}{2}\right)^2 + h^2} \), Lateral: \( A_l = \frac{3}{2} a l \), Total: \( A = A_b + A_l \).
  • Rectangle: Base: \( A_b = a \times b \), Lateral: \( A_l = b \sqrt{\left(\frac{a}{2}\right)^2 + h^2} + a \sqrt{\left(\frac{b}{2}\right)^2 + h^2} \), Total: \( A = A_b + A_l \).
  • Pentagon: Base: \( A_b = \frac{5}{4} a^2 \cot\left(\frac{\pi}{5}\right) \), Slant height: \( l = \sqrt{\left(\frac{a}{2 \tan(\pi/5)}\right)^2 + h^2} \), Lateral: \( A_l = \frac{5}{2} a l \), Total: \( A = A_b + A_l \).
  • Hexagon: Base: \( A_b = \frac{3 \sqrt{3}}{2} a^2 \), Slant height: \( l = \sqrt{\left(\frac{a}{2 \tan(\pi/6)}\right)^2 + h^2} \), Lateral: \( A_l = 3 a l \), Total: \( A = A_b + A_l \).
• Hemisphere:
  • Total: \( A = 3 \pi r^2 \).
  • Base: \( A_b = \pi r^2 \).
  • Lateral: \( A_l = 2 \pi r^2 \).
• Capsule: \( A = 2 \pi r (2r + h) \).
• Spherical Cap:
  • Radius: \( r = \frac{a^2 + h^2}{2h} \).
  • Total: \( A = 2 \pi r h \).
  • Base: \( A_b = \pi a^2 \).
  • Lateral: \( A_l = 2 \pi r h \).

Unit Conversions:

• Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
• Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).

Steps:

• Select the shape and, if applicable, the pyramid base type.
• Input the required dimensions and select their units.
• Validate inputs (must be positive and satisfy geometric constraints).
• Convert inputs to meters for calculations.
• Compute the surface areas and other properties using the formulas above.
• Convert outputs to the selected units and format to 4 decimal places or scientific notation for small values.

3. Importance of Surface Area Calculations

Calculating surface areas is essential for:

• Geometry Education: Understanding the properties of three-dimensional shapes.
• Engineering and Architecture: Estimating materials for structures like tanks, buildings, or containers.
• Physics and Material Science: Analyzing surface properties for coating, heat transfer, or packaging.

4. Using the Calculator

Examples:

• Sphere: Radius \( r = 5 \, \text{cm} \)
  Surface area: \( A = 4 \pi \times 0.05^2 \approx 0.0314 \, \text{m}^2 = 314.1593 \, \text{cm}^2 \).
• Cylinder: Radius \( r = 3 \, \text{cm} \), Height \( h = 10 \, \text{cm} \)
  Total: \( A = 2 \pi \times 0.03 \times (0.03 + 0.1) \approx 0.0245 \, \text{m}^2 = 245.0440 \, \text{cm}^2 \).
  Base: \( A_b = \pi \times 0.03^2 \approx 0.0028 \, \text{m}^2 = 28.2743 \, \text{cm}^2 \).
  Lateral: \( A_l = 2 \pi \times 0.03 \times 0.1 \approx 0.0188 \, \text{m}^2 = 188.4956 \, \text{cm}^2 \).
• Cube: Side \( a = 4 \, \text{cm} \)
  Surface area: \( A = 6 \times 0.04^2 \approx 0.0096 \, \text{m}^2 = 96.0000 \, \text{cm}^2 \).
• Pyramid (Equilateral Triangle): Side \( a = 6 \, \text{cm} \), Height \( h = 8 \, \text{cm} \)
  Base: \( A_b = \frac{\sqrt{3}}{4} \times 0.06^2 \approx 0.0016 \, \text{m}^2 = 15.5885 \, \text{cm}^2 \).
  Slant height: \( l = \sqrt{\left(\frac{0.06}{2}\right)^2 + 0.08^2} \approx 0.0854 \, \text{m} = 8.5440 \, \text{cm} \).
  Lateral: \( A_l = \frac{3}{2} \times 0.06 \times 0.0854 \approx 0.0077 \, \text{m}^2 = 76.8963 \, \text{cm}^2 \).
  Total: \( A \approx 0.0093 \, \text{m}^2 = 92.4848 \, \text{cm}^2 \).

5. Frequently Asked Questions (FAQ)

Q: What is surface area?
A: Surface area is the total area covering the exterior of a three-dimensional shape, including bases and lateral surfaces.

Q: Why are there different types of surface areas?
A: Shapes like cylinders or cones have distinct base and lateral surfaces, which are useful for specific applications (e.g., coating only the lateral surface).

Q: How is the triangular prism’s base area calculated?
A: The base area uses Heron’s formula, requiring the side lengths to form a valid triangle, ensuring accurate area calculation.
