Sector Area Calculator

Diameter \( 2r \):

Sector Area \( A \):

Arc Length \( L \):

Chord Length \( c \):

1. What is a Sector Area Calculator?

Definition: This calculator computes the diameter, sector area, arc length, and chord length of a circle sector given the central angle and radius.

Purpose: It is used in geometry to determine properties of circular sectors, useful in mathematics, engineering, and design.

2. How Does the Calculator Work?

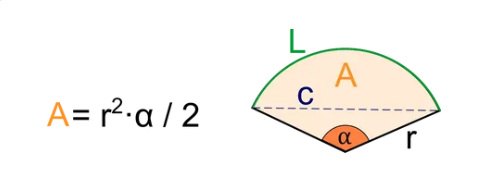

The calculator uses the following formulas for a circle sector:

Diameter \( 2r \): \( 2r = 2 \times r \)
Sector Area \( A \): \( A = \frac{r^2 \times \alpha}{2} \), where \( \alpha \) is in radians
Arc Length \( L \): \( L = r \times \alpha \), where \( \alpha \) is in radians
Chord Length \( c \): \( c = 2 \times r \times \sin\left(\frac{\alpha}{2}\right) \), where \( \alpha \) is in radians

Unit Conversions:

Input Dimensions: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd)
Output Dimensions: m, cm, mm, in, ft, yd
Output Area: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²)

Steps:

Input the central angle \( \alpha \) in degrees and the radius \( r \) with its unit.
Convert the angle to radians and the radius to meters for calculation.
Validate the inputs (e.g., angle between 0 and 360 degrees, radius positive).
Calculate the diameter, sector area, arc length, and chord length.
Display the results, formatted to 4 decimal places or in scientific notation for very small values, with unit conversion options.

3. Importance of Sector Area Calculations

Calculating sector area and related properties is crucial for:

Geometry Education: Understanding circular sectors and their properties.
Engineering Design: Designing curved structures like arches or wheels.
Construction: Measuring material needs for circular segments.

4. Using the Calculator

Examples:

Example 1: For \( \alpha = 90^\circ \), \( r = 2 \, \text{cm} \):
- Convert: \( r = 0.02 \, \text{m} \), \( \alpha = \frac{\pi}{2} \, \text{radians} \)
- Diameter \( 2r \): \( 2r = 2 \times 0.02 = 0.04 \, \text{m} \)
- Sector Area \( A \): \( A = \frac{(0.02)^2 \times \frac{\pi}{2}}{2} \approx 0.000314 \, \text{m}^2 \)
- Arc Length \( L \): \( L = 0.02 \times \frac{\pi}{2} \approx 0.0314 \, \text{m} \)
- Chord Length \( c \): \( c = 2 \times 0.02 \times \sin\left(\frac{\frac{\pi}{2}}{2}\right) \approx 0.0283 \, \text{m} \)
- Convert: \( 2r = 4 \, \text{cm} \), \( A \approx 3.14 \, \text{cm}^2 \), \( L \approx 3.14 \, \text{cm} \), \( c \approx 2.83 \, \text{cm} \)
Example 2: For \( \alpha = 180^\circ \), \( r = 1 \, \text{m} \):
- Convert: \( \alpha = \pi \, \text{radians} \)
- Diameter \( 2r \): \( 2r = 2 \times 1 = 2 \, \text{m} \)
- Sector Area \( A \): \( A = \frac{(1)^2 \times \pi}{2} \approx 1.5708 \, \text{m}^2 \)
- Arc Length \( L \): \( L = 1 \times \pi \approx 3.1416 \, \text{m} \)
- Chord Length \( c \): \( c = 2 \times 1 \times \sin\left(\frac{\pi}{2}\right) = 2 \, \text{m} \)

5. Frequently Asked Questions (FAQ)

Q: What is the sector area of a circle?
A: The sector area is the area of a portion of a circle defined by a central angle, calculated as \( A = \frac{r^2 \times \alpha}{2} \), where \( \alpha \) is in radians.

Q: Why is calculating sector area important?
A: It is essential for designing and analyzing curved structures in engineering, architecture, and various mathematical applications.
