Right Cylinder Calculator - Find A_b, A

Right Cylinder Calculator - Find A_b, A_l, A, V

Base surface area \( A_b \):

Lateral surface area \( A_l \):

Total surface area \( A \):

Volume \( V \):

1. What is a Right Cylinder Calculator?

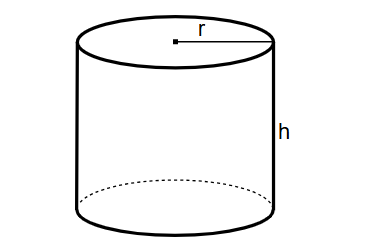

Definition: This calculator computes the geometric properties of a right circular cylinder, including the base surface area (\( A_b \)), lateral surface area (\( A_l \)), total surface area (\( A \)), and volume (\( V \)), given the radius (\( r \)) and height (\( h \)). A right circular cylinder is a three-dimensional shape with two parallel circular bases connected by a curved surface, where the bases are perpendicular to the cylinder’s axis.

Purpose: It supports calculations for geometry education, engineering, and design, such as determining material requirements for cylindrical containers or storage capacities.

2. How Does the Calculator Work?

The calculator uses the following formulas:

Base surface area \( A_b \): \( A_b = \pi r^2 \).
Lateral surface area \( A_l \): \( A_l = 2 \pi r h \).
Total surface area \( A \): \( A = 2 \pi r (r + h) \).
Volume \( V \): \( V = \pi r^2 h \).

Unit Conversions:

Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).
Volume Units: m³, cm³ (1 m³ = 1000000 cm³), mm³ (1 m³ = 1000000000 mm³), in³ (1 m³ = 61023.7441 in³), ft³ (1 m³ = 35.3147 ft³), yd³ (1 m³ = 1.30795 yd³).

Steps:

Input the radius \( r \) and height \( h \), and select their units.
Validate inputs (must be positive).
Convert inputs to meters for calculations.
Compute the base surface area, lateral surface area, total surface area, and volume using the formulas above.
Convert outputs to the selected units.
Format outputs to 4 decimal places or scientific notation for small values.

3. Importance of Cylinder Calculations

Calculating cylinder properties is essential for:

Geometry Education: Understanding three-dimensional shapes and their properties.
Engineering and Manufacturing: Designing cylindrical objects like pipes, tanks, or containers.
Physics and Material Science: Analyzing volume for storage or surface area for coating and heat transfer.

4. Using the Calculator

Examples:

Example 1: Radius \( r = 4 \, \text{cm} \), Height \( h = 10 \, \text{cm} \)
- Convert: \( r = 0.04 \, \text{m} \), \( h = 0.1 \, \text{m} \).
- Base surface area: \( A_b = \pi \times 0.04^2 \approx 0.0050 \, \text{m}^2 = 50.2655 \, \text{cm}^2 \).
- Lateral surface area: \( A_l = 2 \pi \times 0.04 \times 0.1 \approx 0.0251 \, \text{m}^2 = 251.3274 \, \text{cm}^2 \).
- Total surface area: \( A = 2 \pi \times 0.04 \times (0.04 + 0.1) \approx 0.0352 \, \text{m}^2 = 351.8584 \, \text{cm}^2 \).
- Volume: \( V = \pi \times 0.04^2 \times 0.1 \approx 0.0005027 \, \text{m}^3 = 502.6548 \, \text{cm}^3 \).
Example 2: Radius \( r = 3 \, \text{m} \), Height \( h = 5 \, \text{m} \)
- Base surface area: \( A_b = \pi \times 3^2 \approx 28.2743 \, \text{m}^2 \).
- Lateral surface area: \( A_l = 2 \pi \times 3 \times 5 \approx 94.2478 \, \text{m}^2 \).
- Total surface area: \( A = 2 \pi \times 3 \times (3 + 5) \approx 150.7964 \, \text{m}^2 \).
- Volume: \( V = \pi \times 3^2 \times 5 \approx 141.3717 \, \text{m}^3 \).

5. Frequently Asked Questions (FAQ)

Q: What is a right circular cylinder?
A: A right circular cylinder is a three-dimensional shape with two parallel circular bases of equal radius, connected by a curved surface, where the bases are perpendicular to the cylinder’s axis.

Q: What is the difference between lateral and total surface area?
A: The lateral surface area includes only the curved surface, while the total surface area includes the lateral surface plus the areas of the two circular bases.

Q: Why is the volume formula \( \pi r^2 h \)?
A: The volume is the area of the base (\( \pi r^2 \)) multiplied by the height (\( h \)), representing the space enclosed by the cylinder.
