Polygon Perimeter and Area Calculator with Points

1. What is the Polygon Perimeter and Area Calculator with Points?

Definition: The Polygon Perimeter and Area Calculator with Points computes the perimeter and area of a simple polygon (convex or concave) based on the x and y coordinates of its vertices, using the distance formula for perimeter and the shoelace formula for area.

Purpose: Assists in calculating geometric properties for applications like construction, landscaping, and design, providing both boundary length and enclosed space with customizable units.

2. How Does the Calculator Work?

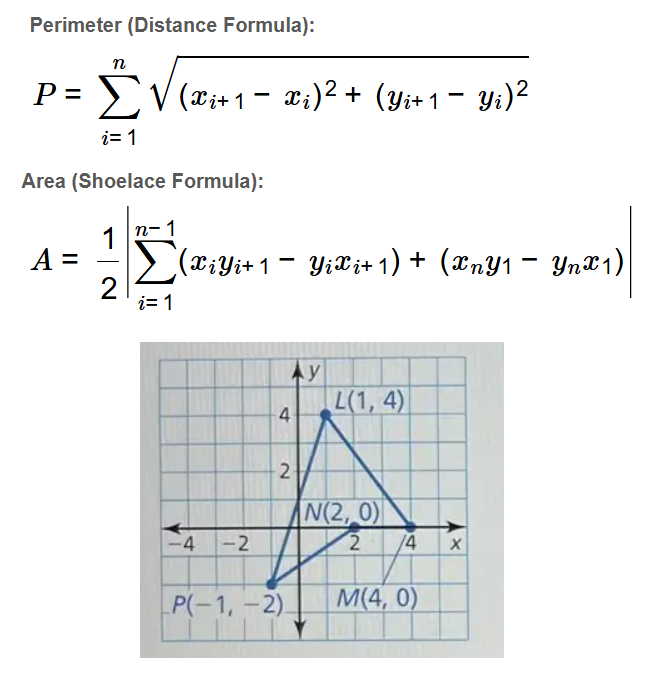

The calculator uses the following formulas:

Perimeter (Distance Formula):

\[ P = \sum_{i=1}^{n} \sqrt{(x_{i+1} - x_i)^2 + (y_{i+1} - y_i)^2} \]

Where:

\( (x_i, y_i) \): Coordinates of the \( i \)-th vertex.
\( (x_{i+1}, y_{i+1}) \): Next vertex (with \( (x_{n+1}, y_{n+1}) = (x_1, y_1) \)).
\( n \): Number of vertices.

Area (Shoelace Formula):

\[ A = \frac{1}{2} \left| \sum_{i=1}^{n-1} (x_i y_{i+1} - y_i x_{i+1}) + (x_n y_1 - y_n x_1) \right| \]

Where:

\( (x_i, y_i) \): Coordinates of the \( i \)-th vertex.
\( n \): Number of vertices.

Steps:

Step 1: Input Number of Vertices. Enter a number between 3 and 25 (defaults to 3).
Step 2: Enter Coordinates. Provide x and y values for each vertex in order.
Step 3: Set Displayed Decimal Digits. Choose precision (0-6 decimal places).
Step 4: Select Unit. Choose from cm, m, inch, feet, or yard.
Step 5: Calculate. Compute perimeter and area with unit conversion.

3. Importance of Polygon Perimeter and Area Calculation

Calculating perimeter and area is crucial for:

Construction: Estimating materials for boundaries and enclosed spaces.
Landscaping: Planning edging and garden areas.
Design: Defining outlines and spaces in architectural plans.

4. Using the Calculator

Example 1: Quadrilateral (0,0), (4,0), (4,3), (0,3) in meters:

Step 1: Number of vertices = 4.
Step 2: Coordinates = (0,0), (4,0), (4,3), (0,3).
Step 3: Perimeter = 14 .
Step 4: Area = \( \frac{1}{2} | (0 \cdot 0 - 0 \cdot 4) + (4 \cdot 3 - 0 \cdot 4) + (4 \cdot 3 - 3 \cdot 0) + (0 \cdot 0 - 3 \cdot 0) | = 12 \).
Result: Perimeter = 14 m, Area = 12 square m.

5. Frequently Asked Questions (FAQ)

Q: What is the shoelace formula?
A: The shoelace formula calculates the area by summing coordinate products and dividing by 2.

Q: Must vertices be in order?
A: Yes, enter vertices in clockwise or counterclockwise order for accurate results.

Q: Can it handle concave polygons?
A: Yes, for simple (non-self-intersecting) concave polygons.
