1. What is a Cylinder Surface Area Calculator?

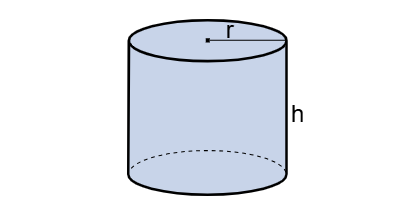

Definition: This calculator computes the volume, bases area (\( A_b \)), lateral area (\( A_l \)), and total surface area of a right circular cylinder, given the base radius (\( r \)) and height (\( h \)). A right circular cylinder is a three-dimensional shape with two parallel circular bases connected by a curved surface, where the axis is perpendicular to the bases.

Purpose: It aids in geometry education, engineering, and design by calculating key parameters for applications like manufacturing (e.g., cylindrical containers), architecture (e.g., columns), and material estimation.

2. How Does the Calculator Work?

The calculator takes the base radius (\( r \)) and height (\( h \)) with independently selected units (m, cm, mm, in, ft, yd) and computes:

• Volume:
  • Formula: \( V = \pi r^2 h \).
  • The space occupied by the cylinder, calculated as the base area times the height.
• Bases Area (\( A_b \)):
  • Formula: \( A_b = 2 \pi r^2 \).
  • The combined area of the two circular bases.
• Lateral Area (\( A_l \)):
  • Formula: \( A_l = 2 \pi r h \).
  • The area of the curved surface, calculated as the circumference of the base times the height.
• Total Area:
  • Formula: \( A = A_b + A_l = 2 \pi r^2 + 2 \pi r h \).
  • The sum of the bases area and the lateral area.

Unit Conversions:

• Length Units: m, cm (1 m = 100 cm), mm (1 m = 1000 mm), in (1 m = 39.3701 in), ft (1 m = 3.28084 ft), yd (1 m = 1.09361 yd).
• Volume Units: m³, cm³ (1 m³ = 1000000 cm³), mm³ (1 m³ = 1000000000 mm³), in³ (1 m³ = 61023.7441 in³), ft³ (1 m³ = 35.3147 ft³), yd³ (1 m³ = 1.30795 yd³).
• Area Units: m², cm² (1 m² = 10000 cm²), mm² (1 m² = 1000000 mm²), in² (1 m² = 1550.0031 in²), ft² (1 m² = 10.7639 ft²), yd² (1 m² = 1.19599 yd²).

Steps:

• Input the base radius (\( r \)) and height (\( h \)) with their respective units.
• Validate inputs (\( r > 0 \), \( h > 0 \)).
• Convert inputs to meters for calculations.
• Compute volume, bases area, lateral area, and total area.
• Convert each result to its independently selected output unit and format to 4 decimal places or scientific notation for small values.

3. Importance of Cylinder Surface Area Calculations

Calculating cylinder parameters is crucial for:

• Geometry Education: Understanding the properties of three-dimensional shapes and their surface areas.
• Engineering and Manufacturing: Designing cylindrical objects like pipes, tanks, or cans, and estimating material needs.
• Architecture: Creating structures with cylindrical elements, such as columns or silos.

4. Using the Calculator

Examples:

• Example 1: Radius \( r = 5 \, \text{cm} \), Height \( h = 10 \, \text{cm} \), Output units: cm³, cm², cm², cm²
  Convert: \( r = 0.05 \, \text{m} \), \( h = 0.1 \, \text{m} \).
  Volume: \( V = \pi \times 0.05^2 \times 0.1 \approx 0.0007854 \, \text{m}^3 = 785.3982 \, \text{cm}^3 \).
  Bases Area: \( A_b = 2 \pi \times 0.05^2 \approx 0.0157 \, \text{m}^2 = 157.0796 \, \text{cm}^2 \).
  Lateral Area: \( A_l = 2 \pi \times 0.05 \times 0.1 \approx 0.0314 \, \text{m}^2 = 314.1593 \, \text{cm}^2 \).
  Total Area: \( A = 0.0157 + 0.0314 \approx 0.0471 \, \text{m}^2 = 471.2389 \, \text{cm}^2 \).
• Example 2: Radius \( r = 2 \, \text{m} \), Height \( h = 3 \, \text{m} \), Output units: m³, ft², m², in²
  Volume: \( V = \pi \times 2^2 \times 3 \approx 37.6991 \, \text{m}^3 \).
  Bases Area: \( A_b = 2 \pi \times 2^2 \approx 25.1327 \, \text{m}^2 = 270.1932 \, \text{ft}^2 \).
  Lateral Area: \( A_l = 2 \pi \times 2 \times 3 \approx 37.6991 \, \text{m}^2 \).
  Total Area: \( A = 25.1327 + 37.6991 \approx 62.8319 \, \text{m}^2 = 97402.2605 \, \text{in}^2 \).
• Example 3: Radius \( r = 8 \, \text{in} \), Height \( h = 20 \, \text{cm} \), Output units: in³, mm², in², mm²
  Convert: \( r = 0.2032 \, \text{m} \), \( h = 0.2 \, \text{m} \).
  Volume: \( V \approx 0.0258 \, \text{m}^3 = 1577.3545 \, \text{in}^3 \).
  Bases Area: \( A_b \approx 0.2597 \, \text{m}^2 = 259703.1875 \, \text{mm}^2 \).
  Lateral Area: \( A_l \approx 0.2551 \, \text{m}^2 = 395.3485 \, \text{in}^2 \).
  Total Area: \( A \approx 0.5148 \, \text{m}^2 = 514803.1875 \, \text{mm}^2 \).

5. Frequently Asked Questions (FAQ)

Q: What is a right circular cylinder?
A: A right circular cylinder is a three-dimensional shape with two parallel circular bases connected by a curved surface, where the axis from the center of one base to the other is perpendicular to the bases.

Q: Why are there separate bases and lateral areas?
A: The bases area accounts for the two circular ends of the cylinder, while the lateral area covers the curved surface around the sides. Both are needed to compute the total surface area.

Q: Can I use different units for inputs and outputs?
A: Yes, the calculator allows independent unit selection for radius, height, volume, bases area, lateral area, and total area, enabling flexible conversions (e.g., radius in meters, height in centimeters, volume in cubic inches).
