Cubic Feet of a Cylinder Calculator

1. What is a Cubic Feet of a Cylinder Calculator?

Definition: This calculator computes the diameter and volume of a cylinder in cubic feet, given the height \( h \) and radius \( r \). A cylinder is a three-dimensional shape with two parallel circular bases connected by a curved surface. The calculator allows inputs in various units (feet, inches, yards, cm, m), defaulting to feet, and provides the volume in cubic feet with options to convert to other units (cubic inches, cubic yards, cubic cm, cubic m).

Purpose: It aids in practical applications by calculating the volume of cylindrical objects, useful in fields like construction, engineering, and storage for determining the capacity of tanks, pipes, or containers.

2. How Does the Calculator Work?

The calculator uses the following formulas:

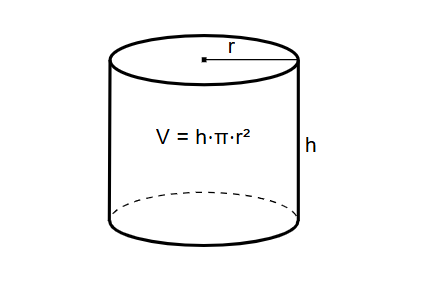

Diameter: \( d = 2r \)
Volume: \( V = \pi r^2 h \)

Steps:

Input the height \( h \) and radius \( r \) with their units (default: feet).
Validate that both inputs are positive.
Convert the inputs to feet for calculation.
Compute the diameter \( d = 2r \) and volume \( V = \pi r^2 h \) in cubic feet.
Convert the diameter to the user-selected unit (default: feet).
Convert the volume to the user-selected unit (default: cubic feet).
Display the results to 4 decimal places.

3. Importance of Cubic Feet of a Cylinder Calculations

Calculating the volume of a cylinder in cubic feet is essential for:

Construction: Determining the amount of concrete needed for cylindrical pillars or footings.
Engineering: Designing storage tanks or pipes, often requiring unit conversions (e.g., feet to meters).
Storage: Estimating the capacity of cylindrical containers, such as water tanks or silos.

4. Using the Calculator

Examples:

Example 1: Height \( h = 6 \) ft, Radius \( r = 4 \) ft, Outputs in ft and cu ft
Diameter: \( d = 2 \times 4 = 8.0000 \) ft,
Volume: \( V = \pi \times 4^2 \times 6 \approx 301.5929 \) cu ft.
Example 2: Height \( h = 48 \) in, Radius \( r = 24 \) in, Outputs in ft and cu yd
Convert to feet: \( h = 48 / 12 = 4 \) ft, \( r = 24 / 12 = 2 \) ft,
Diameter: \( d = 2 \times 2 = 4.0000 \) ft,
Volume: \( V = \pi \times 2^2 \times 4 \approx 50.2655 \) cu ft = 1.8617 cu yd.
Example 3: Height \( h = 2 \) m, Radius \( r = 1 \) m, Outputs in m and cu m
Convert to feet: \( h = 2 \times 3.28084 \approx 6.5617 \) ft, \( r = 1 \times 3.28084 \approx 3.28084 \) ft,
Diameter: \( d = 2 \times 3.28084 \approx 6.5617 \) ft = 2.0000 m,
Volume: \( V = \pi \times (3.28084)^2 \times 6.5617 \approx 221.6716 \) cu ft = 6.2832 cu m.
Example 4: Height \( h = 1 \) yd, Radius \( r = 0.5 \) yd, Outputs in yd and cu in
Convert to feet: \( h = 1 \times 3 = 3 \) ft, \( r = 0.5 \times 3 = 1.5 \) ft,
Diameter: \( d = 2 \times 1.5 = 3.0000 \) ft = 1.0000 yd,
Volume: \( V = \pi \times (1.5)^2 \times 3 \approx 21.2058 \) cu ft = 36643.5977 cu in.

5. Frequently Asked Questions (FAQ)

Q: Why do inputs default to feet?
A: Feet are the default unit since the calculator focuses on cubic feet, a common unit in construction and engineering in many regions. You can switch to other units using the dropdowns.

Q: Why must the height and radius be positive?
A: The height and radius represent physical dimensions of a cylinder, which must be positive to define a valid shape.

Q: How is the volume converted to other units?
A: The volume is first calculated in cubic feet, then converted to the selected unit using standard conversion factors (e.g., 1 cu ft = 1728 cu in, 1 cu ft = 0.0283168466 cu m).
