Adrenal Washout Calculator

1. What is an Adrenal Washout Calculator?

Definition: The Adrenal Washout Calculator evaluates the washout characteristics of an adrenal mass using Hounsfield Units (HU) from CT scans, calculating both Absolute and Relative Washout percentages to help differentiate benign from malignant adrenal lesions.

Purpose: It assists radiologists and clinicians in characterizing adrenal masses, often used to determine if a mass is likely an adenoma (benign) or requires further investigation for malignancy.

2. How Does the Calculator Work?

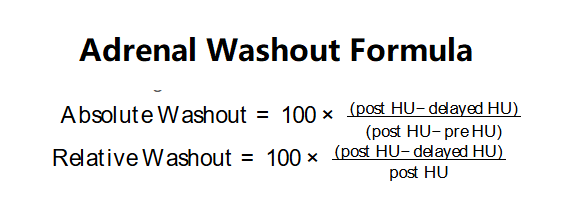

The calculator uses the following formulas:

Absolute Washout: \( \text{Absolute Washout} = 100 \times \frac{(\text{post HU} - \text{delayed HU})}{(\text{post HU} - \text{pre HU})} \)
Relative Washout: \( \text{Relative Washout} = 100 \times \frac{(\text{post HU} - \text{delayed HU})}{\text{post HU}} \)

Steps:

Input the Pre-contrast HU, Post-contrast HU, and Delayed-phase HU from a CT scan of the adrenal mass.
Validate inputs (Post HU cannot equal Pre HU or be zero; Post HU must be greater than or equal to Delayed HU; Delayed HU must be greater than or equal to Pre HU).
Calculate the Absolute Washout percentage.
Calculate the Relative Washout percentage.
Display the results, rounded to 2 decimal places.

3. Importance of Adrenal Washout Calculations

Calculating adrenal washout is important for:

Lesion Characterization: High washout percentages (e.g., Absolute Washout > 60% or Relative Washout > 40%) often indicate a benign adrenal adenoma, while lower values may suggest a malignant lesion.
Clinical Decision-Making: Helps avoid unnecessary biopsies or surgeries by identifying benign masses, reducing patient risk and healthcare costs.
Diagnostic Accuracy: Enhances the accuracy of CT imaging in differentiating adrenal masses, guiding further management or follow-up.

4. Using the Calculator

Examples:

Example 1: Pre HU: 10, Post HU: 70, Delayed HU: 25
- Absolute Washout: \( 100 \times \frac{(70 - 25)}{(70 - 10)} = 100 \times \frac{45}{60} = 75.00\% \)
- Relative Washout: \( 100 \times \frac{(70 - 25)}{70} = 100 \times \frac{45}{70} = 64.29\% \)
Example 2: Pre HU: 15, Post HU: 50, Delayed HU: 30
- Absolute Washout: \( 100 \times \frac{(50 - 30)}{(50 - 15)} = 100 \times \frac{20}{35} = 57.14\% \)
- Relative Washout: \( 100 \times \frac{(50 - 30)}{50} = 100 \times \frac{20}{50} = 40.00\% \)

5. Frequently Asked Questions (FAQ)

Q: What do Absolute and Relative Washout values indicate?
A: They help determine if an adrenal mass is benign (e.g., adenoma) or potentially malignant. Higher washout percentages typically suggest a benign lesion.

Q: How are Hounsfield Units (HU) measured?
A: HU values are obtained from CT scans, measuring the density of the adrenal mass at different phases (pre-contrast, post-contrast, and delayed).

Q: Can this calculator replace a biopsy?
A: While it can reduce the need for biopsies by identifying benign masses, it should be used as part of a comprehensive diagnostic workup, and clinical correlation is essential.
