1. What is a Roll Length Calculator?
Definition: This calculator determines the length of material wound into a roll, based on the outer diameter, inner diameter, and thickness of the material.
Purpose: It helps users estimate the length of materials like paper, fabric, or film on a roll, useful for inventory, manufacturing, or purchasing decisions.
2. How Does the Calculator Work?

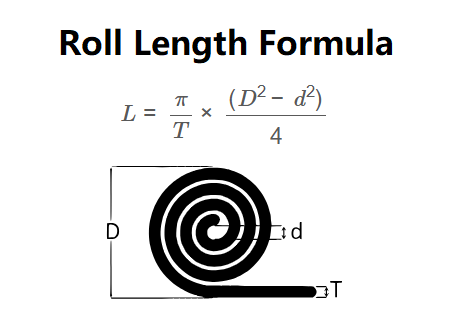

The calculator uses the following formula:
Material Length (L):
\[
L = \frac{\pi}{T} \times \frac{(D^2 - d^2)}{4}
\]
Where:
- L: Material length
- D: Outer diameter of the roll
- d: Inner diameter of the roll (core)
- T: Thickness of the material
Unit Conversions:
- Millimeters to Meters: 1 mm = 0.001 m
- Centimeters to Meters: 1 cm = 0.01 m
- Meters to Meters: 1 m = 1 m
- Inches to Meters: 1 in = 0.0254 m
- Feet to Meters: 1 ft = 0.3048 m
Steps:
- Enter the outer diameter (D), inner diameter (d), and material thickness (T), selecting a unit for each (mm, cm, m, in, ft).
- Convert all dimensions to meters for calculation.
- Calculate the material length using the formula \( L = \frac{\pi}{T} \times \frac{(D^2 - d^2)}{4} \).
- Convert the result to the selected output unit for length.
- Display the material length.
3. Importance of Roll Length Calculation
Calculating the roll length is crucial for:
- Inventory Management: Helps estimate how much material is available on a roll.
- Cost Efficiency: Ensures accurate purchasing or usage of materials, avoiding waste.
- Production Planning: Assists in planning manufacturing processes that involve rolled materials.
4. Using the Calculator
Examples:
- Example 1: Outer Diameter = 30 cm, Inner Diameter = 5 cm, Material Thickness = 0.1 cm, Output Unit = m:
- Convert to meters: \( D = 0.3 \, \text{m}, d = 0.05 \, \text{m}, T = 0.001 \, \text{m} \)
- Material Length: \( L = \frac{\pi}{0.001} \times \frac{(0.3^2 - 0.05^2)}{4} \approx 68.39 \, \text{m} \)
- Result: Material Length = 68.39 m
- Example 2: Outer Diameter = 12 in, Inner Diameter = 2 in, Material Thickness = 0.02 mm, Output Unit = ft:
- Convert to meters: \( D = 12 \times 0.0254 = 0.3048 \, \text{m}, d = 2 \times 0.0254 = 0.0508 \, \text{m}, T = 0.02 \times 0.001 = 0.00002 \, \text{m} \)
- Material Length: \( L = \frac{\pi}{0.00002} \times \frac{(0.3048^2 - 0.0508^2)}{4} \approx 3558.77 \, \text{m} \)
- Convert to ft: \( 3558.77 \div 0.3048 \approx 11676.09 \, \text{ft} \)
- Result: Material Length = 11676.09 ft
5. Frequently Asked Questions (FAQ)
Q: Why can I select different units for each input?
A: Independent unit selection provides flexibility, allowing users to input measurements in their preferred units while the calculator ensures consistency in the calculation.
Q: What if my material thickness varies?
A: This calculator assumes a uniform thickness. If the thickness varies, you may need to use an average thickness or calculate sections separately.
Q: Can this calculator be used for any rolled material?
A: Yes, as long as the material is wound tightly and uniformly, this formula provides a good approximation for materials like paper, fabric, or plastic film.
