1. What is a Projection Viewing Area Calculator?

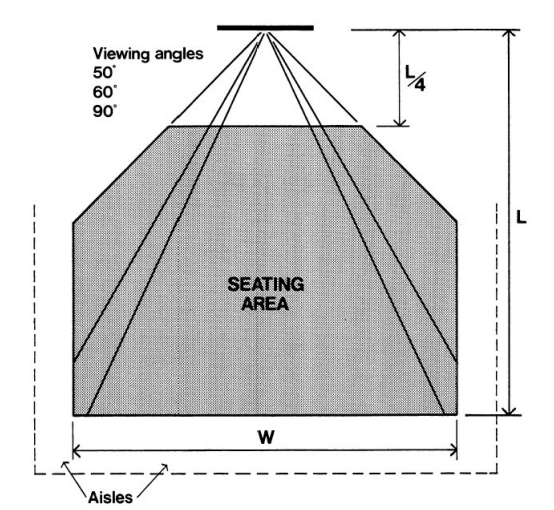

Definition: This calculator computes the room ratio (\( R \)) and viewing area (\( A \)) based on the distance to the farthest viewer, room width, and viewing angle, indicating the area perpendicular to the screen for optimal viewing.

Purpose: It is used to determine the seating area in rooms with screens, ensuring viewers are within appropriate distances and angles for clear visibility.

AUDIO-VISUAL ROOM SEATING CAPACITIES

Throw L	Ratio 1 : 1 = 1.00 Viewing Angle			Ratio 4 : 3 = 0.75 Viewing Angle			Ratio 3 : 2 = 0.67 Viewing Angle			Ratio 2 : 1 = 0.50 Viewing Angle
	50°	60°	90°	50°	60°	90°	50°	60°	90°	50°	60°	90°
20	29	35	46	28	31	36	27	29	33	22	24	25
22	35	43	55	34	38	44	32	35	40	27	29	30
24	42	51	66	40	45	53	38	42	47	32	34	36
26	49	60	77	47	53	62	45	49	56	38	40	42
28	57	69	90	55	61	71	52	57	64	44	46	49
30	65	80	103	63	71	82	60	66	74	51	53	56
32	74	91	117	72	80	93	68	75	84	57	61	64
34	84	102	132	81	91	105	77	84	95	65	69	72
36	94	115	149	91	102	118	86	95	107	73	77	81
38	105	128	165	101	113	132	96	105	119	81	86	90
40	116	142	183	112	125	146	106	117	132	90	95	100
44	140	171	222	135	152	176	129	141	159	109	115	121
48	167	204	264	161	181	210	153	168	189	129	137	144
52	196	239	310	189	212	246	180	198	222	152	160	169
56	227	277	359	219	246	286	209	229	258	176	186	196
60	261	319	413	252	282	328	240	263	296	202	213	225
64	297	362	469	286	321	373	273	299	337	230	243	256
68	335	409	530	323	362	421	308	338	380	260	274	289
72	376	459	594	362	406	473	345	379	426	291	307	324
76	418	511	662	404	453	526	384	422	475	324	342	361
80	464	566	733	447	502	583	426	467	526	359	379	400

Capacity is based on 6 sq. ft. per person. Add allowances for aisles.

2. How Does the Calculator Work?

The calculator uses the following formulas:

Room Ratio: \[ R = \frac{L}{\text{width}} \]

Viewing Area: \[ A = L^{2} \left( R - \frac{R^{2}}{4 \tan \frac{a}{2}} - \frac{\tan \frac{a}{2}}{16} \right) \]

Where:

• \( A \): Area
• \( L \): Distance to farthest viewer (last seat)
• \( R \): Room ratio, length to width
• \( a \): Viewing angle (degrees, typically 50° for beaded screen, 60° or 90° for matte screen)

Unit Conversions:

• Distance (\( L \)) and Width: ft, m (1 m = 3.28084 ft)
• Output Units for A: sq in (1 sq ft = 144 sq in), sq ft, sq cm (1 sq ft = 929.0304 sq cm), sq m (1 sq ft = 0.092903 sq m), sq yd (1 sq yd = 9 sq ft)

Steps:

• Enter the distance to farthest viewer (\( L \)), room width, viewing angle (\( a \)), and select units.
• Convert dimensions to feet.
• Calculate room ratio \( R = L / \text{width} \).
• Calculate the viewing area in sq ft using the formula.
• Convert to selected output unit and display with 5 decimal places or scientific notation.

3. Importance of Viewing Area Calculation

Calculating the viewing area is crucial for:

• Optimal Visibility: Ensures all viewers have a clear line of sight within the recommended angles and distances.
• Room Design: Helps in planning seating layouts, with maximum viewing distance 8 times screen height and minimum 2 times screen height.
• Space Efficiency: Balances room dimensions to accommodate the required viewing area without excess space.

4. Using the Calculator

Examples:

• Example 1: For \( L = 50 \, \text{ft} \), width = 25 ft, \( a = 50^\circ \), output sq ft:
  • \( R = 50 / 25 = 2 \)
  • \( \tan(a/2) = \tan(25^\circ) \approx 0.4663 \)
  • \( A = 50^2 \times (2 - 4 / (4 \times 0.4663) - 0.4663 / 16) = 2500 \times (2 - 2.144 - 0.02914) \approx 2500 \times (-0.17314) \)
  • Note: If negative, adjust inputs; formula assumes valid geometry.
• Example 2: For \( L = 30 \, \text{m} \), width = 10 m, \( a = 60^\circ \), output sq m:
  • Convert \( L = 30 \times 3.28084 \approx 98.4252 \, \text{ft} \), width = 10 \times 3.28084 \approx 32.8084 \, \text{ft} \)
  • \( R = 98.4252 / 32.8084 \approx 3 \)
  • \( \tan(30^\circ) \approx 0.5774 \)
  • \( A_{sqft} = 98.4252^2 \times (3 - 9 / (4 \times 0.5774) - 0.5774 / 16) \approx 9691.32 \times (3 - 3.897 - 0.03609) \approx 9691.32 \times (-0.93309) \)
  • Negative example; use positive configurations.

This formula does not include circulation, so add space for side and rear aisles as required by your layout. Seating capacities for some common room ratios at various viewing angles are given in Table 1-12.

5. Frequently Asked Questions (FAQ)

Q: What is the room ratio (R)?
A: Room ratio (\( R \)) is calculated as length / width, influencing the viewing area.

Q: Why is the viewing angle important?
A: The viewing angle (\( a \)) affects visibility; typical values are 50° for beaded screens and 60° or 90° for matte screens.

Q: How to handle negative results?
A: Negative area indicates invalid inputs; ensure \( R \) is appropriate and angle is reasonable for the geometry.
