1. What is a Horsepower Calculator?

Definition: This calculator estimates a vehicle's power output using either the elapsed time to complete a quarter-mile race or the trap speed at the end of a quarter-mile race, along with the vehicle's weight.

Purpose: It is used in automotive performance analysis to estimate engine power for racing or tuning purposes.

2. How Does the Calculator Work?

The calculator uses two methods:

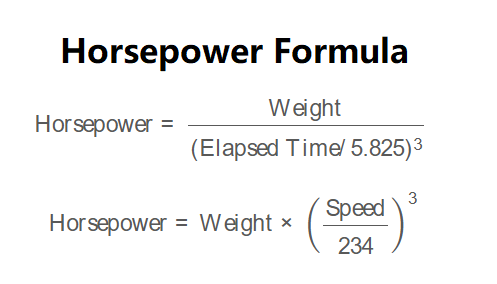

Elapsed Time Method: \[ \text{Horsepower (hp(I))} = \frac{\text{Weight}}{(\text{Elapsed Time} / 5.825)^3} \] Trap-Speed Method: \[ \text{Horsepower (hp(I))} = \text{Weight} \times \left(\frac{\text{Speed}}{234}\right)^3 \] Where:

• \(\text{Horsepower}\): Estimated engine power (hp(I), convertible to other units)
• \(\text{Weight}\): Vehicle weight (pounds)
• \(\text{Elapsed Time}\): Time to complete a quarter-mile race (seconds)
• \(\text{Speed}\): Trap speed at the end of a quarter-mile race (mph)

Unit Conversions:

• Weight:
  • 1 kg = 2.20462 pounds
  • 1 metric ton = 2204.62 pounds
  • 1 US short ton = 2000 pounds
  • 1 imperial ton (long ton) = 2240 pounds
• Elapsed Time:
  • 1 minute = 60 seconds
• Speed:
  • 1 kph = 0.621371 mph
  • 1 m/s = 2.23694 mph
  • 1 km/s = 2236.94 mph
• Power Output:
  • 1 hp(I) = 745,700 mW
  • 1 hp(I) = 745.7 W
  • 1 hp(I) = 0.7457 kW
  • 1 hp(I) = 0.0007457 MW
  • 1 hp(I) = 0.0000007457 GW
  • 1 hp(I) = 2544.43 BTU/h

Steps:

• Select the calculation method (Elapsed Time or Trap-Speed).
• Enter the vehicle weight, selecting the unit (pounds, kg, metric tons, etc.).
• For Elapsed Time Method: Enter the time to complete a quarter-mile race, selecting the unit (seconds, minutes).
• For Trap-Speed Method: Enter the speed at the end of a quarter-mile race, selecting the unit (mph, kph, m/s, km/s).
• Convert weight to pounds, elapsed time to seconds, and speed to mph if needed.
• Calculate the horsepower in hp(I) using the selected method’s formula.
• Convert the result to the selected power unit and display.

3. Importance of Horsepower Calculation

Calculating power output is crucial for:

• Performance Tuning: Understanding a vehicle’s power for modifications.
• Racing: Estimating a car’s potential in drag races.
• Engineering: Comparing engine efficiency and power output.

4. Using the Calculator

Examples:

• Example 1 (Elapsed Time Method): For \(\text{Weight} = 1.5 \, \text{metric tons}\), \(\text{Elapsed Time} = 0.2 \, \text{minutes}\):
  • Convert: \(\text{Weight} = 1.5 \times 2204.62 = 3306.93 \, \text{pounds}\), \(\text{Elapsed Time} = 0.2 \times 60 = 12 \, \text{seconds}\)
  • Horsepower: \(\text{Horsepower} = \frac{3306.93}{(12 / 5.825)^3} = 377.56 \, \text{hp(I)}\)
  • In kW: \(377.56 \times 0.7457 = 281.54 \, \text{kW}\)
• Example 2 (Trap-Speed Method): For \(\text{Weight} = 1.5 \, \text{US tons}\), \(\text{Trap Speed} = 40 \, \text{m/s}\):
  • Convert: \(\text{Weight} = 1.5 \times 2000 = 3000 \, \text{pounds}\), \(\text{Trap Speed} = 40 \times 2.23694 = 89.48 \, \text{mph}\)
  • Horsepower: \(\text{Horsepower} = 3000 \times \left(\frac{89.48}{234}\right)^3 = 167.87 \, \text{hp(I)}\)
  • In W: \(167.87 \times 745.7 = 125162.66 \, \text{W}\)

5. Frequently Asked Questions (FAQ)

Q: What is the difference between the two methods?
A: The Elapsed Time Method uses the time to complete a quarter-mile race, while the Trap-Speed Method uses the speed at the end of the race. Both estimate power but focus on different performance aspects.

Q: Can the weight or elapsed time be negative?
A: No, these values must be positive as they represent physical quantities.

Q: How accurate are these power estimates?
A: The estimates are approximations based on simplified formulas and do not account for factors like aerodynamics, traction, or driver skill.
