Energy Use Intensity (EUI) Calculator

1. What is an Energy Use Intensity (EUI) Calculator?

Definition: This calculator determines the Energy Use Intensity (EUI) of a building, which is the annual energy consumption per unit of floor area.

Purpose: It is used to assess a building's energy efficiency, compare energy performance across buildings, and identify opportunities for energy savings.

2. How Does the Calculator Work?

The calculator uses the following formula:

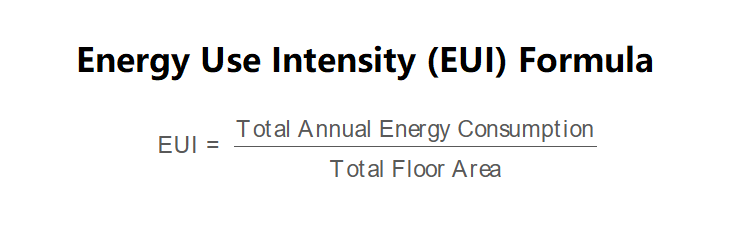

Energy Use Intensity (EUI): \[ \text{EUI} = \frac{\text{Total Annual Energy Consumption}}{\text{Total Floor Area}} \]

Where:

\( \text{EUI} \): Energy Use Intensity (e.g., kWh/m² or MJ/ft²)
Total Annual Energy Consumption: Energy used in a year (kWh or MJ)
Total Floor Area: Area of the building (m² or ft²)

Unit Conversions:

Energy to kWh:
1 MJ = 0.277778 kWh
Area to m²:
1 ft² = 0.092903 m²
EUI Units:
kWh/m² (base calculation)
MJ/ft² (after converting energy to MJ and area to ft²)

Steps:

Enter the total annual energy consumption and select the unit (kWh or MJ).
Enter the total floor area and select the unit (m² or ft²).
Convert energy consumption to kWh and floor area to m².
Calculate the EUI using the formula \( \text{EUI} = \frac{\text{Total Annual Energy Consumption}}{\text{Total Floor Area}} \).
Convert the EUI to the selected output unit (kWh/m² or MJ/ft²).
Display the EUI.

3. Importance of EUI Calculation

Calculating EUI is crucial for:

Energy Efficiency: Identifies buildings with high energy use, prompting improvements.
Cost Savings: Lower EUI values can lead to reduced energy bills.
Environmental Impact: Helps reduce energy consumption, lowering carbon emissions.

4. Using the Calculator

Examples:

Example 1: Total Annual Energy Consumption = 10000 kWh, Total Floor Area = 100 m²:
- EUI: \( \text{EUI} = \frac{10000}{100} = 100 \, \text{kWh/m}^2 \)
Example 2: Total Annual Energy Consumption = 36000 MJ, Total Floor Area = 1000 ft², Output in MJ/ft²:
- Energy in kWh: \( 36000 \times 0.277778 = 10000 \, \text{kWh} \)
- Area in m²: \( 1000 \times 0.092903 = 92.903 \, \text{m}^2 \)
- EUI in kWh/m²: \( \text{EUI} = \frac{10000}{92.903} \approx 107.64 \, \text{kWh/m}^2 \)
- Energy in MJ: \( 10000 \div 0.277778 = 36000 \, \text{MJ} \)
- EUI in MJ/ft²: \( \frac{36000}{1000} = 36 \, \text{MJ/ft}^2 \)

5. Frequently Asked Questions (FAQ)

Q: What is a good EUI value?
A: A good EUI varies by building type and climate. For example, an efficient office building might have an EUI of 50-100 kWh/m² per year, while a residential building might be lower.

Q: How can I reduce my building's EUI?
A: Improve insulation, use energy-efficient lighting and appliances, implement smart energy management systems, and reduce unnecessary energy use.

Q: Does the calculator account for different energy sources?
A: No, this calculator assumes all energy is in kWh or MJ. If you use multiple energy sources (e.g., electricity, gas), convert them to a common unit before inputting.
