Compression Ratio Calculator

Bore Diameter (b):

Piston Stroke (s):

Head Gasket Thickness (t):

Gasket Bore (g):

Deck Clearance (c):

Combustion Chamber Volume (V_chamber):

Piston Volume (V_piston):

Compressed Volume (V_c):

Displacement Volume (V_d):

Engine Volume:

Compression Ratio (CR):

1. What is a Compression Ratio Calculator?

Definition: This calculator determines the compression ratio of an engine, which is the ratio of the total volume (displacement volume plus compressed volume) to the compressed volume.

Purpose: It is used in automotive engineering to assess engine performance and efficiency.

2. How Does the Calculator Work?

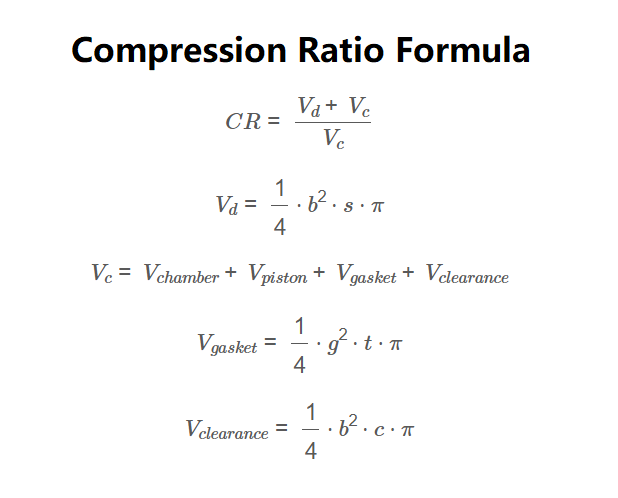

The calculator uses the following formulas:

\[ CR = \frac{V_d + V_c}{V_c} \] \[ V_d = \frac{1}{4} \cdot b^2 \cdot s \cdot \pi \] \[ V_c = V_{chamber} + V_{piston} + V_{gasket} + V_{clearance} \] \[ V_{gasket} = \frac{1}{4} \cdot g^2 \cdot t \cdot \pi \] \[ V_{clearance} = \frac{1}{4} \cdot b^2 \cdot c \cdot \pi \] Where:

\(CR\): Compression Ratio
\(V_d\): Displacement Volume (cc, L, ml, in³)
\(V_c\): Compressed Volume (cc, L, ml, in³)
\(b\): Bore Diameter (mm, cm, in)
\(s\): Piston Stroke (mm, cm, in)
\(t\): Head Gasket Thickness (mm, cm, in)
\(g\): Gasket Bore (mm, cm, in)
\(c\): Deck Clearance (mm, cm, in)
\(V_{chamber}\): Combustion Chamber Volume (cc, L, ml)
\(V_{piston}\): Piston Volume (cc, L, ml)

Unit Conversions:

Dimensions: mm (1 mm = 0.1 cm), cm, in (1 in = 2.54 cm)
Volumes: cc (1 cc = 1 cm³), L (1 L = 1000 cc), ml (1 ml = 1 cc), in³ (1 cc = 0.0610237 in³)

Steps:

Enter the bore diameter (b), piston stroke (s), head gasket thickness (t), gasket bore (g), and deck clearance (c), selecting the unit for each (mm, cm, in).
Enter the combustion chamber volume (V_chamber) and piston volume (V_piston), selecting the unit for each (cc, L, ml).
Convert dimensions to cm and volumes to cc for calculations.
Calculate the displacement volume (V_d), compressed volume (V_c), engine volume, and compression ratio (CR).
Display the volumes in their selected output units (cc, L, ml, in³) and CR as a unitless ratio.

3. Importance of Compression Ratio Calculation

Calculating compression ratio is crucial for:

Engine Performance: Higher compression ratios generally improve efficiency and power output.
Fuel Efficiency: Optimizing the compression ratio for specific fuels (e.g., gasoline vs. diesel).
Engine Design: Ensuring the engine operates within safe limits to avoid knocking.

4. Using the Calculator

Examples:

Example 1: b = 80 mm, s = 9 cm, t = 0.039 in, g = 8.2 cm, c = 0.5 mm, V_chamber = 50 cc, V_piston = 0.005 L:
- Convert to cm: \( b = 80 \div 10 = 8 \, \text{cm}, s = 9 \, \text{cm}, t = 0.039 \times 2.54 = 0.1 \, \text{cm}, g = 8.2 \, \text{cm}, c = 0.5 \div 10 = 0.05 \, \text{cm} \)
- Convert volumes: \( V_{chamber} = 50 \, \text{cc}, V_{piston} = 0.005 \times 1000 = 5 \, \text{cc} \)
- Displacement Volume: \( V_d = \frac{1}{4} \cdot 8^2 \cdot 9 \cdot \pi = 452.39 \, \text{cc} \)
- In in³: \( V_d = 452.39 \times 0.0610237 = 27.61 \, \text{in³} \)
- V_gasket: \( V_{gasket} = \frac{1}{4} \cdot 8.2^2 \cdot 0.1 \cdot \pi = 5.28 \, \text{cc} \)
- V_clearance: \( V_{clearance} = \frac{1}{4} \cdot 8^2 \cdot 0.05 \cdot \pi = 2.51 \, \text{cc} \)
- Compressed Volume: \( V_c = 50 + 5 + 5.28 + 2.51 = 62.79 \, \text{cc} \)
- In in³: \( V_c = 62.79 \times 0.0610237 = 3.83 \, \text{in³} \)
- Engine Volume: \( V_d + V_c = 452.39 + 62.79 = 515.18 \, \text{cc} \)
- In in³: \( 515.18 \times 0.0610237 = 31.44 \, \text{in³} \)
- Compression Ratio: \( CR = \frac{452.39 + 62.79}{62.79} = 8.20 \)
Example 2: b = 3.94 in, s = 120 mm, t = 0.12 cm, g = 102 mm, c = 0.031 in, V_chamber = 0.07 L, V_piston = 10 ml:
- Convert to cm: \( b = 3.94 \times 2.54 = 10 \, \text{cm}, s = 120 \div 10 = 12 \, \text{cm}, t = 0.12 \, \text{cm}, g = 102 \div 10 = 10.2 \, \text{cm}, c = 0.031 \times 2.54 = 0.08 \, \text{cm} \)
- Convert volumes: \( V_{chamber} = 0.07 \times 1000 = 70 \, \text{cc}, V_{piston} = 10 \, \text{ml} = 10 \, \text{cc} \)
- Displacement Volume: \( V_d = \frac{1}{4} \cdot 10^2 \cdot 12 \cdot \pi = 942.48 \, \text{cc} \)
- In in³: \( V_d = 942.48 \times 0.0610237 = 57.53 \, \text{in³} \)
- V_gasket: \( V_{gasket} = \frac{1}{4} \cdot 10.2^2 \cdot 0.12 \cdot \pi = 9.81 \, \text{cc} \)
- V_clearance: \( V_{clearance} = \frac{1}{4} \cdot 10^2 \cdot 0.08 \cdot \pi = 6.28 \, \text{cc} \)
- Compressed Volume: \( V_c = 70 + 10 + 9.81 + 6.28 = 96.09 \, \text{cc} \)
- In in³: \( V_c = 96.09 \times 0.0610237 = 5.86 \, \text{in³} \)
- Engine Volume: \( V_d + V_c = 942.48 + 96.09 = 1038.57 \, \text{cc} \)
- In in³: \( 1038.57 \times 0.0610237 = 63.39 \, \text{in³} \)
- Compression Ratio: \( CR = \frac{942.48 + 96.09}{96.09} = 10.81 \)

5. Frequently Asked Questions (FAQ)

Q: What is compression ratio?
A: Compression ratio is the ratio of the total volume (displacement plus compressed volume) to the compressed volume in an engine, calculated as \( CR = \frac{V_d + V_c}{V_c} \).

Q: Can I use different units for each input?
A: Yes, each dimension (bore, stroke, etc.) and volume (chamber, piston, etc.) can be input in its own unit (mm, cm, in for dimensions; cc, L, ml for volumes). The calculator converts them to a consistent unit for calculation.

Q: How does in³ compare to other volume units?
A: 1 in³ (cubic inch) is approximately 16.387 cc. So, 1 cc = 0.0610237 in³, 1 L = 61.0237 in³, and 1 ml = 0.0610237 in³.

Q: What is a typical compression ratio?
A: Gasoline engines typically have compression ratios between 8:1 and 12:1, while diesel engines range from 14:1 to 22:1.
