Bag Measurement Calculator

Height (h):

Width (w):

Depth (d):

Fabric Width:

Fabric Height:

Box Corner:

1. What is a Bag Measurement Calculator?

Definition: This calculator estimates the fabric dimensions required to make a bag, including fabric width, fabric height, and box corner size, based on the desired bag dimensions.

Purpose: It is used in sewing and crafting to determine the amount of fabric needed for creating a bag with specific dimensions, accounting for seam allowances.

2. How Does the Calculator Work?

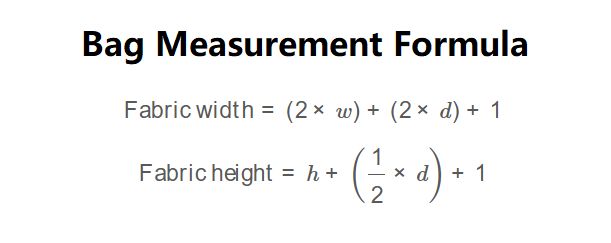

The calculator uses the following formulas:

\[ \text{Fabric width} = (2 \times w) + (2 \times d) + 1 \] \[ \text{Fabric height} = h + \left(\frac{1}{2} \times d\right) + 1 \] \[ \text{Box corner} = \frac{d}{2} \] Where:

\(h\): Height of the bag (mm, cm, dm, m, in, ft, yd)
\(w\): Width of the bag (mm, cm, dm, m, in, ft, yd)
\(d\): Depth of the bag (mm, cm, dm, m, in, ft, yd)

Unit Conversions for h, w, d:

mm: 1 mm = 0.0393701 in
cm: 1 cm = 0.393701 in
dm: 1 dm = 3.93701 in
m: 1 m = 39.3701 in
in: 1 in = 1 in
ft: 1 ft = 12 in
yd: 1 yd = 36 in
The +1 in the formulas represents a half-inch seam allowance (converted to the output unit).

Steps:

Enter the height (h), width (w), and depth (d) of the bag, selecting the unit for each.
Convert each input to inches for calculation.
Calculate fabric width, fabric height, and box corner using the formulas.
Convert results to the selected output units.
Display the results.

3. Importance of Bag Measurement Calculation

Calculating fabric dimensions is crucial for:

Material Efficiency: Ensuring you purchase the correct amount of fabric.
Accurate Sewing: Providing precise measurements for cutting fabric, including seam allowances.
Design Consistency: Achieving the desired bag shape and size.

4. Using the Calculator

Examples:

Example 1: For \(h = 10 \, \text{in}\), \(w = 12 \, \text{in}\), \(d = 4 \, \text{in}\):
- Fabric width: \((2 \times 12) + (2 \times 4) + 1 = 33 \, \text{in}\)
- In mm: \(33 \div 0.0393701 = 838.2 \, \text{mm}\)
- Fabric height: \(10 + \left(\frac{1}{2} \times 4\right) + 1 = 13 \, \text{in}\)
- In cm: \(13 \div 0.393701 = 33.02 \, \text{cm}\)
- Box corner: \(\frac{4}{2} = 2 \, \text{in}\)
- In yd: \(2 \div 36 = 0.06 \, \text{yd}\)
Example 2: For \(h = 1 \, \text{m}\), \(w = 50 \, \text{cm}\), \(d = 2 \, \text{dm}\):
- Convert: \(h = 1 \times 39.3701 = 39.37 \, \text{in}\), \(w = 50 \times 0.393701 = 19.69 \, \text{in}\), \(d = 2 \times 3.93701 = 7.87 \, \text{in}\)
- Fabric width: \((2 \times 19.69) + (2 \times 7.87) + 1 = 39.38 + 15.74 + 1 = 56.12 \, \text{in}\)
- In m: \(56.12 \div 39.3701 = 1.43 \, \text{m}\)
- Fabric height: \(39.37 + \left(\frac{1}{2} \times 7.87\right) + 1 = 39.37 + 3.94 + 1 = 44.31 \, \text{in}\)
- In m: \(44.31 \div 39.3701 = 1.13 \, \text{m}\)
- Box corner: \(\frac{7.87}{2} = 3.94 \, \text{in}\)
- In m: \(3.94 \div 39.3701 = 0.10 \, \text{m}\)

5. Frequently Asked Questions (FAQ)

Q: What does the +1 in the formulas mean?
A: The +1 represents a half-inch seam allowance to ensure proper stitching space.

Q: Can the dimensions be negative?
A: No, height, width, and depth must be positive as they represent physical measurements.

Q: Why calculate the box corner?
A: The box corner measurement helps in sewing the base of the bag to give it a three-dimensional shape.
