1. What is dBm to Watts Converter?

Definition: This converter transforms power values between dBm (decibels-milliwatts) and various linear power units such as watts (W), milliwatts (mW), kilowatts (kW), and megawatts (MW), with options to convert in both directions.

Purpose: It is used in telecommunications, electronics, and RF engineering to convert power levels for signal analysis, equipment specifications, or system design.

2. How Does the Converter Work?

The converter uses the following formulas:

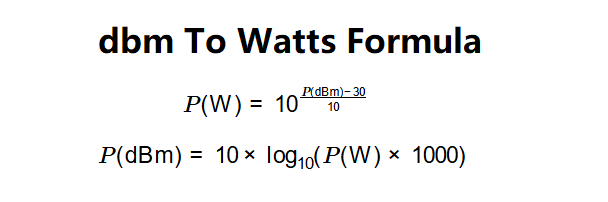

Formulas:

• dBm to Watts: $$P(\text{W})={10}^{\frac{P(\text{dBm})-30}{10}}$$
• Watts to dBm: $$P(\text{dBm})=10\times {\log }_{10}(P(\text{W})\times 1000)$$
• Power in other units (from watts):
  • Milliwatts: $P(\text{mW})=P(\text{W})\times 1000$
  • Kilowatts: $P(\text{kW})=P(\text{W})\times 0.001$
  • Megawatts: $P(\text{MW})=P(\text{W})\times 0.000001$

Where:

• $P(\text{dBm})$: Power in dBm
• $P(\text{W})$: Power in watts

Unit Conversions:

• Power:
  • 0 dBm = 0.001 W
  • 30 dBm = 1 W
  • 1 W = 1000 mW
  • 1 W = 0.001 kW
  • 1 W = 0.000001 MW

Steps:

• Enter the power value and select the input unit (dBm or watts).
• Choose the desired output unit (watts, milliwatts, kilowatts, megawatts, or dBm).
• Validate the input to ensure a value is provided and, if converting from watts to dBm, that the power is positive.
• Convert the input to watts as an intermediate step (if needed), then to the desired output unit.
• Display the result, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of dBm to Watts Conversion

Converting between dBm and watts (or other power units) is crucial for:

• Telecommunications: Engineers convert signal power levels for network design and optimization.
• Electronics: Power levels in dBm are used in RF equipment, requiring conversion to linear units for calculations.
• Signal Analysis: Converts logarithmic power measurements to linear units for easier interpretation.

4. Using the Converter

Example: Convert 30 dBm to milliwatts.

1. Enter the power: 30, input unit: dBm, output unit: milliwatts.
2. The converter calculates:
   • First, dBm to watts: $P(\text{W})={10}^{\frac{30-30}{10}}=1.0000\text{W}$
   • Then, watts to milliwatts: $P(\text{mW})=1.0000\times 1000=1000.0000\text{mW}$
3. The converter returns:
   • Power in Milliwatts (mW): 1000.0000

Another Example: Convert 2 watts to dBm.

1. Enter the power: 2, input unit: watts, output unit: dBm.
2. The converter calculates:
   • Watts to dBm: $P(\text{dBm})=10\times {\log }_{10}(2\times 1000)$
   • $P(\text{dBm})=10\times {\log }_{10}(2000)\approx 33.0103$
3. The converter returns:
   • Power in dBm: 33.0103

5. Frequently Asked Questions (FAQ)

Q: What is the dBm to Watts Converter?
A: The dBm to Watts Converter transforms power values between dBm and various linear power units (watts, milliwatts, kilowatts, megawatts), with options to convert in both directions.

Q: Why use dBm instead of watts?
A: dBm is a logarithmic unit that simplifies calculations involving large ranges of power levels, commonly used in telecommunications and RF engineering.

Q: How is the dBm to Watts Converter used in real life?
A: It is used in telecommunications for signal strength analysis, in electronics for RF equipment design, and in signal processing to convert power levels for calculations.
