1. What is Pressure Conversion Calculator?

Definition: This calculator converts pressure values from bar to various other pressure units such as psi, atmospheres, pascals, and more, using standard conversion factors.

Purpose: It is used in engineering, meteorology, and physics where pressure needs to be converted between different units for analysis, design, or practical use.

2. How Does the Converter Work?

The converter uses the following formulas based on the conversion factors:

Formulas:

• Pounds per square inch (psi): \[ \text{psi} = \text{bar} \times 14.5038 \]
• Standard atmospheres (atm): \[ \text{atm} = \text{bar} \times 0.986923 \]
• Pascals (Pa): \[ \text{Pa} = \text{bar} \times 100000 \]
• Micropascals (μPa): \[ \text{μPa} = \text{bar} \times 100000000000 \]
• Millipascals (mPa): \[ \text{mPa} = \text{bar} \times 100000000 \]
• Millibars (mbar): \[ \text{mbar} = \text{bar} \times 1000 \]
• Technical atmospheres (at): \[ \text{at} = \text{bar} \times 1.01972 \]
• Torr (Torr): \[ \text{Torr} = \text{bar} \times 750.062 \]
• Hectopascals (hPa): \[ \text{hPa} = \text{bar} \times 1000 \]
• Kilopascals (kPa): \[ \text{kPa} = \text{bar} \times 100 \]
• Megapascals (MPa): \[ \text{MPa} = \text{bar} \times 0.1 \]
• Gigapascals (GPa): \[ \text{GPa} = \text{bar} \times 0.0001 \]
• Inches of mercury (inHg): \[ \text{inHg} = \text{bar} \times 29.5299 \]
• Millimeters of mercury (mmHg): \[ \text{mmHg} = \text{bar} \times 750.062 \]

Where:

• \( \text{bar} \): Pressure in bar
• Conversion factors are derived from standard definitions of each unit.

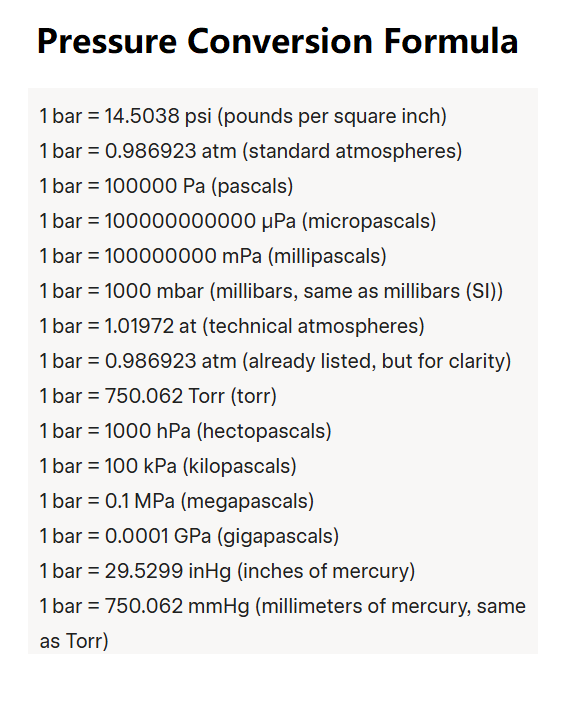

Unit Conversions:

• Pressure:
  • 1 bar = 14.5038 psi
  • 1 bar = 0.986923 atm
  • 1 bar = 100000 Pa
  • 1 bar = 100000000000 μPa
  • 1 bar = 100000000 mPa
  • 1 bar = 1000 mbar
  • 1 bar = 1.01972 at
  • 1 bar = 750.062 Torr
  • 1 bar = 1000 hPa
  • 1 bar = 100 kPa
  • 1 bar = 0.1 MPa
  • 1 bar = 0.0001 GPa
  • 1 bar = 29.5299 inHg
  • 1 bar = 750.062 mmHg

Steps:

• Enter the pressure value in bar in the input field.
• Validate the input to ensure it is non-negative and non-zero.
• Apply the conversion formulas to compute the pressure in each unit.
• Display the results, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Pressure Conversion

Converting between pressure units is crucial for:

• Engineering Design: Engineers need to convert pressures for system design, such as in hydraulics or pneumatics.
• Meteorology: Weather forecasts often use units like hPa or inHg, requiring conversions from bar.
• Physics Experiments: Scientists use different units depending on the context of the experiment.

4. Using the Converter

Example: Convert 2 bar to various pressure units.

1. Enter the pressure, \( \text{Pressure} = 2 \).
2. The converter calculates:
   • psi: \( \text{psi} = 2 \times 14.5038 = 29.0076 \, \text{psi} \)
   • atm: \( \text{atm} = 2 \times 0.986923 = 1.9738 \, \text{atm} \)
   • Pa: \( \text{Pa} = 2 \times 100000 = 200000.0000 \, \text{Pa} \)
   • μPa: \( \text{μPa} = 2 \times 100000000000 = 2.0000 \times 10^{11} \, \text{μPa} \)
   • mPa: \( \text{mPa} = 2 \times 100000000 = 200000000.0000 \, \text{mPa} \)
   • mbar: \( \text{mbar} = 2 \times 1000 = 2000.0000 \, \text{mbar} \)
   • at: \( \text{at} = 2 \times 1.01972 = 2.0394 \, \text{at} \)
   • Torr: \( \text{Torr} = 2 \times 750.062 = 1500.1240 \, \text{Torr} \)
   • hPa: \( \text{hPa} = 2 \times 1000 = 2000.0000 \, \text{hPa} \)
   • kPa: \( \text{kPa} = 2 \times 100 = 200.0000 \, \text{kPa} \)
   • MPa: \( \text{MPa} = 2 \times 0.1 = 0.2000 \, \text{MPa} \)
   • GPa: \( \text{GPa} = 2 \times 0.0001 = 0.0002 \, \text{GPa} \)
   • inHg: \( \text{inHg} = 2 \times 29.5299 = 59.0598 \, \text{inHg} \)
   • mmHg: \( \text{mmHg} = 2 \times 750.062 = 1500.1240 \, \text{mmHg} \)
3. The converter returns the values for all units.

5. Frequently Asked Questions (FAQ)

Q: What is the Pressure Conversion Calculator?
A: The Pressure Conversion Calculator converts pressure values from bar to various other pressure units using standard conversion factors.

Q: Why are there so many pressure units?
A: Different units are used in various fields (e.g., engineering, meteorology, physics) and regions (e.g., metric vs. imperial), requiring conversions for consistency.

Q: How is the Pressure Conversion Calculator used in real life?
A: It is used in engineering for designing systems, in meteorology for weather forecasting, and in physics for experiments involving pressure measurements.
