Acre-Foot of Water Calculator

Select Type:

Calculate Volume Calculate Depth

Length (\( L \)):

Width (\( W \)):

Depth (\( D \)):

Output Volume Unit:

Volume (\( V \)):

Length (\( L \)):

Width (\( W \)):

Output Depth Unit:

Volume (V):

acre feet

Length (L):

feet

Width (W):

feet

Depth (D):

feet

1. What is the Acre-Foot of Water Calculator?

Definition: This calculator computes the volume of water in acre-feet (or other units) based on the length, width, and depth of a rectangular area, or calculates the depth given the volume and other dimensions. An acre-foot is the volume of water that would cover one acre to a depth of one foot.

Purpose: It is used by water resource managers, farmers, engineers, and environmental scientists to estimate water storage in reservoirs, ponds, or irrigation systems, supporting water management and planning in various units.

2. How Does the Calculator Work?

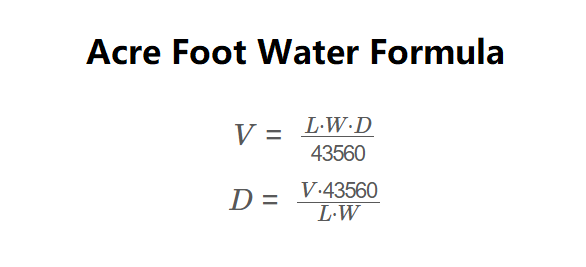

The calculator uses the following formulas, as shown in the image above:

\( V = \frac{L \cdot W \cdot D}{43560} \)

\( D = \frac{V \cdot 43560}{L \cdot W} \)

Where:

\( V \): Volume (in acre-feet for the formula);
\( L \): Length (in feet for the formula);
\( W \): Width (in feet for the formula);
\( D \): Depth (in feet for the formula).

Steps:

Select whether to calculate volume or depth.
Enter the known values and their units (length, width, depth, or volume, length, width).
Choose the desired output unit for the result.
The calculator converts inputs to standard units (feet and acre-feet), performs the calculation, and converts the result to the selected output unit.
Results are displayed, formatted in scientific notation if the absolute value is less than 0.001, otherwise with 4 decimal places.

3. Importance of Acre-Foot Calculation

Calculating water volume in acre-feet or other units is essential for:

Water Management: Helps estimate water storage for irrigation, reservoirs, or flood control, critical for agricultural and urban planning.
Engineering Design: Assists in designing water storage systems by determining required dimensions or volumes in preferred units.
Environmental Planning: Supports environmental assessments by quantifying water resources available for ecosystems or human use.

4. Using the Calculator

Example 1: Calculate the volume for a 100-meter length, 50-meter width, and 2-meter depth, output in gallons:

Calculation Type: Calculate Volume;
Length (\( L \)): 100 meters;
Width (\( W \)): 50 meters;
Depth (\( D \)): 2 meters;
Output Unit: Gallons;
Volume (\( V \)): \( \frac{(100 \cdot 3.28084) \cdot (50 \cdot 3.28084) \cdot (2 \cdot 3.28084)}{43560} = 295.60714144 \text{ acre-feet} \), converted to 96333395.0760 gallons.

Example 2: Calculate the depth for a 1-acre-foot volume with a 200-foot length and 100-foot width, output in centimeters:

Calculation Type: Calculate Depth;
Volume (\( V \)): 1 acre-foot;
Length (\( L \)): 200 feet;
Width (\( W \)): 100 feet;
Output Unit: Centimeters;
Depth (\( D \)): \( \frac{1 \cdot 43560}{200 \cdot 100} = 2.1780 \text{ feet} \), converted to 66.38544 centimeters.

5. Frequently Asked Questions (FAQ)

Q: How accurate is the acre-foot calculation with different units?
A: The formula is exact for rectangular volumes when using consistent units. The calculator handles unit conversions precisely, but real-world applications may involve irregular shapes or measurement errors.

Q: Can I use any combination of units?
A: Yes, you can select any combination of input and output units for length (feet, meters, inches, centimeters) and volume (acre-feet, cubic feet, cubic meters, gallons). The calculator converts all values appropriately.

Q: Why is unit flexibility important?
A: Different regions and industries use different units (e.g., metric vs. imperial, acre-feet vs. gallons). Flexible unit selection ensures the calculator is versatile for global use in water management, engineering, and agriculture.
