Board Foot to Piece Calculator

Total Length:

Nominal Lumber Size:

Do You Know the Number of Pieces?

Number of Pieces:

Cost per Board Foot ($):

1. What is the Board Foot to Piece Calculator?

Definition: The Board Foot to Piece Calculator computes the board feet per piece, number of pieces, total board feet, and cost per piece for lumber, based on length, nominal size, number of pieces or total dimensions, and optional cost per board foot.

Purpose: This tool helps woodworkers and contractors estimate lumber volume and costs, either by specifying the number of pieces or calculating it from total width and height, for accurate project planning.

2. How Does the Calculator Work?

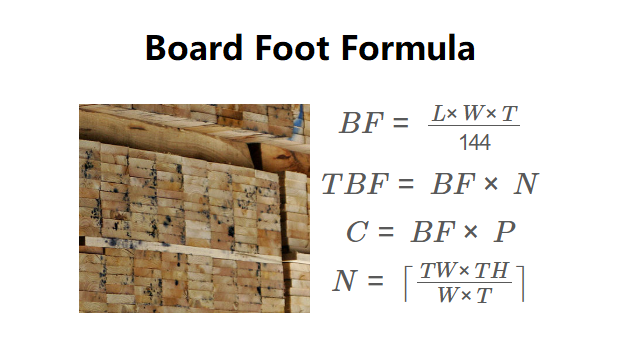

The calculator uses the following formulas:

$ BF = \frac{L \times W \times T}{144} $

$ TBF = BF \times N $

$ C = BF \times P $

$ N = \left\lceil \frac{TW \times TH}{W \times T} \right\rceil $

Where:

$ L $: Length in inches;
$ W $: Width in inches (actual, based on nominal size);
$ T $: Thickness in inches (actual, based on nominal size);
$ N $: Number of pieces;
$ TW $: Total width in inches;
$ TH $: Total height in inches;
$ P $: Price per board foot;
$ BF $: Board feet per piece;
$ TBF $: Total board feet;
$ C $: Cost per piece.

Steps:

Enter the total length and select its unit (feet, inches, yards).
Select the nominal lumber size (with actual dimensions shown).
Indicate if the number of pieces is known. If yes, enter the number of pieces; if no, enter total width and height with their units (inches, feet).
Optionally, enter the cost per board foot.
Convert length, width, and height to inches and use actual dimensions from the nominal size.
Calculate number of pieces if not known: ceiling of total width times height divided by width times thickness.
Calculate board feet per piece: length times width times thickness divided by 144.
Calculate total board feet: board feet per piece times number of pieces.
Calculate cost per piece: board feet per piece times cost per board foot, if provided.
Display results to four decimal places, using scientific notation for values less than 0.0001.

3. Importance of the Board Foot Calculation

Calculating board feet is essential for:

Cost Estimation: Determines lumber costs for budgeting woodworking or construction projects.
Material Planning: Ensures accurate lumber quantities or calculates required pieces to cover an area.
Industry Standard: Provides a standardized volume measure for hardwood pricing and inventory management.

4. Using the Calculator

Example (Known Pieces): Calculate board feet for 5 pieces of 2x4 lumber (actual 1 1/2 x 3 1/2 inches), each 8 feet long, with a cost of $4.15 per board foot:

Input: Total Length: 8 (feet); Nominal Size: 2 x 4 (1 1/2 x 3 1/2 inches); Know Pieces: Yes; Pieces: 5; Cost per Board Foot: 4.15.
Board Feet per Piece: $ \frac{(8 \times 12) \times 3.5 \times 1.5}{144} \approx 5.3333 $.
Total Board Feet: $ 5.3333 \times 5 \approx 26.6667 $.
Cost per Piece: $ 5.3333 \times 4.15 \approx 22.1333 $.
Result: Board Feet per Piece: 5.3333; Number of Pieces: 5; Total Board Feet: 26.6667; Cost per Piece: $22.1333.

Example (Unknown Pieces): Calculate board feet for 2x4 lumber (actual 1 1/2 x 3 1/2 inches), 8 feet long, to cover 8.333 feet x 10 inches, with a cost of $4.15 per board foot:

Input: Total Length: 8 (feet); Nominal Size: 2 x 4 (1 1/2 x 3 1/2 inches); Know Pieces: No; Total Width: 8.333 (feet); Total Height: 10 (inches); Cost per Board Foot: 4.15.
Number of Pieces: $ \left\lceil \frac{(8.333 \times 12) \times 10}{3.5 \times 1.5} \right\rceil \approx \left\lceil 190.4762 \right\rceil = 191 $.
Board Feet per Piece: $ \frac{(8 \times 12) \times 3.5 \times 1.5}{144} \approx 5.3333 $.
Total Board Feet: $ 5.3333 \times 191 \approx 1018.6667 $.
Cost per Piece: $ 5.3333 \times 4.15 \approx 22.1333 $.
Result: Board Feet per Piece: 5.3333; Number of Pieces: 191; Total Board Feet: 1018.6667; Cost per Piece: $22.1333.

5. Frequently Asked Questions (FAQ)

Q: What is a board foot?
A: A board foot is a unit of volume for lumber, equal to 144 cubic inches (1 foot long, 1 foot wide, 1 inch thick)

Q: Why use actual dimensions instead of nominal?
A: Actual dimensions account for planing and drying, providing accurate volume calculations, unlike nominal sizes used for labeling

Q: How is the number of pieces calculated?
A: When unknown, the number of pieces is calculated as the ceiling of the total area (width times height) divided by the board’s cross-sectional area (width times thickness).
