1:16 Ramp Slope Calculator

Rise (Vertical Height):

Slope Ratio: Unassisted user, ADA comfortable slope (1:16)

Recommend: Ramp Slope Calculator

Slope Angle:

Degrees (°)

Elevation Grade:

Percent (%)

Run (Horizontal Length):

Ramp Length:

Meters (m)

1. What is the ADA Comfortable Slope (1:16) Ramp Calculator?

Definition: This calculator determines the slope angle, elevation grade, run, and ramp length for a ramp with a fixed 1:16 slope ratio, recommended by the Americans with Disabilities Act (ADA) as a comfortable slope for unassisted wheelchair users.

Purpose: It assists architects, builders, and individuals in designing ADA-compliant ramps that provide a gentler incline for enhanced comfort and accessibility in public and commercial spaces.

2. How Does the Calculator Work?

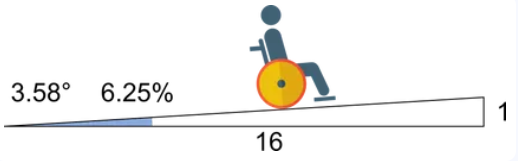

The calculator uses the following equations for a 1:16 slope ratio (1 unit rise per 16 units run):

Run: \( \text{Run} = \text{Rise} \times 16 \)
Ramp Length: \( L = \sqrt{\text{Rise}^2 + \text{Run}^2} \)
Slope Angle: \( \theta = \arctan\left(\frac{\text{Rise}}{\text{Run}}\right) \)
Elevation Grade: \( G = \frac{\text{Rise}}{\text{Run}} \times 100 \)

Where:

\( \text{Rise} \): Vertical height to overcome (cm, m, in, ft, or yd);
\( \text{Run} \): Horizontal length (m or ft);
\( L \): Ramp length, the hypotenuse (m or ft);
\( \theta \): Slope angle (degrees);
\( G \): Elevation grade (percent).

Steps:

Enter the rise and select its unit (cm, m, in, ft, or yd).
Convert rise to meters for calculations.
Calculate the run by multiplying rise by 16 (for 1:16 ratio).
Calculate the ramp length using the Pythagorean theorem.
Calculate the slope angle using arctangent.
Calculate the elevation grade as a percentage.
Convert run and ramp length to the selected output unit (m or ft).
Display results, formatted in scientific notation if the absolute value is less than 0.001, otherwise with 4 decimal places.

3. Importance of ADA Comfortable Slope (1:16) Calculation

Calculating the correct ramp dimensions for a 1:16 slope is critical for:

Accessibility: Provides a gentler incline for unassisted wheelchair users, enhancing comfort per ADA recommendations.
Safety: Maintains a slope of ~3.6° (6.25%) to minimize effort and reduce accident risks.
Compliance: Meets ADA guidelines and building codes for accessible ramps in public spaces.

4. Using the Calculator

Example: Calculate the ramp parameters for an ADA comfortable slope:

Rise: \( 0.5 \, \text{m} \);
Slope Ratio: 1:16 (ADA comfortable slope);
Output Unit: Meters;
Run: \( 0.5 \times 16 = 8 \, \text{m} \);
Ramp Length: \( \sqrt{0.5^2 + 8^2} \approx 8.0156 \, \text{m} \);
Slope Angle: \( \arctan\left(\frac{0.5}{8}\right) \approx 3.5763^\circ \);
Elevation Grade: \( \frac{0.5}{8} \times 100 = 6.25\% \);
Result: \( \theta = 3.5763^\circ, G = 6.2500\%, \text{Run} = 8.0000 \, \text{m}, L = 8.0156 \, \text{m} \).

5. Frequently Asked Questions (FAQ)

Q: What does the 1:16 slope ratio mean?
A: A 1:16 ratio means 1 unit of rise per 16 units of run, resulting in a slope of approximately 3.6° or 6.25%, recommended by ADA for a comfortable incline for unassisted wheelchair users.

Q: Does the calculator account for ramp landings?
A: No, it calculates the straight ramp segment. For ramps longer than 30 feet (9.14 m) under ADA, landings (minimum 60 in or 1.525 m long) must be added separately.

Q: Why is the 1:16 ratio preferred for comfort?
A: The 1:16 ratio offers a gentler slope than the ADA maximum (1:12), reducing effort for unassisted wheelchair users and enhancing accessibility in public and commercial settings.
