Front-of-Center (FOC) Calculator

1. What is a Front-of-Center (FOC) Calculator?

Definition: The FOC Calculator determines the Front-of-Center percentage for an arrow, which measures how far forward the balance point is relative to the arrow's midpoint, expressed as a percentage.

Purpose: It helps archers optimize arrow balance for better flight stability and accuracy, particularly in hunting or target shooting.

2. How Does the Calculator Work?

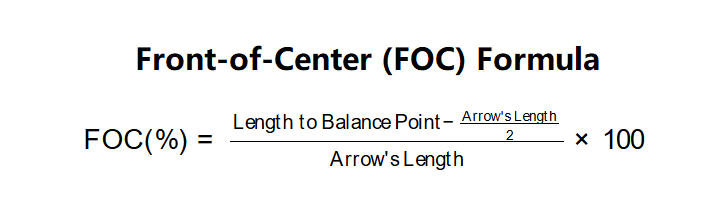

The calculator uses the following formula:

\( \text{FOC} (\%) = \frac{\text{Length to Balance Point} - \frac{\text{Arrow's Length}}{2}}{\text{Arrow's Length}} \times 100 \)

Where:

Arrow's Length (A): Total length of the arrow (in mm, cm, inch, or feet, converted to mm).
Length to Balance Point (B): Distance from the nock to the balance point (in mm, cm, inch, or feet, converted to mm).

Steps:

Enter the Arrow's Length (A) and Length to Balance Point (B), selecting the units (mm, cm, inch, or feet).
Validate inputs to ensure they are positive and the balance point is not greater than the arrow's length.
Convert all measurements to mm, apply the FOC formula, and calculate the percentage.
Display the FOC percentage to 2 decimal places.

3. Importance of FOC Calculation

Calculating FOC is crucial for:

Flight Stability: A proper FOC (typically 10-15% for target shooting, 15-20% for hunting) ensures stable arrow flight and better penetration.
Accuracy: Correct FOC improves arrow grouping and consistency in shooting.
Arrow Tuning: Helps archers adjust arrow components (e.g., point weight) to achieve the desired balance.

4. Using the Calculator

Example 1: An arrow with a length of 30 inches and a balance point at 18 inches:

Arrow's Length: 30 inches = 762 mm
Length to Balance Point: 18 inches = 457.2 mm
FOC: \( \frac{457.2 - \frac{762}{2}}{762} \times 100 = \frac{457.2 - 381}{762} \times 100 \approx 10.00\% \)

Example 2: An arrow with a length of 700 mm and a balance point at 400 mm:

Arrow's Length: 700 mm
Length to Balance Point: 400 mm
FOC: \( \frac{400 - \frac{700}{2}}{700} \times 100 = \frac{400 - 350}{700} \times 100 \approx 7.14\% \)

5. Frequently Asked Questions (FAQ)

Q: What is a good FOC percentage?
A: For target shooting, 10-15% is ideal; for hunting, 15-20% is recommended for better penetration and stability.

Q: How do I adjust my arrow's FOC?
A: Increase FOC by using a heavier arrow point or lighter fletching; decrease FOC by using a lighter point or heavier fletching.

Q: Why is FOC important for hunting?
A: A higher FOC improves penetration and stability, especially for broadhead arrows, leading to more effective shots.
