E-Bike Range Calculator

1. What is an E-Bike Range Calculator?

Definition: This calculator estimates the distance an e-bike can travel on a single charge, based on the battery capacity and the rider's riding style.

Purpose: It helps e-bike users plan their trips, understand the impact of riding style on range, and optimize battery usage for longer rides.

2. How Does the Calculator Work?

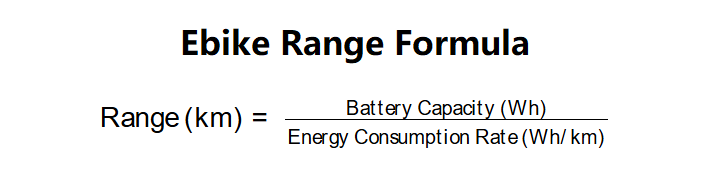

The calculator uses the following formula to determine the range:

\( \text{Range (km)} = \frac{\text{Battery Capacity (Wh)}}{\text{Energy Consumption Rate (Wh/km)}} \)

Where:

Energy Consumption Rates are based on riding style:

Efficient: \( \frac{10}{1.1} \approx 9.09 \, \text{Wh/km} \)
Average: \( \frac{10}{0.8} = 12.5 \, \text{Wh/km} \)
Extreme: \( \frac{10}{0.6} \approx 16.67 \, \text{Wh/km} \)

The range in miles is then calculated as:

\( \text{Range (mi)} = \text{Range (km)} \times 0.621371 \)

Steps:

Enter the Battery Capacity and select its unit (Wh or kWh).
Select the Riding Style (Efficient, Average, or Extreme).
Validate inputs to ensure they are non-negative and logical (e.g., Battery Capacity > 0).
Compute the Range in km, then convert to the selected unit (km or mi).
Display the Range with a dropdown to convert between km and mi.

3. Importance of E-Bike Range Calculation

Calculating the e-bike range is crucial for:

Trip Planning: Ensures riders know how far they can travel without recharging.
Efficiency Optimization: Helps riders adjust their riding style to maximize range.
Battery Management: Assists in managing battery usage for longer rides or multi-day trips.

4. Using the Calculator

Example 1: An e-bike has a 500 Wh battery, and the rider uses an Efficient riding style, preferring the range in kilometers:

Battery Capacity: 500 Wh
Riding Style: Efficient (\( \frac{10}{1.1} \approx 9.09 \, \text{Wh/km} \))
Range: \( 500 / 9.09 \approx 55.00 \, \text{km} \)
Result: Range = 55.00 km

Example 2: An e-bike has a 0.75 kWh battery, and the rider uses an Extreme riding style, preferring the range in miles:

Battery Capacity: \( 0.75 \times 1000 = 750 \, \text{Wh} \)
Riding Style: Extreme (\( \frac{10}{0.6} \approx 16.67 \, \text{Wh/km} \))
Range (km): \( 750 / 16.67 \approx 45.00 \, \text{km} \)
Range (mi): \( 45.00 \times 0.621371 \approx 27.96 \, \text{mi} \)
Result: Range = 27.96 mi

5. Frequently Asked Questions (FAQ)

Q: What does riding style mean in this context?
A: Riding style reflects how aggressively you use the e-bike’s motor. "Efficient" means minimal motor use (e.g., mostly pedaling), "Average" means moderate motor use, and "Extreme" means heavy motor use (e.g., high speed, frequent acceleration).

Q: How does battery capacity affect range?
A: Higher battery capacity (more Wh) increases the range, as there is more energy available for the ride.

Q: Can I improve my e-bike’s range?
A: Yes, by adopting an efficient riding style, reducing speed, avoiding steep climbs, and maintaining proper tire pressure to lower rolling resistance.
