1. What is a Cycling Wattage Calculator?

Definition: This calculator estimates the power output (in watts) and power-to-weight ratio (in W/kg) required by a cyclist to maintain a specific speed, accounting for factors such as weight, speed, grade, wind resistance, rolling resistance, and drivetrain efficiency.

Purpose: It helps cyclists understand their power requirements, optimize training, and improve performance by considering environmental and equipment factors, including the power-to-weight ratio, which is critical for climbing and competitive cycling.

2. How Does the Calculator Work?

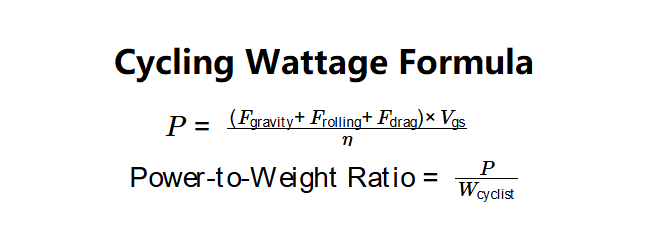

The calculator uses the following formula to compute the total power at the pedals:

\( P = \frac{\left( F_{\text{gravity}} + F_{\text{rolling}} + F_{\text{drag}} \right) \times V_{\text{gs}}}{\eta} \)

Where:

\( F_{\text{gravity}} \): Gravitational force, calculated as \( 9.8067 \cdot \sin\left(\arctan\left(\frac{G}{100}\right)\right) \cdot W \).
\( F_{\text{rolling}} \): Rolling resistance, calculated as \( 9.8067 \cdot \cos\left(\arctan\left(\frac{G}{100}\right)\right) \cdot W \cdot C_{rr} \).
\( F_{\text{drag}} \): Air resistance, calculated as \( 0.5 \cdot C_d \cdot A \cdot \rho \cdot (V_{\text{as}})^2 \).
\( V_{\text{gs}} \): Ground speed (m/s).
\( \eta \): Drivetrain efficiency, calculated as \( 1 - (0.015 + \text{chain loss}) \), where chain loss is 0.03, 0.04, or 0.05.

The power-to-weight ratio is then computed as:

\( \text{Power-to-Weight Ratio} = \frac{P}{W_{\text{cyclist}}} \)

Where \( W_{\text{cyclist}} \) is the cyclist’s weight in kg.

Steps:

Enter the Cyclist Weight and Bike Weight, selecting their units (kg or lbs).
Enter the Speed and select its unit (km/h or mph).
Enter the Grade (%), Headwind Speed, and select its unit (km/h or mph).
Select the Tire Type, Surface Type, Position, and Chain Condition.
Enter the Air Density (kg/m³).
Validate inputs to ensure they are non-negative and logical (e.g., Speed > 0).
Compute the power output considering all forces and drivetrain efficiency, calculate the power-to-weight ratio, and display both results.

3. Importance of Cycling Wattage Calculation

Calculating cycling wattage and power-to-weight ratio is crucial for:

Performance Tracking: Helps cyclists measure their effort and monitor improvements over time.
Training Optimization: Allows cyclists to target specific power zones for training purposes.
Race Planning: Assists in determining sustainable power output for races or long rides, especially when considering power-to-weight ratio for climbs.
Climbing Efficiency: Power-to-weight ratio is a key metric for assessing climbing ability, as lighter cyclists with high power output have an advantage on uphill sections.

4. Using the Calculator

Example 1: A cyclist weighs 70 kg, rides a 10 kg bike on asphalt with slick tires, at 30 km/h on a flat road (0% grade), with no headwind, in the aerobars position, air density of 1.225 kg/m³, and a new chain:

Cyclist Weight: 70 kg
Bike Weight: 10 kg
Total Weight: \( 70 + 10 = 80 \, \text{kg} \)
Speed: \( 30 \times 0.277778 = 8.33 \, \text{m/s} \)
Grade: 0%
Headwind: 0 m/s
Airspeed: \( 8.33 \, \text{m/s} \)
Crr: 0.0050 (Asphalt, slick)
CdA: 0.2914 (Aerobars)
Air Density: 1.225 kg/m³
Chain Condition: New (3% loss)
Gravitational Force: \( 9.8067 \cdot \sin(0) \cdot 80 = 0 \, \text{N} \)
Rolling Resistance: \( 9.8067 \cdot \cos(0) \cdot 80 \cdot 0.0050 = 3.92 \, \text{N} \)
Air Resistance: \( 0.5 \cdot 0.2914 \cdot 1.225 \cdot 8.33^2 = 12.37 \, \text{N} \)
Total Force: \( 0 + 3.92 + 12.37 = 16.29 \, \text{N} \)
Power at Wheels: \( 16.29 \cdot 8.33 = 135.70 \, \text{W} \)
Efficiency: \( 1 - (0.015 + 0.03) = 0.955 \)
Total Power: \( 135.70 / 0.955 \approx 142.09 \, \text{W} \)
Power-to-Weight Ratio: \( 142.09 / 70 \approx 2.03 \, \text{W/kg} \)
Result: Power = 142.09 Watts, Power-to-Weight Ratio = 2.03 W/kg

Example 2: A cyclist weighs 150 lbs, rides a 20 lbs bike on gravel with knobby tires, at 15 mph on a 5% grade, with a 10 mph headwind, in the tops position, air density of 1.225 kg/m³, and an old chain:

Cyclist Weight: \( 150 \times 0.453592 = 68.04 \, \text{kg} \)
Bike Weight: \( 20 \times 0.453592 = 9.07 \, \text{kg} \)
Total Weight: \( 68.04 + 9.07 = 77.11 \, \text{kg} \)
Speed: \( 15 \times 0.44704 = 6.71 \, \text{m/s} \)
Grade: 5%
Headwind: \( 10 \times 0.44704 = 4.47 \, \text{m/s} \)
Airspeed: \( 6.71 + 4.47 = 11.18 \, \text{m/s} \)
Crr: 0.0076 (Gravel, knobby)
CdA: 0.408 (Tops)
Air Density: 1.225 kg/m³
Chain Condition: Old (5% loss)
Gravitational Force: \( 9.8067 \cdot \sin\left(\arctan\left(\frac{5}{100}\right)\right) \cdot 77.11 = 37.70 \, \text{N} \)
Rolling Resistance: \( 9.8067 \cdot \cos\left(\arctan\left(\frac{5}{100}\right)\right) \cdot 77.11 \cdot 0.0076 = 5.74 \, \text{N} \)
Air Resistance: \( 0.5 \cdot 0.408 \cdot 1.225 \cdot 11.18^2 = 31.20 \, \text{N} \)
Total Force: \( 37.70 + 5.74 + 31.20 = 74.64 \, \text{N} \)
Power at Wheels: \( 74.64 \cdot 6.71 = 500.84 \, \text{W} \)
Efficiency: \( 1 - (0.015 + 0.05) = 0.935 \)
Total Power: \( 500.84 / 0.935 \approx 535.65 \, \text{W} \)
Power-to-Weight Ratio: \( 535.65 / 68.04 \approx 7.87 \, \text{W/kg} \)
Result: Power = 535.65 Watts, Power-to-Weight Ratio = 7.87 W/kg

5. Frequently Asked Questions (FAQ)

Q: What factors affect cycling power?
A: Cycling power is affected by the cyclist’s weight, bike weight, speed, slope (grade), wind resistance, rolling resistance (tire and surface type), riding position, and drivetrain efficiency.

Q: How does chain condition impact power?
A: The chain condition affects drivetrain efficiency. A new, well-oiled chain has a 3% loss, a dry chain has a 4% loss, and an old, elongated chain has a 5% loss, in addition to the 1.5% pulley loss.

Q: Why is air density important?
A: Air density impacts air resistance. Higher air density (e.g., at lower altitudes or colder temperatures) increases drag, requiring more power to maintain the same speed.

Q: What is the power-to-weight ratio, and why is it important?
A: The power-to-weight ratio (W/kg) measures a cyclist’s power output per kilogram of body weight. It’s crucial for assessing climbing ability and overall performance, especially in competitive cycling.

Q: How does riding position affect power requirements?
A: The riding position affects air resistance through the CdA value. Aerodynamic positions like Aerobars (CdA = 0.2914) reduce drag compared to upright positions like Tops (CdA = 0.408), lowering the power needed.
