1. What is the Wind Power Calculator?

Definition: This calculator computes the theoretical power (\( P \)) available in the wind based on the wind speed, blade length (to determine the swept area), and air density. It is a fundamental calculation for assessing the potential energy that a wind turbine can harness.

Purpose: It is used in renewable energy studies and wind turbine design to estimate the maximum power that can be extracted from the wind, aiding in site selection and turbine sizing.

2. How Does the Calculator Work?

The calculator uses the following formulas:

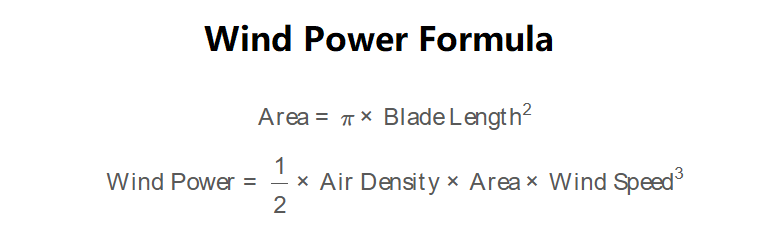

Formulas: \[ \text{Area} = \pi \times \text{Blade Length}^2 \] \[ \text{Wind Power} = \frac{1}{2} \times \text{Air Density} \times \text{Area} \times \text{Wind Speed}^3 \] where:

• \( \text{Area} \): Swept area of the turbine blades (m²)
• \( \text{Blade Length} \): Length of the turbine blade (mm, cm, dm, m, in, ft, yd)
• \( \text{Air Density} \): Density of air (kg/m³ or lb/ft³, default 1.23 kg/m³ at 15°C and sea level)
• \( \text{Wind Speed} \): Speed of the wind (m/s, km/h, mph, knots, km/s, mi/s, mi/min, km/min)
• \( \text{Wind Power} \): Theoretical power in the wind (W, kW, MW, hp)

Unit Conversions:

• Wind Speed:
  • 1 m/s = 1 m/s
  • 1 km/h = 0.277778 m/s
  • 1 mph = 0.44704 m/s
  • 1 knot = 0.514444 m/s
  • 1 km/s = 1000 m/s
  • 1 mi/s = 1609.34 m/s
  • 1 mi/min = 26.8224 m/s
  • 1 km/min = 16.6667 m/s
• Blade Length:
  • 1 mm = 0.001 m
  • 1 cm = 0.01 m
  • 1 dm = 0.1 m
  • 1 m = 1 m
  • 1 in = 0.0254 m
  • 1 ft = 0.3048 m
  • 1 yd = 0.9144 m
• Air Density:
  • 1 kg/m³ = 1 kg/m³
  • 1 lb/ft³ = 16.0185 kg/m³
• Wind Power:
  • 1 W = 1 W
  • 1 kW = 1000 W
  • 1 MW = 1000000 W
  • 1 hp = 745.7 W

Steps:

• Enter the wind speed in m/s, km/h, mph, knots, km/s, mi/s, mi/min, or km/min (default is 10 m/s, step size 0.00001).
• Enter the blade length in mm, cm, dm, m, in, ft, or yd (default is 50 m, step size 0.00001).
• Enter the air density in kg/m³ or lb/ft³ (default is 1.23 kg/m³ at 15°C and sea level, step size 0.00001).
• Convert all inputs to SI units (m/s for wind speed, m for blade length, kg/m³ for air density).
• Calculate the swept area using \( \pi \times \text{Blade Length}^2 \).
• Calculate the wind power using \( \frac{1}{2} \times \text{Air Density} \times \text{Area} \times \text{Wind Speed}^3 \).
• Convert the wind power to the selected unit.
• Display the result, using scientific notation if the absolute value is less than 0.001, otherwise rounded to 2 decimal places.

3. Importance of Wind Power Calculation

Calculating wind power is crucial for:

• Renewable Energy Assessment: Determining the potential energy output of a wind turbine site.
• Turbine Design: Optimizing blade length and turbine placement for maximum efficiency.
• Environmental Impact: Promoting sustainable energy solutions by harnessing wind power effectively.

4. Using the Calculator

Examples:

• Example 1: Calculate the wind power for a turbine with a blade length of 50 m, wind speed of 20 m/s, and air density of 1.23 kg/m³, with power in W:
  • Enter \( \text{Wind Speed} = 20 \) m/s.
  • Enter \( \text{Blade Length} = 50 \) m.
  • Enter \( \text{Air Density} = 1.23 \) kg/m³.
  • Area: \( \pi \times 50^2 = 7850 \, \text{m}^2 \).
  • Wind power: \( \frac{1}{2} \times 1.23 \times 7850 \times 20^3 = 38647500 \, \text{W} \).
  • Result: \( \text{Wind Power} = 38647500.00 \, \text{W} \).
• Example 2: Calculate the wind power for a turbine with a blade length of 1000 in, wind speed of 0.01 m/s, and air density of 0.00001 kg/m³, with power in kW:
  • Enter \( \text{Wind Speed} = 0.01 \) m/s.
  • Enter \( \text{Blade Length} = 1000 \) in.
  • Convert to m: \( 1000 \times 0.0254 = 25.4 \, \text{m} \).
  • Enter \( \text{Air Density} = 0.00001 \) kg/m³.
  • Area: \( \pi \times 25.4^2 = 2026.83 \, \text{m}^2 \).
  • Wind power: \( \frac{1}{2} \times 0.00001 \times 2026.83 \times (0.01)^3 = 0.000010134 \, \text{W} \).
  • Convert to kW: \( 0.000010134 \times 0.001 = 0.000000010134 \), use scientific notation: \( 1.0134 \times 10^{-8} \).
  • Result: \( \text{Wind Power} = 1.0134 \times 10^{-8} \, \text{kW} \).

5. Frequently Asked Questions (FAQ)

Q: What is wind power?
A: Wind power is the theoretical energy available in the wind, which can be converted into electrical energy using a wind turbine.

Q: Why does blade length matter?
A: Blade length determines the swept area of the turbine. A larger area captures more wind, increasing the potential power output.

Q: How does air density affect wind power?
A: Higher air density increases the wind power, as there are more air particles to interact with the turbine blades. Air density varies with temperature, humidity, and altitude.
