Welded Joint Strength Calculator ( Different width )

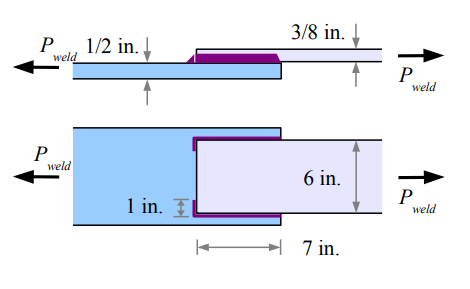

Welded Joint Strength Calculator ( Different widths ) - Joint Strength and Efficiency

Plate Thickness:

Plate Width:

Weld Size:

Weld Length (including end return):

Electrode Tensile Strength:

Allowable Tensile Strength:

Unit Converter ▲

Unit Converter ▼

From:	To:

1. What is the Welded Joint Strength Calculator?

Definition: The Welded Joint Strength Calculator determines the maximum load a welded joint can support and its efficiency compared to the base metal, reporting results in kips.

Purpose: Assists engineers in analyzing weld joint strength and ensuring structural integrity.

Reference:Applied Strength of Materials for Engineering Technology

http://www.etcs.pfw.edu/~dupenb/ET_200/Applied%20Str%20of%20Mat%20for%20ET%20v14%20July%202018.pdf

2. How Does the Calculator Work?

Formula:

\( P_{weld} = 0.212 \cdot L \cdot \sigma_{UTS} \)

Where:

\( P_{weld} \): Joint strength (kips)
\( L \): Total weld length (in)
\( \sigma_{UTS} \): Tensile strength of the electrode (ksi)

\( Efficiency = \frac{P_{weld}}{P_g} \cdot 100 \)

Where:

\( P_g \): Gross plate strength (kips)

Steps:

Step 1: Input Plate Thickness. Enter the thickness (e.g., 0.375 in).
Step 2: Input Plate Width. Enter the width (e.g., 6 in).
Step 3: Input Weld Size. Enter the weld size (e.g., 0.1875 in).
Step 4: Input Weld Length. Enter the total length including end return (e.g., 8 in).
Step 5: Input Electrode Tensile Strength. Enter the strength (e.g., 90 ksi).
Step 6: Input Allowable Tensile Strength. Enter the strength (e.g., 30.0 ksi).
Step 7: Calculate. The calculator computes joint strength and efficiency.

3. Importance of Welded Joint Calculation

Calculating weld joint strength is crucial for:

Joint Integrity: Ensures welds can withstand applied loads.
Design Safety: Prevents failure at the weld or base metal.

4. Using the Calculator

Example: Plate Thickness = 0.375 in, Plate Width = 6 in, Weld Size = 0.1875 in, Weld Length = 8 in, Electrode Strength = 90 ksi, Tensile Strength = 30.0 ksi:

Step 1: \( P_{weld} = 0.212 \cdot 8 \cdot 90 = 152.64 \, \text{kips} \).
Step 2: \( P_g = 6 \cdot 0.375 \cdot 30.0 = 67.5 \, \text{kips} \).
Step 3: \( Efficiency = \frac{152.64}{67.5} \cdot 100 \approx 226\% \).

5. Frequently Asked Questions (FAQ)

Q: What is joint efficiency?
A: Joint efficiency is the ratio of joint strength to base metal strength, expressed as a percentage.

Q: Why use kips?
A: Kips is a standard unit for load in engineering calculations.
