1. What is the Stress Calculator?

Definition: The Stress Calculator determines the stress (σ) caused by a force (P) acting on an area (A) using the formula \( \sigma = \frac{P}{A} \), converting the result to pounds per square inch (psi).

Purpose: Assists engineers in calculating stress for structural analysis and safety assessments.

Reference:Applied Strength of Materials for Engineering Technology

http://www.etcs.pfw.edu/~dupenb/ET_200/Applied%20Str%20of%20Mat%20for%20ET%20v14%20July%202018.pdf

2. How Does the Calculator Work?

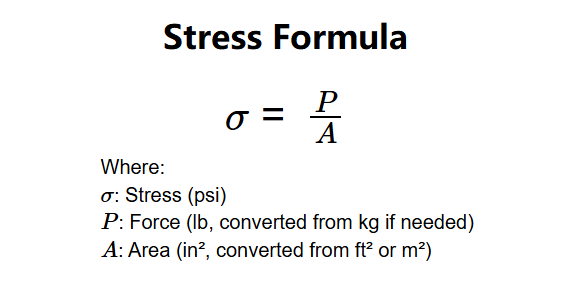

Formula:

Where:

• \( \sigma \): Stress (psi)
• \( P \): Force (lb, converted from kg if needed)
• \( A \): Area (in², converted from ft² or m²)

Steps:

• Step 1: Input Force. Enter the force value (e.g., 7000 lb or kg).
• Step 2: Input Area. Enter the area (e.g., 3 ft² or m²).
• Step 3: Calculate. The calculator converts units and computes stress in psi.

3. Importance of Stress Calculation

Calculating stress is crucial for:

• Structural Integrity: Ensures materials can withstand applied forces.
• Design Safety: Prevents failure due to excessive stress.
• Unit Consistency: Supports conversions from lb/kg and ft²/m² to psi.

4. Using the Calculator

Example: Force = 7000 lb, Area = 3 ft²:

• Step 1: \( P = 7000 \) lb.
• Step 2: \( A = 3 \) ft² = 432 in².
• Step 3: \( \sigma = \frac{7000}{432} \approx 16.2 \) psi.

Example with kg: Force = 3175 kg, Area = 3 ft²:

• Step 1: \( P = 3175 \) kg = 7000 lb (3175 × 2.20462).
• Step 2: \( A = 3 \) ft² = 432 in².
• Step 3: \( \sigma = \frac{7000}{432} \approx 16.2 \) psi.

5. Frequently Asked Questions (FAQ)

Q: What is stress?
A: Stress is the force per unit area applied to a material.

Q: Why convert units?
A: The calculator converts kg to lb and area to square inches for standard psi output.

Q: Is this accurate for all materials?
A: Yes, if the force and area are correctly measured.
