Steam Flow (Napier) Calculator

1. What is the Steam Flow (Napier) Calculator?

Definition: The Steam Flow (Napier) Calculator estimates the steam flow rate (\( SF \)) using the formula \( SF = 24.24 \times P_{abs} \times D^2 \), based on absolute pressure (\( P_{abs} \)) and orifice diameter (\( D \)). Results are displayed in both lb/h and kg/h, with unit conversions for pressure (psig/psia) and diameter (inches/centimeters) handled automatically.

Purpose: Assists engineers and technicians in estimating steam flow through an orifice for designing and operating boilers, steam turbines, and industrial processes, ensuring efficiency and safety.

Source: https://www.epa.gov/sites/default/files/2016-05/documents/17_womack_presentation.pdf

2. How Does the Calculator Work?

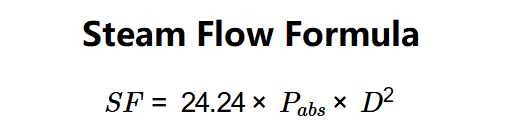

The calculator computes the steam flow using the following formula:

Formula:

\( SF = 24.24 \times P_{abs} \times D^2 \)

Where:

\( SF \): Steam flow rate (lb/h)
\( P_{abs} \): Absolute pressure (psia)
\( D \): Orifice diameter (in)

Steps:

Step 1: Input Pressure. Enter the pressure in psig or psia (converted to psia internally).
Step 2: Input Orifice Diameter. Enter the diameter in inches or centimeters (converted to inches internally).
Step 3: Calculate. The calculator computes the steam flow in both lb/h and kg/h.

3. Importance of Steam Flow Calculation

Calculating steam flow is crucial for:

Efficiency: Optimizes the performance of boilers and steam turbines by ensuring accurate flow rates.
Safety: Prevents overpressure or equipment failure by maintaining proper steam flow.
Design: Aids in sizing orifices and pipelines for industrial processes.

4. Using the Calculator

Example: Pressure = 100 psig, Orifice diameter = 5.08 cm:

Step 1: \( P = 100 \) psig (converted to 114.7 psia).
Step 2: \( D = 5.08 \) cm (converted to 2 in).
Step 3: \( SF = 24.24 \times 114.7 \times 2^2 = 24.24 \times 114.7 \times 4 = 11116.75 \) lb/h.
Conversion: \( 11116.75 \, lb/h \times 0.45359237 = 5042.32 \, kg/h \).
Results: Steam Flow = 11116.75 lb/h and 5042.32 kg/h.

This shows that for a pressure of 100 psig and a 5.08 cm orifice, the steam flow is approximately 11116.75 lb/h or 5042.32 kg/h.

5. Frequently Asked Questions (FAQ)

Q: What is the difference between psig and psia?
A: Psig is gauge pressure (relative to atmospheric pressure), while psia is absolute pressure (psig + 14.7 psia at sea level). The calculator converts psig to psia internally.

Q: Why is the constant 24.24 used in the formula?
A: The constant 24.24 is derived from empirical data in the Napier equation, accounting for steam properties and flow characteristics through an orifice.

Q: Can this calculator be used for other fluids?
A: The Napier formula is specific to steam flow. For other fluids, different equations or constants may be required.
