Shelf Load Capacity Calculator

Material Strength (\( MS \)):

Shelf Width (\( W \)):

Shelf Thickness (\( T \)):

Shelf Length (\( L \)):

1. What is the Shelf Load Capacity Calculator?

Definition: The Shelf Load Capacity Calculator estimates the maximum weight (\( LC \)) a shelf can support using the formula \( LC = \frac{4}{3} \times \frac{MS \times W \times T^2}{L} \), based on material strength (\( MS \)), shelf width (\( W \)), thickness (\( T \)), and length (\( L \)). Units for material strength (PSI/kPa) and dimensions (inches/cm/feet) are convertible, with results in pounds (lb), kilograms (kg), and newtons (N).

Purpose: Helps users determine the safe load capacity of shelves to prevent collapse, ensuring safety and protecting stored items in residential or commercial settings.

Source:https://mdon.library.pfw.edu/digital/api/collection/p16776coll2/id/4359/download#page=155

2. How Does the Calculator Work?

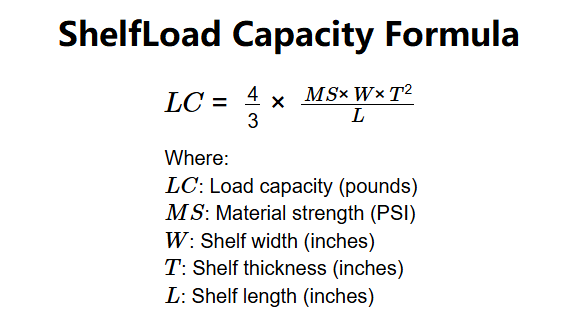

The calculator computes the load capacity using the following formula:

Formula:

\( LC = \frac{4}{3} \times \frac{MS \times W \times T^2}{L} \)

Where:

\( LC \): Load capacity (pounds)
\( MS \): Material strength (PSI)
\( W \): Shelf width (inches)
\( T \): Shelf thickness (inches)
\( L \): Shelf length (inches)

Steps:

Step 1: Input Material Strength. Enter the material strength in PSI or kPa (converted to PSI internally).
Step 2: Input Shelf Width. Enter the width in inches, centimeters, or feet (converted to inches internally).
Step 3: Input Shelf Thickness. Enter the thickness in inches, centimeters, or feet (converted to inches internally).
Step 4: Input Shelf Length. Enter the length in inches, centimeters, or feet (converted to inches internally).
Step 5: Calculate. The calculator computes the load capacity in lb, kg, and N.

Note: The document specifies \( LC = \frac{4}{3} \times \frac{MS \times W \times T^2}{L} \), but the example and some online sources use \( LC = \frac{MS \times W \times T^2}{8 \times L} \). The calculator uses the document's formula; for the alternative, multiply the result by \( \frac{8}{3} \approx 2.6667 \).

3. Importance of Shelf Load Capacity Calculation

Calculating shelf load capacity is crucial for:

Safety: Prevents shelf collapse, protecting users and stored items.
Design: Ensures shelves are built with appropriate dimensions and materials.
Efficiency: Optimizes storage without overloading.

4. Using the Calculator

Example: Material strength = 3000 PSI, Shelf width = 24 inches, Shelf thickness = 1.5 inches, Shelf length = 48 inches:

Step 1: \( MS = 3000 \, PSI \).
Step 2: \( W = 24 \, inches \).
Step 3: \( T = 1.5 \, inches \).
Step 4: \( L = 48 \, inches \).
Step 5: \( LC = \frac{4}{3} \times \frac{3000 \times 24 \times (1.5)^2}{48} = \frac{4}{3} \times \frac{162000}{48} = \frac{4}{3} \times 3375 = 4500 \, lb \).
Conversion: \( 4500 \, lb \times 0.45359237 = 2041.17 \, kg \), \( 4500 \, lb \times 4.4482216 = 20017 \, N \).
Results: Load Capacity = 4500 lb, 2041.17 kg, 20017 N.

Using the alternative formula (\( \frac{MS \times W \times T^2}{8 \times L} \)): \( \frac{3000 \times 24 \times 2.25}{8 \times 48} = \frac{162000}{384} \approx 422 \, lb \).

5. Frequently Asked Questions (FAQ)

Q: What affects shelf load capacity?
A: Material strength, shelf dimensions (width, thickness, length), and support structure.

Q: How do I find material strength?
A: Consult material data sheets or engineering references for the specific wood, metal, or composite used.

Q: Can this formula apply to all materials?
A: This formula is a general estimate; actual capacity may vary with material type and support conditions.
