1. What is the Shear Stress Calculator?

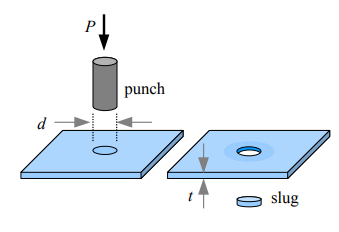

Definition: The Shear Stress Calculator determines the shear stress (\(\tau\)) on a sheet when a punch cuts through it, using the formula \(\tau = \frac{P}{A}\), where \(P\) is the load, and \(A\) is the area of the cut edge (circumference times thickness).

Purpose: Helps engineers calculate the shear stress during punching operations.

Reference:Applied Strength of Materials for Engineering Technology

http://www.etcs.pfw.edu/~dupenb/ET_200/Applied%20Str%20of%20Mat%20for%20ET%20v14%20July%202018.pdf

2. How Does the Calculator Work?

Formula:

Where:

• \(\tau\): Shear stress (MPa)
• \(P\): Load (converted to kN)
• \(A\): Area (\(\pi d \cdot t\), where \(d\) and \(t\) are converted to mm)

Steps:

• Step 1: Input Load. Enter the punch force (e.g., 6 kN or 1349 lb).
• Step 2: Input Diameter. Enter the punch diameter (e.g., 4 cm, 40 mm, or 1.57 in).
• Step 3: Input Thickness. Enter the sheet thickness (e.g., 3 mm, 0.3 cm, or 0.12 in).
• Step 4: Calculate. The calculator computes the shear stress in MPa.

3. Importance of Shear Stress Calculation

Calculating shear stress is crucial for:

• Material Strength: Ensures the sheet can withstand the cutting force.
• Design Optimization: Helps determine appropriate punch and sheet dimensions.
• Unit Consistency: Supports conversions across metric and imperial units.

4. Using the Calculator

Example (Metric): Load = 6 kN, Diameter = 4 cm (40 mm), Thickness = 3 mm:

• Step 1: \(P = 6 \, \text{kN}\).
• Step 2: \(A = \pi \cdot 40 \cdot 3 = 376.99 \, \text{mm}^2\).
• Step 3: \(\tau = \frac{6}{376.99} \cdot 1000 = 15.9 \, \text{MPa}\).

Example (Imperial): Load = 1349 lb, Diameter = 1.57 in (39.9 mm), Thickness = 0.12 in (3.05 mm):

• Step 1: \(P = 1349 \cdot 0.00444822 \approx 6 \, \text{kN}\).
• Step 2: \(A = \pi \cdot 39.9 \cdot 3.05 \approx 381.7 \, \text{mm}^2\).
• Step 3: \(\tau = \frac{6}{381.7} \cdot 1000 \approx 15.7 \, \text{MPa}\).

5. Frequently Asked Questions (FAQ)

Q: What is shear stress?
A: Shear stress is the force per unit area acting parallel to the surface being cut.

Q: Can I use imperial units?
A: Yes, the calculator converts lb, in to kN, mm internally for consistent results.

Q: Is this accurate for all materials?
A: Yes, if the load, diameter, and thickness are correctly measured.
