SINAD to ENOB Calculator

1. What is SINAD to ENOB Calculator?

Definition: This calculator converts SINAD (Signal-to-Noise and Distortion Ratio) in decibels (dB) to ENOB (Effective Number of Bits), a measure of the effective resolution of an analog-to-digital converter (ADC).

Purpose: It is used in RF engineering, audio engineering, and electronics to evaluate the performance of ADCs and other systems by determining their effective resolution based on noise and distortion.

2. How Does the Calculator Work?

The calculator uses the following formula:

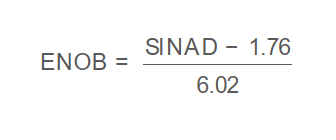

Formula: \[ \text{ENOB} = \frac{\text{SINAD} - 1.76}{6.02} \] Where:

\( \text{ENOB} \): Effective Number of Bits (bits)
\( \text{SINAD} \): Signal-to-Noise and Distortion Ratio (dB)

Unit Conversions:

SINAD: Measured in decibels (dB), no conversion needed
ENOB: Measured in bits, no conversion needed

Steps:

Enter the SINAD value in decibels (dB).
Calculate \( \text{ENOB} = \frac{\text{SINAD} - 1.76}{6.02} \).
Display the result, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of SINAD to ENOB Calculation

Calculating ENOB from SINAD is crucial for:

Electronics: Assessing the quality of analog-to-digital converters (ADCs) in terms of effective resolution.
RF Engineering: Evaluating the performance of RF systems where signal fidelity is critical.
Audio Engineering: Measuring the quality of audio systems by determining the effective bit depth in the presence of noise and distortion.

4. Using the Calculator

Examples:

Example 1: For \( \text{SINAD} = 60 \, \text{dB} \):
- \( \text{ENOB} = \frac{60 - 1.76}{6.02} \)
- \( \text{ENOB} = \frac{58.24}{6.02} \approx 9.6744 \, \text{bits} \)
Example 2: For \( \text{SINAD} = 92 \, \text{dB} \):
- \( \text{ENOB} = \frac{92 - 1.76}{6.02} \)
- \( \text{ENOB} = \frac{90.24}{6.02} \approx 14.9900 \, \text{bits} \)

5. Frequently Asked Questions (FAQ)

Q: What is SINAD?
A: SINAD (Signal-to-Noise and Distortion Ratio) is a measure of signal quality that includes both noise and distortion, expressed in decibels (dB).

Q: What does ENOB represent?
A: ENOB (Effective Number of Bits) indicates the effective resolution of an ADC, accounting for noise and distortion, as if it were an ideal converter.

Q: How is SINAD to ENOB conversion used in real life?
A: It is used in designing and testing ADCs for applications like telecommunications, audio processing, and medical imaging, ensuring accurate signal conversion.
