Return Loss to Reflection Coefficient Calculator

Return Loss to Reflection Coefficient Formula

1. What is the Return Loss to Reflection Coefficient Calculator?

Definition: This calculator computes the magnitude of the reflection coefficient (\( |\Gamma| \)) of an RF system given the Return Loss (RL), which measures the amount of power reflected due to an impedance mismatch.

Purpose: It assists RF engineers, technicians, and students in evaluating signal reflection in RF systems, helping to assess impedance matching and optimize power transfer efficiency.

2. How Does the Calculator Work?

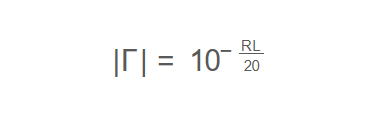

The calculator uses the formula:

\( |\Gamma| = 10^{-\frac{\text{RL}}{20}} \)

Where:

\( |\Gamma| \): Magnitude of the reflection coefficient (unitless, 0 to 1)
RL: Return Loss (dB)

Steps:

Enter the Return Loss (RL) in dB, which must be non-negative.
Compute the reflection coefficient magnitude using the formula.
Display the result, formatted in scientific notation if the value is less than 0.001 or greater than 10000, otherwise with 4 decimal places.

3. Importance of Reflection Coefficient Calculation

Calculating the reflection coefficient is essential for:

Impedance Matching: Identifying mismatches to ensure maximum power transfer in RF systems.
Signal Quality: Minimizing reflections to reduce signal loss and interference.
System Performance: Optimizing RF components like antennas and transmission lines.
Efficiency: Improving overall system efficiency by understanding reflected power.

4. Using the Calculator

Example 1: Calculate the reflection coefficient for a perfectly matched system:

Return Loss: \( \text{RL} = \infty \, \text{dB} \)
Calculation: As RL approaches infinity, \( |\Gamma| \to 0 \), but since infinity cannot be input, consider a very large RL:
- Let RL = 100 dB
- \( |\Gamma| = 10^{-\frac{100}{20}} = 10^{-5} = 0.00001 \)
Result: Reflection Coefficient Magnitude (|Γ|) = 1.0000e-5

Example 2: Calculate the reflection coefficient for a typical mismatch:

Return Loss: \( \text{RL} = 13.9794 \, \text{dB} \)
Calculation:
- \( |\Gamma| = 10^{-\frac{13.9794}{20}} \approx 10^{-0.69897} \approx 0.2 \)
Result: Reflection Coefficient Magnitude (|Γ|) = 0.2000

Example 3: Calculate the reflection coefficient for total reflection:

Return Loss: \( \text{RL} = 0 \, \text{dB} \)
Calculation:
- \( |\Gamma| = 10^{-\frac{0}{20}} = 10^0 = 1 \)
Result: Reflection Coefficient Magnitude (|Γ|) = 1.0000

5. Frequently Asked Questions (FAQ)

Q: Why is the Return Loss input restricted to non-negative values?
A: In RF applications, Return Loss is typically a positive value representing the loss due to reflection. Negative values are not physically meaningful in this context.

Q: What does a reflection coefficient of 0 mean?
A: A \( |\Gamma| = 0 \) indicates perfect impedance matching, with no reflected power (infinite Return Loss).

Q: What does a reflection coefficient of 1 mean?
A: A \( |\Gamma| = 1 \) indicates total reflection, meaning all power is reflected back (Return Loss = 0 dB), typically due to an open or short circuit.

Q: Why is the result formatted in scientific notation?
A: Values less than 0.001 or greater than 10000 are displayed in scientific notation for readability.
