Reflection Coefficient to VSWR Calculator

1. What is the Reflection Coefficient to VSWR Calculator?

Definition: This calculator computes the Voltage Standing Wave Ratio (VSWR) of an RF transmission line given the magnitude of the reflection coefficient (\( |\Gamma| \)), which measures the impedance mismatch in the system.

Purpose: It assists RF engineers, technicians, and students in evaluating impedance matching in RF systems, helping to optimize power transfer and minimize signal reflections.

2. How Does the Calculator Work?

The calculator uses the formula:

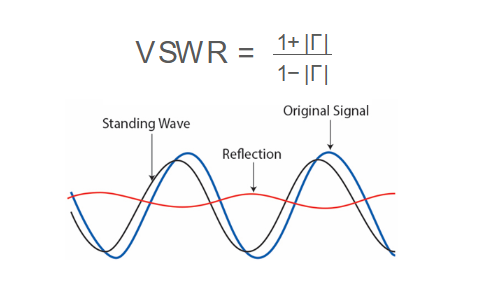

\( \text{VSWR} = \frac{1 + |\Gamma|}{1 - |\Gamma|} \)

Where:

VSWR: Voltage Standing Wave Ratio (unitless)
\( |\Gamma| \): Magnitude of the reflection coefficient (unitless, 0 to 1)

Steps:

Enter the magnitude of the reflection coefficient (\( |\Gamma| \)), which must be between 0 and 1.
Compute the VSWR using the formula.
Display the result, formatted in scientific notation if the value is less than 0.001 or greater than 10000, otherwise with 4 decimal places.

3. Importance of VSWR Calculation

Calculating VSWR is essential for:

Impedance Matching: Ensuring maximum power transfer by minimizing reflections in RF systems.
Signal Quality: Reducing signal loss and interference in communication systems.
System Design: Evaluating RF components like antennas, amplifiers, and transmission lines.
Efficiency: Improving the performance of RF circuits by identifying mismatches.

4. Using the Calculator

Example 1: Calculate VSWR for a perfectly matched system:

Reflection Coefficient Magnitude: \( |\Gamma| = 0 \)
Calculation:
- VSWR: \( \frac{1 + 0}{1 - 0} = 1 \)
Result: VSWR = 1.0000

Example 2: Calculate VSWR for a typical mismatch:

Reflection Coefficient Magnitude: \( |\Gamma| = 0.2 \)
Calculation:
- VSWR: \( \frac{1 + 0.2}{1 - 0.2} = \frac{1.2}{0.8} = 1.5 \)
Result: VSWR = 1.5000

Example 3: Calculate VSWR for total reflection:

Reflection Coefficient Magnitude: \( |\Gamma| = 1 \)
Result: An error is displayed because \( |\Gamma| = 1 \) causes division by zero in the formula.

5. Frequently Asked Questions (FAQ)

Q: Why is the reflection coefficient magnitude limited to 0 to 1?
A: Physically, the magnitude of the reflection coefficient cannot exceed 1, as it represents the ratio of reflected to incident power, and reflected power cannot exceed incident power.

Q: Why do I get an error for a reflection coefficient of 1?
A: A reflection coefficient magnitude of 1 causes division by zero in the formula, as the denominator becomes zero.

Q: What does a VSWR of 1 mean?
A: A VSWR of 1 indicates perfect impedance matching, with no reflected power (\( |\Gamma| = 0 \)).

Q: Why is the result formatted in scientific notation?
A: Values less than 0.001 or greater than 10000 are displayed in scientific notation for readability.
