1. What is Poise-Stokes Converter Calculator?
Definition: This calculator converts between dynamic viscosity (\( \eta \)) in poise (P) and kinematic viscosity (\( \nu \)) in stokes (St), using the density (\( \rho \)) of the fluid.
Purpose: It is used in fluid dynamics to convert viscosity units for fluids, essential for engineering applications like hydraulic systems, lubrication, and flow analysis.
2. How Does the Calculator Work?

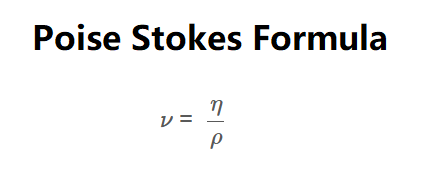

The calculator uses the following formula:
Formula:
\[
\nu = \frac{\eta}{\rho}
\]
Where:
- \( \nu \): Kinematic viscosity (St, cSt, m²/s)
- \( \eta \): Dynamic viscosity (P, cP, Pa·s)
- \( \rho \): Density (g/cm³, kg/m³, lb/ft³)
Unit Conversions:
- Dynamic Viscosity (\( \eta \)):
- 1 P = 1 P
- 1 cP = 0.01 P
- 1 Pa·s = 10 P
- Kinematic Viscosity (\( \nu \)):
- 1 St = 1 St
- 1 cSt = 0.01 St
- 1 m²/s = 10000 St
- Density (\( \rho \)):
- 1 g/cm³ = 1 g/cm³
- 1 kg/m³ = 0.001 g/cm³
- 1 lb/ft³ = 0.0160185 g/cm³
Steps:
- Select the calculation type: Poise to Stokes (\( \eta \) to \( \nu \)) or Stokes to Poise (\( \nu \) to \( \eta \)).
- Enter the dynamic viscosity (\( \eta \)) or kinematic viscosity (\( \nu \)) with its respective unit, depending on the calculation type.
- Enter the density (\( \rho \)) with its respective unit (g/cm³, kg/m³, lb/ft³).
- Convert all inputs to base units (P for \( \eta \), St for \( \nu \), g/cm³ for \( \rho \)).
- Calculate the result using \( \nu = \frac{\eta}{\rho} \) or \( \eta = \nu \times \rho \).
- Convert the result to the selected output unit and display it, using scientific notation for values less than 0.001, otherwise with 4 decimal places.
3. Importance of Poise-Stokes Conversion
Converting between poise and stokes is crucial for:
- Fluid Dynamics: Understanding fluid behavior in engineering applications, such as flow in pipes or lubrication systems.
- Material Selection: Selecting fluids with appropriate viscosity for specific applications, such as oils in machinery.
- Consistency: Converting between dynamic and kinematic viscosity units for compatibility with different engineering standards.
4. Using the Calculator
Examples:
- Example 1: Convert a dynamic viscosity of 100 cP to kinematic viscosity for a fluid with a density of 0.8 g/cm³, with result in centistokes (cSt):
- Select "Poise to Stokes" calculation type.
- Enter \( \eta = 100 \) cP.
- Convert to P: \( \eta = 100 \times 0.01 = 1 \, \text{P} \)
- Enter \( \rho = 0.8 \) g/cm³.
- Kinematic viscosity: \( \nu = \frac{1}{0.8} = 1.25 \, \text{St} \)
- Convert to cSt: \( \nu = 1.25 \times 100 = 125 \, \text{cSt} \)
- Result: \( \nu = 125.0000 \, \text{cSt} \)
- Example 2: Convert a kinematic viscosity of 50 cSt to dynamic viscosity for a fluid with a density of 1000 kg/m³, with result in centipoise (cP):
- Select "Stokes to Poise" calculation type.
- Enter \( \nu = 50 \) cSt.
- Convert to St: \( \nu = 50 \times 0.01 = 0.5 \, \text{St} \)
- Enter \( \rho = 1000 \) kg/m³.
- Convert to g/cm³: \( \rho = 1000 \times 0.001 = 1 \, \text{g/cm³} \)
- Dynamic viscosity: \( \eta = 0.5 \times 1 = 0.5 \, \text{P} \)
- Convert to cP: \( \eta = 0.5 \times 100 = 50 \, \text{cP} \)
- Result: \( \eta = 50.0000 \, \text{cP} \)
5. Frequently Asked Questions (FAQ)
Q: What is the difference between dynamic and kinematic viscosity?
A: Dynamic viscosity (\( \eta \)) measures a fluid's resistance to flow (in poise), while kinematic viscosity (\( \nu \)) is the dynamic viscosity divided by density (in stokes), representing the fluid's flow behavior relative to its mass.
Q: Why is density needed for the conversion?
A: Density (\( \rho \)) relates dynamic and kinematic viscosity through the formula \( \nu = \frac{\eta}{\rho} \). Without density, the conversion cannot be performed.
Q: What are common units for viscosity in engineering?
A: Dynamic viscosity is often measured in centipoise (cP) or Pascal-seconds (Pa·s), while kinematic viscosity is commonly measured in centistokes (cSt) or square meters per second (m²/s).
