1. What is a Parabolic Reflector Antenna Calculator?

Definition: This calculator determines the gain, half power beamwidth (HPBW), and effective aperture of a parabolic reflector antenna based on its operating frequency and diameter.

Purpose: It is used in RF engineering to evaluate the performance of parabolic antennas, commonly used in satellite communications, radar systems, and microwave links.

2. How Does the Calculator Work?

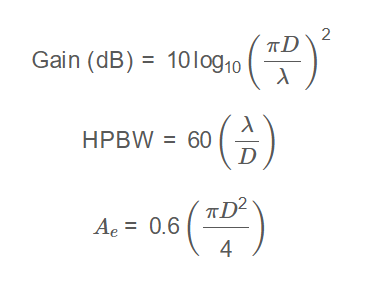

The calculator uses the following formulas:

Formulas: \[ \text{Gain (dB)} = 10 \log_{10} \left( \frac{\pi D}{\lambda} \right)^2 \] \[ \text{HPBW} = 60 \left( \frac{\lambda}{D} \right) \] \[ A_e = 0.6 \left( \frac{\pi D^2}{4} \right) \] Where:

• \( D \): Diameter of the parabolic reflector (m)
• \( \lambda \): Wavelength (m), calculated as \( \lambda = \frac{c}{f} \), where \( c = 3 \times 10^8 \, \text{m/s} \), \( f \): Frequency (Hz)
• \( \text{Gain} \): Antenna gain (dB)
• \( \text{HPBW} \): Half Power Beamwidth (degrees)
• \( A_e \): Effective Aperture (m²)

Unit Conversions:

• Frequency:
  • 1 Hz = 1 Hertz
  • 1 kHz = 1,000 Hz
  • 1 MHz = 1,000,000 Hz
  • 1 GHz = 1,000,000,000 Hz
• Diameter:
  • 1 m = 1 meter
  • 1 cm = 0.01 m
  • 1 mm = 0.001 m
  • 1 ft = 0.3048 m
  • 1 in = 0.0254 m
• Effective Aperture:
  • 1 m² = 1 square meter
  • 1 cm² = 0.0001 m²
  • 1 mm² = 0.000001 m²
  • 1 ft² = 0.092903 m²
  • 1 in² = 0.00064516 m²

Steps:

• Enter the Operating Frequency (positive value) and select the unit (Hz, kHz, MHz, GHz).
• Enter the Diameter (positive value) and select the unit (m, cm, mm, ft, in).
• Convert frequency to Hz and diameter to meters.
• Calculate the wavelength \( \lambda = \frac{c}{f} \).
• Compute Gain, HPBW, and Effective Aperture using the formulas.
• Convert the Effective Aperture to the selected unit (m², cm², mm², ft², in²).
• Display the results, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Parabolic Reflector Antenna Calculations

Calculating the Gain, HPBW, and Effective Aperture is crucial for:

• Antenna Design: Optimizing the performance of parabolic antennas for specific applications.
• Communication Systems: Ensuring efficient signal transmission in satellite and microwave systems.
• Radar Systems: Determining the beamwidth and gain for accurate target detection.

4. Using the Calculator

Examples:

• Example 1: For \( f = 3 \, \text{GHz} \), \( D = 2 \, \text{m} \):
  • Frequency: \( f = 3 \times 10^9 \, \text{Hz} \)
  • Wavelength: \( \lambda = \frac{3 \times 10^8}{3 \times 10^9} = 0.1 \, \text{m} \)
  • Gain: \( \text{Gain (dB)} = 10 \log_{10} \left( \frac{\pi \times 2}{0.1} \right)^2 \approx 10 \log_{10} (62.8319^2) \approx 10 \log_{10} (3947.8423) \approx 35.9635 \, \text{dB} \)
  • HPBW: \( \text{HPBW} = 60 \left( \frac{0.1}{2} \right) = 60 \times 0.05 = 3.0000 \, \text{degrees} \)
  • Effective Aperture: \( A_e = 0.6 \left( \frac{\pi \times 2^2}{4} \right) = 0.6 \times \frac{\pi \times 4}{4} = 0.6 \times \pi \approx 1.8850 \, \text{m}^2 \)
• Example 2: For \( f = 10 \, \text{GHz} \), \( D = 20 \, \text{in} \), Effective Aperture in ft²:
  • Frequency: \( f = 10 \times 10^9 \, \text{Hz} \)
  • Diameter: \( D = 20 \times 0.0254 = 0.508 \, \text{m} \)
  • Wavelength: \( \lambda = \frac{3 \times 10^8}{10 \times 10^9} = 0.03 \, \text{m} \)
  • Gain: \( \text{Gain (dB)} = 10 \log_{10} \left( \frac{\pi \times 0.508}{0.03} \right)^2 \approx 10 \log_{10} (53.0936^2) \approx 34.4993 \, \text{dB} \)
  • HPBW: \( \text{HPBW} = 60 \left( \frac{0.03}{0.508} \right) \approx 3.5433 \, \text{degrees} \)
  • Effective Aperture: \( A_e = 0.6 \left( \frac{\pi \times 0.508^2}{4} \right) \approx 0.1217 \, \text{m}^2 \)
  • Convert to ft²: \( 0.1217 \times 10.7639 = 1.3100 \, \text{ft}^2 \)

5. Frequently Asked Questions (FAQ)

Q: What is the significance of the Gain in dB?
A: Gain in dB measures the antenna's ability to direct energy in a particular direction, crucial for long-distance communication.

Q: Why is HPBW important?
A: HPBW indicates the angular width of the main beam, affecting the antenna's focus and coverage area.

Q: How does the diameter affect the antenna performance?
A: A larger diameter increases the gain and effective aperture but reduces the HPBW, making the beam narrower and more focused.
