Light Transmission Loss Calculator

1. What is a Transmission Loss Calculator?

Definition: This calculator determines the reflection loss and transmitted light percentage based on Fresnel's Law when light passes between two media with different refractive indices.

Purpose: Useful in designing optical systems like lenses, filters, and mirrors.

2. How Does the Calculator Work?

The calculator uses the following steps:

Step 1: Ratio of Refractive Indices

\( n_\lambda = \frac{n_2}{n_1} \)

Where:

\( n_1 \): Refractive index of the first medium
\( n_2 \): Refractive index of the second medium

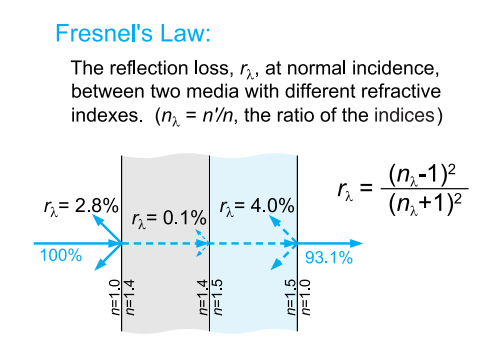

Step 2: Fresnel's Law

\( r_\lambda = \left(\frac{n_\lambda - 1}{n_\lambda + 1}\right)^2 \times 100 \)

Where:

\( r_\lambda \): Reflection loss percentage

Step 3: Transmitted Light

\( \text{Transmitted} = 100 - r_\lambda \)

Steps:

Enter the refractive indices of the two media.
Calculate the reflection loss using Fresnel's Law.
Determine the transmitted light percentage.

3. Importance of Transmission Losses

Understanding transmission losses is crucial for:

Optics: Optimizing lenses and filters in cameras and telescopes.
Precision Systems: Using first surface mirrors to minimize losses.
Lighting: Enhancing efficiency in projectors and displays.

4. Using the Calculator

Example 1: \( n_1 = 1 \) (air), \( n_2 = 1.5 \) (glass):

Ratio: \( n_\lambda = \frac{1.5}{1} = 1.5 \)
Reflection Loss: \( r_\lambda = \left(\frac{1.5 - 1}{1.5 + 1}\right)^2 \times 100 = \left(\frac{0.5}{2.5}\right)^2 \times 100 = 4\% \)
Transmitted Light: \( 100 - 4 = 96\% \)
Result: Reflection Loss = 4%, Transmitted = 96%

5. Frequently Asked Questions (FAQ)

Q: What does reflection loss represent?
A: The percentage of light reflected at the boundary between two media.

Q: Why use first surface mirrors?
A: To avoid losses from entering and exiting a glass substrate.

Q: Where to find refractive indices?
A: Refer to material properties or optical tables.
