Frequency Stability (Hz to PPM) Calculator

Center Frequency (\( f_{\text{center}} \)):

Frequency Variation (\( \Delta f \)):

1. What is Frequency Stability (Hz to PPM) Calculator?

Definition: This calculator converts frequency variation (\( \Delta f \)) to frequency stability in parts per million (ppm) relative to a center frequency (\( f_{\text{center}} \)).

Purpose: It is used in RF engineering, telecommunications, and electronics to quantify the stability of oscillators and frequency sources, which is critical for signal integrity and system performance.

2. How Does the Calculator Work?

The calculator uses the following formula:

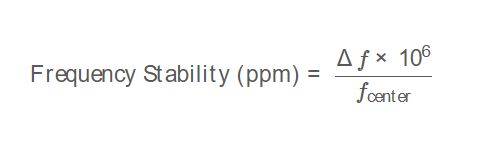

Formula: \[ \text{Frequency Stability (ppm)} = \frac{\Delta f \times 10^6}{f_{\text{center}}} \] Where:

\( \Delta f \): Frequency Variation (Hz, kHz, MHz, GHz, THz)
\( f_{\text{center}} \): Center Frequency (Hz, kHz, MHz, GHz, THz)

Unit Conversions:

Frequency (\( f_{\text{center}}, \Delta f \)):
- 1 Hz = 1 Hertz
- 1 kHz = 1,000 Hz
- 1 MHz = 1,000,000 Hz
- 1 GHz = 1,000,000,000 Hz
- 1 THz = 1,000,000,000,000 Hz
Frequency Stability: Expressed in parts per million (ppm), a dimensionless unit

Steps:

Enter the center frequency (\( f_{\text{center}} \)) and frequency variation (\( \Delta f \)) with their respective units (Hz, kHz, MHz, GHz, THz).
Convert both frequencies to Hertz.
Calculate \( \text{ppm} = \frac{\Delta f \times 10^6}{f_{\text{center}}} \).
Display the result, using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Frequency Stability Calculation

Calculating frequency stability in PPM is crucial for:

RF Engineering: Ensuring the accuracy of oscillators in RF circuits and systems.
Telecommunications: Maintaining signal integrity in wireless communication systems by minimizing frequency drift.
Electronics: Designing stable clocks for digital systems, such as microprocessors and communication devices.

4. Using the Calculator

Examples:

Example 1: For \( f_{\text{center}} = 10 \, \text{MHz} \), \( \Delta f = 100 \, \text{Hz} \):
- Convert to Hertz: \( f_{\text{center}} = 10,000,000 \, \text{Hz} \), \( \Delta f = 100 \, \text{Hz} \)
- \( \text{ppm} = \frac{100 \times 10^6}{10,000,000} = 10 \, \text{ppm} \)
Example 2: For \( f_{\text{center}} = 2.4 \, \text{GHz} \), \( \Delta f = 1 \, \text{kHz} \):
- Convert to Hertz: \( f_{\text{center}} = 2,400,000,000 \, \text{Hz} \), \( \Delta f = 1,000 \, \text{Hz} \)
- \( \text{ppm} = \frac{1,000 \times 10^6}{2,400,000,000} \approx 0.4167 \, \text{ppm} \)

5. Frequently Asked Questions (FAQ)

Q: What does PPM stand for in frequency stability?
A: PPM stands for parts per million, a unit that measures the relative frequency variation compared to the center frequency.

Q: Why is frequency stability important?
A: Frequency stability ensures that oscillators and frequency sources maintain consistent performance, which is critical for reliable communication and timing in electronic systems.

Q: How is frequency stability used in real life?
A: It is used in designing stable frequency sources for GPS systems, cellular networks, and precision timing applications like atomic clocks.
