1. What is the Final Temperature Calculator?

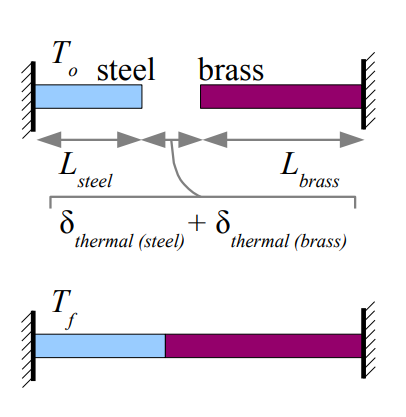

Definition: This calculator determines the final temperature \( T_f \) at which two cantilever beams (steel and brass) meet due to thermal expansion, given an initial gap and material properties.

Purpose: Helps predict temperature-induced closure of gaps in bimetallic structures.

Reference:Applied Strength of Materials for Engineering Technology

http://www.etcs.pfw.edu/~dupenb/ET_200/Applied%20Str%20of%20Mat%20for%20ET%20v14%20July%202018.pdf

2. How Does the Calculator Work?

Formula:

\(\Delta T = \frac{\delta_{total}}{\alpha_{steel} L_{steel} + \alpha_{brass} L_{brass}}\), \(T_f = T_0 + \Delta T\)

Where:

\(\delta_{total}\): Initial gap between beams
\(\alpha_{steel}, \alpha_{brass}\): Coefficients of thermal expansion
\(L_{steel}, L_{brass}\): Lengths of steel and brass beams
\(\Delta T\): Temperature change
\(T_0\): Initial temperature
\(T_f\): Final temperature

Steps:

Step 1: Input Initial Gap. Enter the initial gap (e.g., 0.1 mm).
Step 2: Input Lengths. Enter lengths of steel and brass beams.
Step 3: Input Coefficients. Enter thermal expansion coefficients for both materials.
Step 4: Input Initial Temperature. Enter the starting temperature.
Step 5: Calculate. The calculator computes the final temperature.

3. Importance of Final Temperature Calculation

Calculating the final temperature is crucial for:

Design Safety: Ensures proper fit and function under temperature changes.
Material Compatibility: Accounts for differing expansion rates.
Unit Consistency: Supports metric and imperial unit conversions.

4. Using the Calculator

Example: Gap = 0.1 mm, \( L_{steel} = 100 \, \text{cm} \), \( L_{brass} = 100 \, \text{cm} \), \( \alpha_{steel} = 0.000012 \, /°C \), \( \alpha_{brass} = 0.000019 \, /°C \), \( T_0 = 20 \, °C \):

Step 1: \(\Delta T = \frac{0.0001}{0.000012 \cdot 1 + 0.000019 \cdot 1} \approx 3.33 \, °C\).
Step 2: \( T_f = 20 + 3.33 \approx 23.33 \, °C \).

5. Frequently Asked Questions (FAQ)

Q: What if coefficients differ significantly?
A: The calculator adjusts based on the relative expansion rates.

Q: Can I use Fahrenheit?
A: Yes, the calculator converts °F to °C internally.

Q: Is this accurate for all lengths?
A: Yes, as long as lengths and coefficients are correctly input.
