1. What is a Fuel Injector Flow Calculator?

Definition: This calculator estimates the required fuel injector flow rate (in cc/min or lb/hr) for an internal combustion engine based on its horsepower, number of cylinders, fuel pressure, aspiration, fuel type, and maximum injector duty cycle.

Purpose: It helps automotive enthusiasts, tuners, and engineers select appropriately sized fuel injectors to achieve target engine performance, ensuring proper fuel delivery for optimal power and reliability.

2. How Does the Calculator Work?

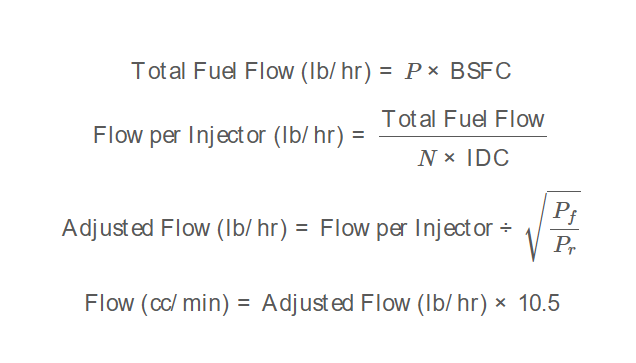

The calculator uses the following formula to determine the fuel flow rate per injector, with an option to select a custom Brake Specific Fuel Consumption (BSFC) for unique engine setups:

Equations: \[ \text{Total Fuel Flow (lb/hr)} = P \times \text{BSFC} \] \[ \text{Flow per Injector (lb/hr)} = \frac{\text{Total Fuel Flow}}{N \times \text{IDC}} \] \[ \text{Adjusted Flow (lb/hr)} = \text{Flow per Injector} \div \sqrt{\frac{P_f}{P_r}} \] \[ \text{Flow (cc/min)} = \text{Adjusted Flow (lb/hr)} \times 10.5 \] Where:

• \(P\): Horsepower (hp)
• \(\text{BSFC}\): Brake Specific Fuel Consumption (lb/hp·hr)
• \(N\): Number of cylinders
• \(\text{IDC}\): Maximum injector duty cycle (decimal, e.g., 0.9 for 90%)
• \(P_f\): Fuel pressure (psi)
• \(P_r\): Rated pressure (43.5 psi)

BSFC Values:

• Gasoline: Naturally Aspirated (0.50), Turbocharged/Supercharged (0.60)
• E85: Naturally Aspirated (0.70), Turbocharged/Supercharged (0.84)
• Methanol: Naturally Aspirated (1.00), Turbocharged/Supercharged (1.20)
• Custom: User-defined BSFC (0.1 to 2.0 lb/hp·hr) for unique engine configurations

Unit Conversions:

• Power: hp, kW (1 kW = 1.34102 hp)
• Fuel Pressure: psi, bar (1 bar = 14.5038 psi)
• Flow Rate: cc/min, lb/hr (1 lb/hr ≈ 10.5 cc/min for gasoline)

Steps:

• Enter the number of cylinders (\(N\)).
• Enter the fuel pressure (\(P_f\)), selecting the unit (psi, bar).
• Select the engine aspiration (naturally aspirated, turbocharged, supercharged, or custom). If custom, enter a BSFC value (lb/hp·hr).
• Select the fuel type (gasoline, E85, methanol).
• Enter the target horsepower (\(P\)), selecting the unit (hp, kW).
• Enter the maximum injector duty cycle (\(\text{IDC}\), %).
• Convert inputs to standard units (psi, hp).
• Calculate the required flow rate using the equations.
• View results in cc/min and lb/hr.

3. Importance of Fuel Injector Flow Calculation

Calculating the correct fuel injector size is crucial for:

• Performance: Ensuring sufficient fuel delivery for target horsepower.
• Reliability: Preventing lean conditions that could damage the engine.
• Tuning: Optimizing air-fuel ratios for efficiency and power.
• Upgrades: Selecting injectors for modified or high-performance engines.

4. Using the Calculator

Example: For a turbocharged V8 engine with 1000 hp, 8 cylinders, 43.5 psi fuel pressure, gasoline fuel, and 90% maximum IDC, compared to a custom engine with a BSFC of 0.55 lb/hp·hr:

• Standard Turbocharged Case:
  • Inputs:
    • Number of cylinders: 8
    • Fuel pressure: 43.5 psi
    • Aspiration: Turbocharged (BSFC = 0.60)
    • Fuel type: Gasoline
    • Horsepower: 1000 hp
    • Maximum IDC: 90% (0.9)
  • Calculations:
    • Total Fuel Flow: \( 1000 \times 0.60 = 600 \, \text{lb/hr} \)
    • Flow per Injector: \( \frac{600}{8 \times 0.9} \approx 83.333 \, \text{lb/hr} \)
    • Pressure Adjustment: \( \frac{43.5}{43.5} = 1 \), so \( 83.333 \div \sqrt{1} = 83.333 \, \text{lb/hr} \)
    • Flow in cc/min: \( 83.333 \times 10.5 \approx 875.0 \, \text{cc/min} \)
  • Results:
    • Flow Rate: 875.0 cc/min
    • Flow Rate: 83.3 lb/hr
• Custom Aspiration Case:
  • Inputs:
    • Number of cylinders: 8
    • Fuel pressure: 43.5 psi
    • Aspiration: Custom (BSFC = 0.55)
    • Fuel type: Gasoline
    • Horsepower: 1000 hp
    • Maximum IDC: 90% (0.9)
  • Calculations:
    • Total Fuel Flow: \( 1000 \times 0.55 = 550 \, \text{lb/hr} \)
    • Flow per Injector: \( \frac{550}{8 \times 0.9} \approx 76.389 \, \text{lb/hr} \)
    • Pressure Adjustment: \( \frac{43.5}{43.5} = 1 \), so \( 76.389 \div \sqrt{1} = 76.389 \, \text{lb/hr} \)
    • Flow in cc/min: \( 76.389 \times 10.5 \approx 802.1 \, \text{cc/min} \)
  • Results:
    • Flow Rate: 802.1 cc/min
    • Flow Rate: 76.4 lb/hr

5. Frequently Asked Questions (FAQ)

Q: What is Brake Specific Fuel Consumption (BSFC)?
A: BSFC is a measure of fuel efficiency, indicating the pounds of fuel required per horsepower per hour (lb/hp·hr). It varies by fuel type and engine aspiration.

Q: Why is maximum injector duty cycle important?
A: IDC represents the percentage of time an injector is open. Keeping IDC below 90% ensures reliability and prevents injector overheating or failure.

Q: How does fuel pressure affect injector flow?
A: Flow rate scales with the square root of the pressure ratio (actual vs. rated pressure). Higher pressure increases flow, requiring adjustment in calculations.

Q: Can I use this calculator for any engine?
A: Yes, the custom aspiration option allows you to enter a specific BSFC for highly modified engines or unique fuels, ensuring accurate calculations.

Q: Why can I enter a custom BSFC?
A: The custom BSFC option accommodates engines with non-standard aspiration or tuning, allowing precise injector sizing for unique configurations.
