Electric Motor Voltage Calculator

How to Calculate Electric Motor Voltage

The Electric Motor Voltage Calculator computes the voltage for AC motors based on power (in HP, kW, or W), amps, power factor, efficiency, and phase type. The formulas used are:

Single-Phase AC Motor (kW):

\( V = \frac{P [kW] \times 1000}{I \times \cos \phi \times \eta} \)

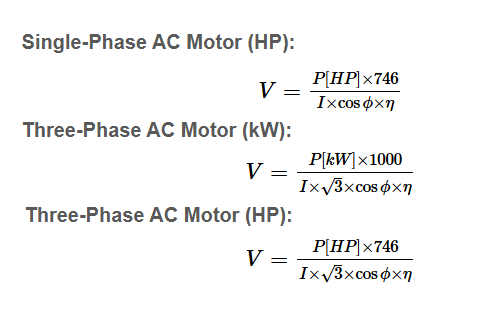

Single-Phase AC Motor (HP):

\( V = \frac{P [HP] \times 746}{I \times \cos \phi \times \eta} \)

Single-Phase AC Motor (W):

\( V = \frac{P [W]}{I \times \cos \phi \times \eta} \)

Three-Phase AC Motor (kW):

\( V = \frac{P [kW] \times 1000}{I \times \sqrt{3} \times \cos \phi \times \eta} \)

Three-Phase AC Motor (HP):

\( V = \frac{P [HP] \times 746}{I \times \sqrt{3} \times \cos \phi \times \eta} \)

Three-Phase AC Motor (W):

\( V = \frac{P [W]}{I \times \sqrt{3} \times \cos \phi \times \eta} \)

Where:

\( V \): Voltage (Volts).
\( P [HP] \), \( P [kW] \), \( P [W] \): Motor power rating (HP, kW, or W).
\( I \): Amps (A).
\( \eta \): Motor efficiency as a decimal (e.g., 0.85 for 85%).
\( \cos \phi \): Motor power factor as a decimal (e.g., 0.8 for 80%).
1000: Conversion factor from kW to W.
746: Conversion factor from HP to W.

Enter the power, unit (HP/kW/W), amps, power factor, efficiency, and phase type to calculate the voltage.

Using the Electric Motor Voltage Calculator

This calculator is useful for electrical engineers and technicians to determine the required voltage for AC motors based on known power, current, and other parameters.

Input the power rating, select the unit (HP/kW/W), amps, power factor (default: 0.8), efficiency (default: 0.85), and phase type. The calculator outputs the voltage in volts.

Example: Calculate voltage for a 3731 W single-phase AC motor with 23.860 A, 0.85 efficiency, and 0.8 power factor.

Power: \( 3731 \, \text{W} \)
Amps: \( 23.860 \, \text{A} \)
Calculation: \( V = \frac{3731}{23.860 \times 0.8 \times 0.85} = 230.000 \, \text{V} \)
Result: \( \approx 230 \, \text{V} \)

Use this tool for precise motor voltage calculations in design and maintenance.

Common FAQ

Below are frequently asked questions about Electric Motor Voltage calculations:

Q: What is the difference between single-phase and three-phase calculations?
A: Three-phase uses a √3 factor to account for the phase distribution, resulting in higher voltage for the same power and amps compared to single-phase.
Q: Why include efficiency and power factor?
A: Efficiency adjusts for real-world losses, and power factor accounts for the phase difference in AC systems.
Q: How accurate is this calculator?
A: It uses standard formulas with precise conversion factors, providing results rounded to 3 decimal places.
Q: Can I use this for DC motors?
A: No, this calculator is for AC motors only; DC motors do not use power factor.
Q: What if power factor or efficiency is unknown?
A: Use typical values (0.8 for PF, 0.85 for η) or consult motor nameplate data.
