Audio Wavelength and Wavenumber Calculator

Calculation Mode:

Audio Speed (v):

Audio frequency (f):

Wavelength (λ):

Wavenumber (k): 1/m

1. What is a Sound Wavelength and Wavenumber Calculator?

Definition: This calculator computes the wavelength and wavenumber of a sound wave given its speed and frequency, or the frequency given the speed and wavelength. Wavelength (\( \lambda \)) is the distance between consecutive wave crests, and wavenumber (\( k \)) is the number of waves per unit distance.

Purpose: It is used in acoustics, physics, and engineering to analyze sound wave properties, aiding in the design of musical instruments, audio equipment, and noise control systems.

2. How Does the Calculator Work?

The calculator operates in two modes:

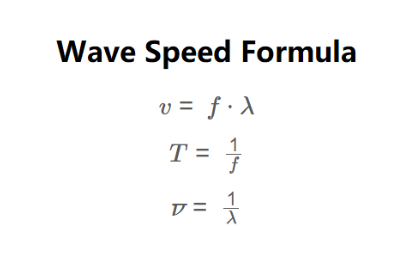

Calculate Wavelength and Wavenumber: \[ \lambda = \frac{v}{f} \] \[ k = \frac{1}{\lambda} \] Calculate Frequency: \[ f = \frac{v}{\lambda} \] Where:

\( \lambda \): Wavelength (m, nm, μm, mm, cm, km, in, ft, yd, mi)
\( k \): Wavenumber (1/m)
\( v \): Wave speed (m/s, km/h, ft/s, mph, knots, light speed, cm/s)
\( f \): Frequency (Hz, kHz, MHz, GHz)

Unit Conversions:

Wave Speed: m/s, km/h (1 km/h = 0.277777778 m/s), ft/s (1 ft/s = 0.3048 m/s), mph (1 mph = 0.44704 m/s), knots (1 knot = 0.514444 m/s), light speed (c = 299792458 m/s), cm/s (1 cm/s = 0.01 m/s)
Frequency: Hz, kHz (1 kHz = 1000 Hz), MHz (1 MHz = 1,000,000 Hz), GHz (1 GHz = 1,000,000,000 Hz)
Wavelength: m, nm (1 nm = 1e-9 m), μm (1 μm = 1e-6 m), mm (1 mm = 1e-3 m), cm (1 cm = 1e-2 m), km (1 km = 1000 m), in (1 in = 0.0254 m), ft (1 ft = 0.3048 m), yd (1 yd = 0.9144 m), mi (1 mi = 1609.34 m)

Explanation: Inputs are converted to SI units (m/s for speed, Hz for frequency, m for wavelength), the calculation is performed, and results are converted to the chosen output unit. Results use scientific notation for values < 0.0001 or > 100,000.

Steps:

Select the calculation mode (Wavelength and Wavenumber or Frequency).
Choose a predefined wave speed or select "Custom Speed" to input a value, selecting the unit.
For wavelength mode, choose a predefined frequency or select "Custom Frequency" to input a value, selecting the unit.
For frequency mode, input the wavelength, selecting the unit.
Click “Calculate” to compute the result.
Select the desired unit for the result and view the converted value.

3. Importance of Sound Wavelength and Wavenumber Calculation

Calculating wavelength and wavenumber is crucial for:

Acoustics: Designing musical instruments and audio systems.
Noise Control: Analyzing sound propagation for noise reduction.
Physics Education: Understanding wave properties in educational settings.

MIDI note	Frequency (Hz)	Description
0	8.17578125	Lowest organ note
12	16.3515625	Lowest note for tuba, large pipe organs, Bösendorfer Imperial grand piano
24	32.703125	Lowest C on a standard 88-key piano
36	65.40625	Lowest note for cello
48	130.8125	Lowest note for viola, mandola
60	261.625	Middle C
72	523.25	C in middle of treble clef
84	1,046.5	Approximately the highest note reproducible by the average female human voice
96	2,093	Highest note for a flute
108	4,186	Highest note on a standard 88-key piano
120	8,372
132	16,744	Approximately the tone that a typical CRT television emits while running.

4. Using the Calculator

Examples:

Example 1 (Wavelength and Wavenumber): Wave speed \( v = 343 \, \text{m/s} \) (sound in air at 20°C), frequency \( f = 261.625 \, \text{Hz} \) (Middle C):
- Wavelength: \( \lambda = \frac{343}{261.625} \approx 1.311 \, \text{m} \)
- Wavenumber: \( k = \frac{1}{1.311} \approx 0.763 \, \text{1/m} \)
Example 2 (Wavelength, High Frequency): Wave speed \( v = 343 \, \text{m/s} \), frequency \( f = 16744 \, \text{Hz} \) (CRT television tone):
- Wavelength: \( \lambda = \frac{343}{16744} \approx 0.020485 \, \text{m} = 20.485 \, \text{mm} \)
- Wavenumber: \( k = \frac{1}{0.020485} \approx 48.815 \, \text{1/m} \)
Example 3 (Frequency, Small Wavelength): Wave speed \( v = 343 \, \text{m/s} \), wavelength \( \lambda = 0.020485 \, \text{m} \):
- Frequency: \( f = \frac{343}{0.020485} \approx 16744 \, \text{Hz} \)

5. Frequently Asked Questions (FAQ)

Q: What is the relationship between wavelength and frequency?
A: Wavelength and frequency are inversely proportional: \( \lambda = \frac{v}{f} \). A higher frequency results in a shorter wavelength, and vice versa.

Q: Why does the speed of sound vary in different media?
A: The speed of sound depends on the medium’s density and elasticity. For example, sound travels faster in water (1481 m/s) than in air (343 m/s) due to water’s higher density and elasticity.

Q: What is the wavenumber used for?
A: Wavenumber (\( k = \frac{1}{\lambda} \)) is used in wave analysis to describe the spatial frequency of a wave, often in spectroscopy and acoustics.
