Total Dynamic Head (Static Suction Lift) Calculator

Static Suction Lift (\( h_l \)):

Static Discharge Head (\( h_d \)):

Friction Head (\( h_f \)):

1. What is a Total Dynamic Head (Static Suction Lift) Calculator?

Definition: This calculator computes the total dynamic head (\( TDH \)) for a centrifugal pump system under static suction lift conditions, where the pump is above the source of supply, based on static suction lift (\( h_l \)), static discharge head (\( h_d \)), and friction head (\( h_f \)).

Purpose: It is used in pump system design to determine the total head a centrifugal pump must overcome, aiding in pump selection, system sizing, and performance optimization.

2. How Does the Calculator Work?

The calculator uses the following formula for total dynamic head:

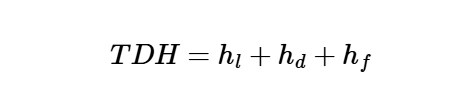

Total Dynamic Head: \[ TDH = h_l + h_d + h_f \]

Where:

\( TDH \): Total dynamic head (ft, m)
\( h_l \): Static suction lift (ft, m)
\( h_d \): Static discharge head (ft, m)
\( h_f \): Friction head (ft, m)

Unit Conversions:

Heads (\( TDH \), \( h_l \), \( h_d \), \( h_f \)): ft, m (1 m = 3.28084 ft; 1 ft = 0.3048 m)

Steps:

Enter the static suction lift (\( h_l \)), static discharge head (\( h_d \)), and friction head (\( h_f \)), and select their units.
Convert \( h_l \), \( h_d \), and \( h_f \) to ft.
Calculate the total dynamic head by summing the inputs.
Convert the result to the selected unit (ft or m).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Total Dynamic Head Calculation

Calculating the total dynamic head for static suction lift conditions is crucial for:

Pump System Design: Ensures the pump can overcome the total head required to move fluid from the source to the discharge point.
Pump Selection: Guides the selection of pumps with adequate head capacity for the system, ensuring reliable operation.
Energy Efficiency: Optimizes pump sizing to match system head requirements, reducing energy consumption.

4. Using the Calculator

Examples:

Example 1: For \( h_l = 5 \, \text{ft} \), \( h_d = 30 \, \text{ft} \), \( h_f = 29.11 \, \text{ft} \), total dynamic head in ft:
- \( TDH = 5 + 30 + 29.11 = 64.11 \)
- Since 64.11 < 10000 and > 0.00001, display with 5 decimal places: \( 64.11000 \)
Example 2: For \( h_l = 1.524 \, \text{m} \), \( h_d = 9.144 \, \text{m} \), \( h_f = 8.8703 \, \text{m} \), total dynamic head in m:
- Convert: \( h_l = 1.524 \times 3.28084 \approx 5 \, \text{ft} \)
- \( h_d = 9.144 \times 3.28084 \approx 30 \, \text{ft} \)
- \( h_f = 8.8703 \times 3.28084 \approx 29.11 \, \text{ft} \)
- \( TDH = 5 + 30 + 29.11 \approx 64.11 \, \text{ft} \)
- Convert to m: \( 64.11 \times 0.3048 \approx 19.541 \)
- Since 19.541 < 10000 and > 0.00001, display with 5 decimal places: \( 19.54100 \)
Example 3: For \( h_l = 3 \, \text{ft} \), \( h_d = 25 \, \text{ft} \), \( h_f = 15.5 \, \text{ft} \), total dynamic head in ft:
- \( TDH = 3 + 25 + 15.5 = 43.5 \)
- Since 43.5 < 10000 and > 0.00001, display with 5 decimal places: \( 43.50000 \)

5. Frequently Asked Questions (FAQ)

Q: What does total dynamic head for static suction lift represent?
A: Total dynamic head (\( TDH \)) represents the total equivalent height a centrifugal pump must overcome to move fluid from a source below the pump (suction lift) to the discharge point, including static suction lift, static discharge head, and friction losses.

Q: How can I determine the input parameters?
A: Static suction lift (\( h_l \)) is the vertical distance from the liquid source to the pump centerline (e.g., 5 ft). Static discharge head (\( h_d \)) is the vertical distance from the pump centerline to the discharge point (e.g., 30 ft). Friction head (\( h_f \)) is the head loss due to friction in pipes and fittings, calculated from system design (e.g., 29.11 ft).

Q: Why is total dynamic head calculation important in pump system design?
A: It ensures the pump can deliver the required head to meet system demands, optimizing pump selection, preventing cavitation, and ensuring efficient and reliable operation.
