Thermal Resistance Calculator

Thermal Conductivity (\( K \)):

Cross-Sectional Area (\( A \)):

Thickness of the Medium (\( \Delta X \)):

1. What is a Thermal Resistance Calculator?

Definition: This calculator computes the thermal resistance (\( R \)) to conduction heat transfer through a medium, using the formula derived from Fourier's Law.

Purpose: It is used in HVAC systems, building design, and thermal engineering to quantify resistance to heat flow through materials, aiding in insulation design and energy efficiency analysis.

2. How Does the Calculator Work?

The calculator uses the following formula for thermal resistance:

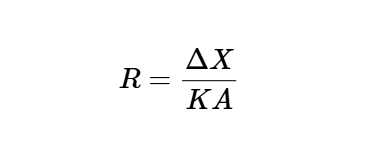

Thermal Resistance: \[ R = \frac{\Delta X}{K A} \]

Where:

\( R \): Thermal resistance (hr-°F/Btu, K/W)
\( \Delta X \): Thickness of the medium (ft, m)
\( K \): Thermal conductivity of the medium (Btu/hr-ft-°F, W/m-K)
\( A \): Cross-sectional area normal to heat flow (ft², m²)

Unit Conversions:

Thermal Conductivity (\( K \)): Btu/hr-ft-°F, W/m-K (1 W/m-K = 0.577789 Btu/hr-ft-°F)
Cross-Sectional Area (\( A \)): ft², m² (1 m² = 10.7639 ft²)
Thickness (\( \Delta X \)): ft, m (1 m = 3.28084 ft)
Thermal Resistance (\( R \)): hr-°F/Btu, K/W (1 hr-°F/Btu = 1.895634 K/W)

Steps:

Enter the thermal conductivity (\( K \)), cross-sectional area (\( A \)), and thickness (\( \Delta X \)), and select their units.
Convert thermal conductivity to Btu/hr-ft-°F, area to ft², and thickness to ft.
Calculate the thermal resistance using the formula.
Convert the result to the selected unit (hr-°F/Btu or K/W).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Thermal Resistance Calculation

Calculating thermal resistance is crucial for:

HVAC Design: Determines the resistance to heat flow through building components, aiding in the sizing of heating and cooling systems.
Energy Efficiency: Helps evaluate insulation materials to minimize heat loss or gain, reducing energy consumption.
Thermal Comfort: Ensures indoor environments maintain comfortable temperatures by optimizing material selection.

4. Using the Calculator

Examples:

Example 1: For \( \Delta X = 2 \, \text{ft} \), \( K = 1.7 \, \text{Btu/hr-ft-°F} \), \( A = 12 \, \text{ft²} \), thermal resistance in hr-°F/Btu:
- \( R = \frac{2}{1.7 \times 12} \)
- \( R = \frac{2}{20.4} \approx 0.098039 \)
- Since 0.098039 < 10000 and > 0.00001, display with 5 decimal places: \( 0.09804 \)
Example 2: For \( \Delta X = 0.1 \, \text{m} \), \( K = 2.5 \, \text{W/m-K} \), \( A = 1.5 \, \text{m²} \), thermal resistance in K/W:
- Convert: \( \Delta X = 0.1 \times 3.28084 = 0.328084 \, \text{ft} \), \( K = 2.5 \times 0.577789 = 1.4444725 \, \text{Btu/hr-ft-°F} \), \( A = 1.5 \times 10.7639 = 16.14585 \, \text{ft²} \)
- \( R = \frac{0.328084}{1.4444725 \times 16.14585} \)
- \( R \approx \frac{0.328084}{23.32374} \approx 0.014068 \, \text{hr-°F/Btu} \)
- Convert to K/W: \( 0.014068 \times 1.895634 \approx 0.026682 \)
- Since 0.026682 < 10000 and > 0.00001, display with 5 decimal places: \( 0.02668 \)
Example 3: For \( \Delta X = 0.5 \, \text{ft} \), \( K = 1.2 \, \text{Btu/hr-ft-°F} \), \( A = 10 \, \text{ft²} \), thermal resistance in hr-°F/Btu:
- \( R = \frac{0.5}{1.2 \times 10} \)
- \( R = \frac{0.5}{12} \approx 0.041667 \)
- Since 0.041667 < 10000 and > 0.00001, display with 5 decimal places: \( 0.04167 \)

5. Frequently Asked Questions (FAQ)

Q: What does thermal resistance represent?
A: Thermal resistance (\( R \)) quantifies a material's ability to resist heat flow. Higher values indicate better insulation, reducing heat transfer.

Q: Why is thermal resistance important in HVAC design?
A: It helps engineers select materials to minimize heat loss or gain, ensuring efficient heating and cooling systems and maintaining thermal comfort.

Q: How can I find the thermal conductivity of a material?
A: Thermal conductivity (\( K \)) can be found in material property tables, manufacturer data, or through experimental measurements for materials like insulation, concrete, or wood.
