Surface Effectiveness Calculator for HVAC Systems

Surface Effectiveness Calculator

Total Surface Area (\( A \)):

Fin Base Area (\( A_b \)):

Fin Surface Area (\( A_s \)):

Fin Efficiency (\( \phi \)):

1. What is a Surface Effectiveness Calculator?

Definition: This calculator computes the fin effectiveness (\( \varepsilon \)) and surface effectiveness (\( \varepsilon_s \)) of a finned surface, accounting for partial fin coverage and fin efficiency.

Purpose: It is used in HVAC systems to optimize fin design in radiators and heat exchangers, balancing material costs and heat transfer enhancement.

2. How Does the Calculator Work?

The calculator uses the following formulas for surface effectiveness:

Fin Effectiveness: \[ \varepsilon = \frac{\phi A_s}{A_b} \]

Surface Effectiveness: \[ \varepsilon_s = 1 + (\varepsilon - 1) \frac{A_b}{A} \]

Where:

\( \varepsilon \): Fin effectiveness (dimensionless, >1)
\( \varepsilon_s \): Surface effectiveness (dimensionless, >1)
\( \phi \): Fin efficiency (dimensionless, 0 to 1)
\( A \): Total surface area (ft², in², m²)
\( A_b \): Area covered by fin base (ft², in², m²)
\( A_s \): Fin surface area (ft², in², m²)

Unit Conversions:

Areas (\( A \), \( A_b \), \( A_s \)): ft², in² (1 in² = \( \frac{1}{144} \) ft²), m² (1 m² = 10.7639 ft²)

Steps:

Enter the total surface area (\( A \)), fin base area (\( A_b \)), fin surface area (\( A_s \)), and fin efficiency (\( \phi \)), and select the units for the areas.
Convert \( A \), \( A_b \), and \( A_s \) to ft².
Validate that \( A_b \leq A \), \( A_s \geq 0 \), \( 0 \leq \phi \leq 1 \), and \( A_b \neq 0 \).
Calculate the fin effectiveness using the new formula \( \varepsilon = \frac{\phi A_s}{A_b} \).
Calculate the surface effectiveness using the provided formula.
Validate that \( \varepsilon_s > 1 \).
Display \( \varepsilon \) and \( \varepsilon_s \), using scientific notation for values less than 0.001, otherwise with 4 decimal places.

3. Importance of Surface Effectiveness Calculation

Calculating surface effectiveness is crucial for:

HVAC Design: Optimizes fin design in radiators and heat exchangers, ensuring efficient heat transfer.
Energy Efficiency: Balances material costs and heat transfer enhancement, reducing energy consumption.
System Performance: Ensures effective thermal management in heating and cooling systems.

4. Using the Calculator

Examples:

Example 1: For \( A = 10 \, \text{ft}^2 \), \( A_b = 2 \, \text{ft}^2 \), \( A_s = 8 \, \text{ft}^2 \), \( \phi = 0.9 \):
- Fin Effectiveness: \( \varepsilon = \frac{0.9 \times 8}{2} = \frac{7.2}{2} = 3.6000 \)
- Surface Effectiveness: \( \varepsilon_s = 1 + (3.6 - 1) \times \frac{2}{10} = 1 + 2.6 \times 0.2 = 1 + 0.52 = 1.5200 \)
Example 2: For \( A = 100 \, \text{ft}^2 \), \( A_b = 40 \, \text{ft}^2 \), \( A_s = 60 \, \text{ft}^2 \), \( \phi = 0.85 \):
- Fin Effectiveness: \( \varepsilon = \frac{0.85 \times 60}{40} = \frac{51}{40} = 1.2750 \)
- Surface Effectiveness: \( \varepsilon_s = 1 + (1.275 - 1) \times \frac{40}{100} = 1 + 0.275 \times 0.4 = 1 + 0.11 = 1.1100 \)

5. Frequently Asked Questions (FAQ)

Q: What is surface effectiveness?
A: Surface effectiveness (\( \varepsilon_s \)) is a dimensionless quantity that measures the enhancement in heat transfer of a finned surface, accounting for partial fin coverage, typically greater than 1 for effective fins.

Q: Why is surface effectiveness important in HVAC systems?
A: It helps optimize the design of radiators and heat exchangers, ensuring efficient heat transfer and cost-effective use of materials.

Q: How do I determine the fin efficiency (\( \phi \))?

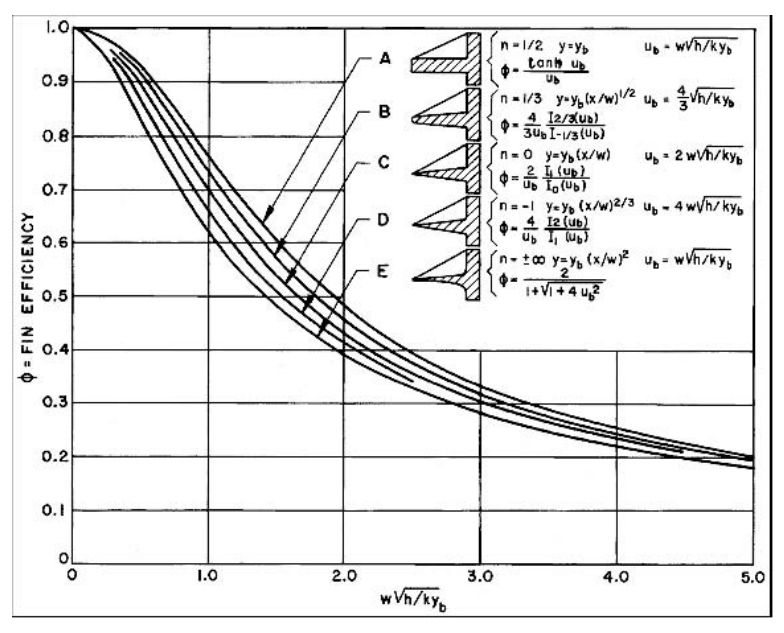

A: Fin efficiency depends on the fin geometry, material properties, and heat transfer conditions, and can be obtained from engineering charts (e.g., Fig. 1-12) or calculated using standard correlations.
