Sensible Heat Factor (SHF) Calculator

1. What is a Sensible Heat Factor (SHF) Calculator?

Definition: This calculator computes the sensible heat factor (\( SHF \)), which is the ratio of sensible heat load to the total heat load (sensible plus latent heat), in a cooling or heating process.

Purpose: It is used in HVAC systems to determine the proportion of sensible heat in the total heat load, aiding in the design of air conditioning systems and understanding the balance between temperature and humidity control.

2. How Does the Calculator Work?

The calculator uses the following formula for the sensible heat factor:

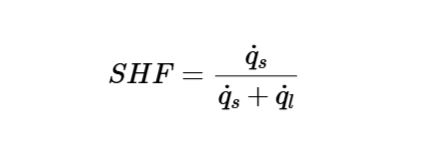

Sensible Heat Factor: \[ SHF = \frac{\dot{q}_s}{\dot{q}_s + \dot{q}_l} \]

Where:

\( SHF \): Sensible heat factor (dimensionless)
\( \dot{q}_s \): Sensible heat load (Btu/hr, kW)
\( \dot{q}_l \): Latent heat load (Btu/hr, kW)

Unit Conversions:

Heat Loads (\( \dot{q}_s \), \( \dot{q}_l \)): Btu/hr, kW (1 kW = 3412.14 Btu/hr)

Steps:

Enter the sensible heat load (\( \dot{q}_s \)) and latent heat load (\( \dot{q}_l \)), and select their units.
Convert heat loads to Btu/hr.
Calculate the sensible heat factor using the formula.
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001 (though \( SHF \) is typically between 0 and 1).

3. Importance of Sensible Heat Factor Calculation

Calculating the sensible heat factor is crucial for:

HVAC Design: Determines the balance between sensible and latent heat loads, aiding in the selection and sizing of cooling or heating equipment.
Energy Efficiency: Helps optimize system performance by ensuring the correct proportion of sensible and latent cooling or heating is addressed.
System Performance: Ensures the system can achieve the desired temperature and humidity levels for comfort or process requirements by understanding the heat load distribution.

4. Using the Calculator

Examples:

Example 1: For \( \dot{q}_s = 120000 \, \text{Btu/hr} \), \( \dot{q}_l = 30000 \, \text{Btu/hr} \):
- \( SHF = \frac{120000}{120000 + 30000} \)
- \( SHF = \frac{120000}{150000} = 0.80000 \)
- Since 0.80000 < 10000 and > 0.00001, display with 5 decimal places: \( 0.80000 \)
Example 2: For \( \dot{q}_s = 50 \, \text{kW} \), \( \dot{q}_l = 20 \, \text{kW} \):
- Convert: \( \dot{q}_s = 50 \times 3412.14 = 170607 \, \text{Btu/hr} \), \( \dot{q}_l = 20 \times 3412.14 = 68242.8 \, \text{Btu/hr} \)
- \( SHF = \frac{170607}{170607 + 68242.8} \)
- \( SHF = \frac{170607}{238849.8} \approx 0.71429 \)
- Since 0.71429 < 10000 and > 0.00001, display with 5 decimal places: \( 0.71429 \)
Example 3: For \( \dot{q}_s = 0 \, \text{Btu/hr} \), \( \dot{q}_l = 100 \, \text{Btu/hr} \):
- \( SHF = \frac{0}{0 + 100} = 0.00000 \)
- Since 0.00000 < 0.00001, use scientific notation: \( 0.00000e+0 \)

5. Frequently Asked Questions (FAQ)

Q: What does the sensible heat factor represent in HVAC systems?
A: The sensible heat factor (\( SHF \)) represents the proportion of sensible heat (temperature change) to the total heat load (sensible plus latent heat, which includes humidity change), indicating the balance between temperature and humidity control in a process.

Q: Why is the sensible heat factor typically between 0 and 1?
A: The \( SHF \) is a ratio of sensible heat to total heat, so it ranges from 0 (all latent heat, no temperature change) to 1 (all sensible heat, no humidity change), depending on the process conditions.

Q: How can I determine the sensible and latent heat loads for my system?
A: Sensible and latent heat loads can be calculated using psychrometric equations, measured using HVAC design software, or estimated based on temperature and humidity changes in the air stream, often derived from psychrometric charts or field measurements.
