Pump Laws Head Calculator

1. What is a Pump Laws Head Calculator?

Definition: This calculator predicts the change in pump head (\( head_x \)) when the pump's rotation speed changes from a known speed (\( rpm_y \)) to a new speed (\( rpm_x \)), with constant impeller diameter, based on the pump laws.

Purpose: It is used in pump system design to estimate how changes in pump speed affect head, aiding in system adjustments, pump selection, and performance optimization.

2. How Does the Calculator Work?

The calculator uses the following formula for pump head:

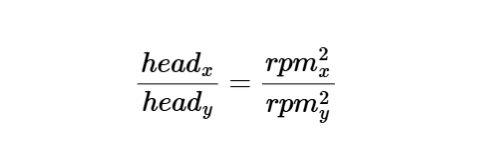

Pump Head: \[ \frac{head_x}{head_y} = \frac{rpm_x^2}{rpm_y^2} \] or \[ head_x = head_y \times \frac{rpm_x^2}{rpm_y^2} \]

Where:

\( head_x \): New head (ft, m)
\( head_y \): Known head (ft, m)
\( rpm_x \): New rotation speed (rpm)
\( rpm_y \): Known rotation speed (rpm)

Unit Conversions:

Heads (\( head_x \), \( head_y \)): ft, m (1 m = 3.28084 ft; 1 ft = 0.3048 m)

Steps:

Enter the known head (\( head_y \)), known rotation speed (\( rpm_y \)), and new rotation speed (\( rpm_x \)), and select the head unit.
Convert \( head_y \) to ft.
Calculate the new head using the formula.
Convert the result to the selected unit (ft or m).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Pump Laws Head Calculation

Calculating the change in pump head due to speed changes is crucial for:

Pump System Adjustments: Allows engineers to predict how speed changes affect head, enabling precise system tuning.
System Safety: Ensures the pump head remains within system limits, preventing overpressure or insufficient performance.
System Design: Supports the selection of pumps and variable speed drives to achieve desired performance.

4. Using the Calculator

Examples:

Example 1: For \( head_y = 42 \, \text{ft} \), \( rpm_y = 1150 \, \text{rpm} \), \( rpm_x = 1750 \, \text{rpm} \), new head in ft:
- \( head_x = 42 \times \frac{1750^2}{1150^2} \approx 42 \times \frac{3062500}{1322500} \approx 42 \times 2.3157 \approx 97.258 \)
- Since 97.258 < 10000 and > 0.00001, display with 5 decimal places: \( 97.25800 \)
- Note: The calculated value (97.258 ft) is close to the example output of 97 ft, with minor differences likely due to rounding in the original example.
Example 2: For \( head_y = 12.8016 \, \text{m} \), \( rpm_y = 1150 \, \text{rpm} \), \( rpm_x = 1750 \, \text{rpm} \), new head in m:
- Convert: \( head_y = 12.8016 \times 3.28084 \approx 42 \, \text{ft} \)
- \( head_x = 42 \times \frac{1750^2}{1150^2} \approx 97.258 \, \text{ft} \)
- Convert to m: \( 97.258 \times 0.3048 \approx 29.644 \)
- Since 29.644 < 10000 and > 0.00001, display with 5 decimal places: \( 29.64400 \)
Example 3: For \( head_y = 50 \, \text{ft} \), \( rpm_y = 1200 \, \text{rpm} \), \( rpm_x = 1500 \, \text{rpm} \), new head in ft:
- \( head_x = 50 \times \frac{1500^2}{1200^2} \approx 50 \times \frac{2250000}{1440000} \approx 50 \times 1.5625 \approx 78.125 \)
- Since 78.125 < 10000 and > 0.00001, display with 5 decimal places: \( 78.12500 \)

5. Frequently Asked Questions (FAQ)

Q: What does the pump laws head calculation represent?
A: The pump laws head calculation predicts the new head (\( head_x \)) of a centrifugal pump when its rotation speed changes, assuming a constant impeller diameter, based on the quadratic relationship between head and speed.

Q: How can I determine the input parameters?
A: Known head (\( head_y \)) is the current pump head (e.g., 42 ft). Known rotation speed (\( rpm_y \)) is the current pump speed (e.g., 1150 rpm). New rotation speed (\( rpm_x \)) is the desired or adjusted pump speed (e.g., 1750 rpm).

Q: Why is the pump laws head calculation important in pump system design?
A: It allows engineers to predict and adjust pump performance for varying operating conditions, ensuring appropriate head delivery, optimizing system safety, and supporting reliable operation.
