Pump Head from Pressure Calculator

1. What is a Pump Head from Pressure Calculator?

Definition: This calculator converts pump pressure (\( P \)) to head (\( h \)) in feet or meters of liquid for a centrifugal pump, accounting for the specific gravity (\( s \)) of the liquid.

Purpose: It is used in pump system design to determine the equivalent head a centrifugal pump must generate to achieve a given pressure, aiding in pump selection and system performance optimization.

2. How Does the Calculator Work?

The calculator uses the following formula for pump head:

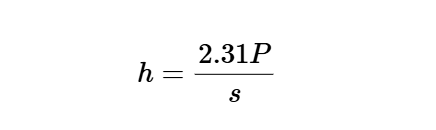

Pump Head: \[ h = \frac{2.31 P}{s} \]

Where:

\( h \): Head (ft, m)
\( P \): Pressure (psi, Pa)
\( s \): Specific gravity of the liquid (dimensionless)

Unit Conversions:

Pressure (\( P \)): psi, Pa (1 Pa = 0.000145038 psi)
Head (\( h \)): ft, m (1 ft = 0.3048 m)

Steps:

Enter the pressure (\( P \)) and specific gravity (\( s \)), and select the pressure unit.
Convert \( P \) to psi.
Calculate the pump head using the formula with the constant 2.31.
Convert the result to the selected unit (ft or m).
Display the result with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001.

3. Importance of Pump Head Calculation

Calculating pump head from pressure is crucial for:

Pump System Design: Ensures the pump can deliver the required head to meet system pressure demands.
Energy Efficiency: Optimizes pump selection to match system requirements, reducing energy consumption.
System Performance: Supports reliable operation by ensuring adequate flow and pressure in fluid systems.

4. Using the Calculator

Examples:

Example 1: For \( P = 10 \, \text{psi} \), \( s = 1.00 \), head in ft:
- \( h = \frac{2.31 \times 10}{1.00} = 23.1 \)
- Since 23.1 < 10000 and > 0.00001, display with 5 decimal places: \( 23.10000 \)
Example 2: For \( P = 68947.6 \, \text{Pa} \), \( s = 1.00 \), head in m:
- Convert: \( P = 68947.6 \times 0.000145038 \approx 10 \, \text{psi} \)
- \( h = \frac{2.31 \times 10}{1.00} \approx 23.1 \, \text{ft} \)
- Convert to m: \( 23.1 \times 0.3048 \approx 7.04088 \)
- Since 7.04088 < 10000 and > 0.00001, display with 5 decimal places: \( 7.04088 \)
Example 3: For \( P = 15 \, \text{psi} \), \( s = 0.85 \), head in ft:
- \( h = \frac{2.31 \times 15}{0.85} \approx \frac{34.65}{0.85} \approx 40.7647 \)
- Since 40.7647 < 10000 and > 0.00001, display with 5 decimal places: \( 40.76470 \)

5. Frequently Asked Questions (FAQ)

Q: What does pump head from pressure represent?
A: Pump head (\( h \)) quantifies the height of a liquid column that a centrifugal pump can support, equivalent to a given pressure, adjusted for the liquid's specific gravity.

Q: How can I determine the input parameters?
A: Pressure (\( P \)) is measured or specified for the pump system (e.g., 10 psi). Specific gravity (\( s \)) is determined from the liquid's properties (e.g., 1.00 for water, 0.85 for some oils).

Q: Why is pump head calculation important in pump system design?
A: It ensures the pump can deliver the necessary head to meet system pressure requirements, optimizing performance, efficiency, and reliability.
