Number of Filter Units Required Calculator

Total Required Air Flow Rate (\( Q_{\text{total}} \)):

Adjusted Flow Rate per Filter Unit (\( Q_n \)):

1. What is a Number of Filter Units Required Calculator?

Definition: This calculator computes the number of filter units (\( n \)) needed to handle a total air flow rate, based on the adjusted flow rate per filter unit.

Purpose: It is used in HVAC system design to determine the quantity of filter units required to achieve the desired air flow rate, ensuring proper filtration and system performance.

2. How Does the Calculator Work?

The calculator uses the following formula for the number of filter units:

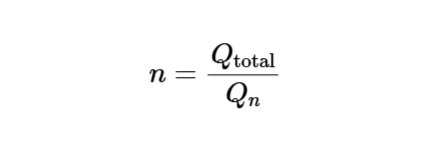

Number of Filter Units: \[ n = \frac{Q_{\text{total}}}{Q_n} \]

Where:

\( n \): Number of filter units
\( Q_{\text{total}} \): Total required air flow rate (cfm, m³/s, L/s)
\( Q_n \): Adjusted flow rate per filter unit (cfm, m³/s, L/s)

Unit Conversions:

Air Flow Rates (\( Q_{\text{total}} \), \( Q_n \)): cfm, m³/s (1 m³/s = 2118.88 cfm), L/s (1 L/s = 2.11888 cfm)

Steps:

Enter the total required air flow rate (\( Q_{\text{total}} \)) and adjusted flow rate per filter unit (\( Q_n \)), and select their units.
Convert both flow rates to cfm.
Calculate the exact number of filter units using the formula.
Round the result to the nearest whole number for practical use.
Display both the exact result (with 5 decimal places, or in scientific notation if the value is greater than 10,000 or less than 0.00001) and the rounded result.

3. Importance of Number of Filter Units Required Calculation

Calculating the number of filter units required is crucial for:

System Design: Ensures the HVAC system has enough filter units to handle the total air flow, maintaining air quality and system efficiency.
Cost Estimation: Helps estimate the number of filters needed for procurement and installation, aiding in budgeting and planning.
Performance Optimization: Prevents under- or over-sizing of filtration capacity, which can affect pressure drops, energy consumption, and filter lifespan.

4. Using the Calculator

Examples:

Example 1: For \( Q_{\text{total}} = 40000 \, \text{cfm} \), \( Q_n = 1125 \, \text{cfm} \), number of filter units:
- \( n = \frac{40000}{1125} \)
- \( n \approx 35.55556 \)
- Exact: Since 35.55556 < 10000 and > 0.00001, display with 5 decimal places: \( 35.55556 \)
- Rounded: \( 36 \)
Example 2: For \( Q_{\text{total}} = 10 \, \text{m³/s} \), \( Q_n = 0.5 \, \text{m³/s} \), number of filter units:
- Convert: \( Q_{\text{total}} = 10 \times 2118.88 = 21188.8 \, \text{cfm} \), \( Q_n = 0.5 \times 2118.88 = 1059.44 \, \text{cfm} \)
- \( n = \frac{21188.8}{1059.44} \)
- \( n \approx 20.00000 \)
- Exact: Since 20.00000 < 10000 and > 0.00001, display with 5 decimal places: \( 20.00000 \)
- Rounded: \( 20 \)
Example 3: For \( Q_{\text{total}} = 100 \, \text{L/s} \), \( Q_n = 1 \, \text{L/s} \), number of filter units:
- Convert: \( Q_{\text{total}} = 100 \times 2.11888 = 211.888 \, \text{cfm} \), \( Q_n = 1 \times 2.11888 = 2.11888 \, \text{cfm} \)
- \( n = \frac{211.888}{2.11888} \)
- \( n \approx 100.00000 \)
- Exact: Since 100.00000 < 10000 and > 0.00001, display with 5 decimal places: \( 100.00000 \)
- Rounded: \( 100 \)

5. Frequently Asked Questions (FAQ)

Q: Why might the exact number of filter units not be a whole number?
A: The exact number of filter units (\( n \)) is a mathematical result and may not be a whole number because the total flow rate may not be perfectly divisible by the flow rate per filter. Rounding to the nearest whole number provides a practical number of units to install.

Q: What does the adjusted flow rate per filter unit represent?
A: The adjusted flow rate per filter unit (\( Q_n \)) is the air flow rate that a single filter can handle under specific operating conditions (e.g., a new pressure drop), often calculated based on the filter's rated flow and pressure drop.

Q: How can I determine the total required air flow rate for my system?
A: The total required air flow rate (\( Q_{\text{total}} \)) can be determined from HVAC system design specifications, ventilation requirements (e.g., ASHRAE standards), or measured using airflow sensors in the system.
